Description
Hard Numbers: Technical Specifications
- Output Channels: 8 independent analog output channels
- Signal Types: Configurable per channel (4–20 mA current loop or 0–10 VDC voltage)
- Resolution: 12-bit or higher (depending on specific configuration)
- Accuracy: ±0.1% of full scale
- Update Rate: ≤ 10 milliseconds per channel
- Load Capacity: ≤ 600 Ω (for 4–20 mA), ≥ 2 kΩ (for 0–10 VDC)
- Isolation: Optical isolation between channels and from ground
- Communication: MicroNet proprietary backplane bus
- Power Supply: 18–32 VDC (24 VDC nominal via backplane)
- Power Consumption: Approx. 15–25 W
- Operating Temperature: -40°C to +70°C (-40°F to +158°F)
- Storage Temperature: -40°C to +85°C
- Humidity: 5%–95% relative humidity, non-condensing
- Dimensions: 160 mm × 160 mm × 120 mm (approx. 6.3″ × 6.3″ × 4.7″)
- Weight: Approx. 0.91 kg (2.0 lbs)
- Diagnostics: Built-in fault monitoring, open-circuit detection, and channel status LEDs
- Mounting: Rack-mounted chassis, DIN rail, or panel mount compatible

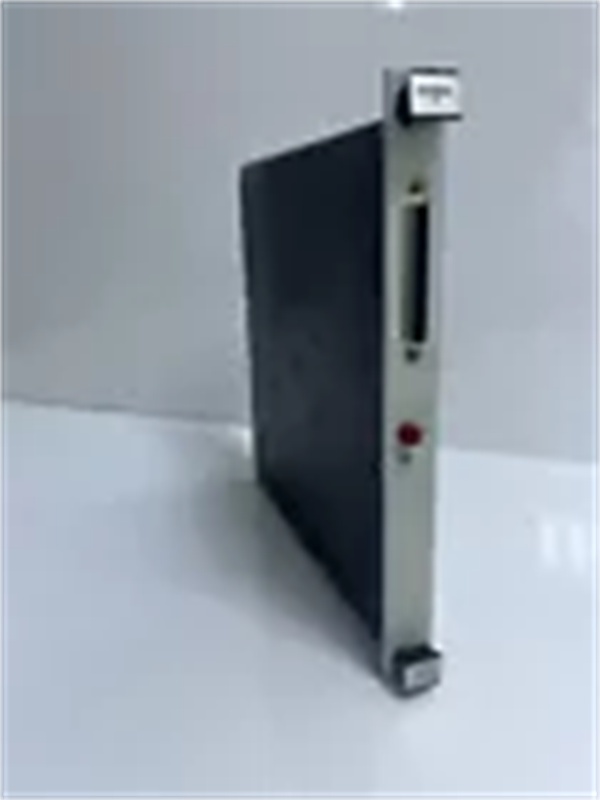

WOODWARD 5464-648
The Real-World Problem It Solves
In complex power generation or oil & gas compression facilities, sending imprecise or “noisy” control signals to heavy machinery can lead to inefficient operation, excessive wear, or catastrophic trips. The Woodward 5464-648 acts as the crucial bridge between the digital brain of the MicroNet controller and the analog muscles of the field equipment.
By providing eight highly isolated and configurable output channels, this module ensures that critical instructions—such as positioning a steam turbine’s inlet guide vanes or adjusting a gas fuel valve—are executed with pinpoint accuracy and minimal latency. Its robust design eliminates signal drift and electrical interference, ensuring that what the controller commands is exactly what the actuator receives, thereby optimizing combustion efficiency and extending the mechanical life of the prime movers.
Where you’ll typically find it:
- In the local control cabinets of Frame 7EA/9E gas turbines, driving liquid fuel bypass valves and compressor anti-surge valves.
- Mounted within the DCS/PLC panels of combined cycle power plants, interfacing with variable frequency drives (VFDs) for boiler feedwater pumps.
- On offshore oil platforms, controlling the pitch of wind turbine blades or the throttle of emergency diesel generators.
Hardware Architecture & Under-the-Hood Logic
Unlike basic analog output cards that suffer from signal crosstalk and slow update rates, the 5464-648 is engineered for high-speed, deterministic control in noisy industrial environments.
- Precision D/A Conversion: At its core, the module utilizes high-resolution Digital-to-Analog Converters (DACs) monitored by a dedicated onboard microcontroller. This ensures that digital control algorithms from the main CPU are translated into smooth, glitch-free analog signals.
- Channel-to-Channel Isolation: Each of the eight output channels is electrically isolated from the others and from the system ground. This prevents a short circuit or ground loop on one channel (e.g., a failed 4-20mA transmitter) from dragging down or corrupting the signals on the other seven channels.
- Deterministic Backplane Communication: The module communicates with the main CPU via the high-speed MicroNet backplane. It features a double-buffered output register, meaning the CPU can update all eight outputs simultaneously without causing mid-scan jitters that could momentarily confuse an external drive.
- Integrated Health Monitoring: The onboard intelligence continuously verifies the integrity of the output signals against the commanded values. If a wire breaks on a 4-20mA loop, the module detects the open circuit instantly and flags a fault to the CPU, preventing the attached valve from failing into an unsafe position.
WOODWARD 5464-648
Field Service Pitfalls: What Rookies Get Wrong
The “Phantom Trip” Caused by Shared Commons
Rookies often try to save panel space by daisy-chaining the 0V (common) return wires of multiple 4-20mA loops through a single terminal block. Because the 5464-648 features isolated outputs, tying their commons together creates a subtle ground loop. When a large motor starts elsewhere in the plant, the ground potential shifts, causing a momentary spike in the analog signal that tricks the turbine’s protective logic into thinking there’s an overspeed or overpressure condition.
- Field Rule: Always run dedicated, isolated return wires for each 4-20mA output back to the module’s designated channel terminals. Never jumper the commons together unless the specific wiring diagram explicitly calls for a “loop-powered” shared ground architecture.
Letting Magic Smoke Out with 0-10VDC Overloads
When configuring a channel for 0-10VDC output to drive a vintage analog speed potentiometer, rookies often neglect to check the input impedance of the receiving device. If the receiving device draws more than the rated current (e.g., loading the output with less than 2 kΩ), the 5464-648’s output driver will overheat and fail.
- Quick Fix: Before energizing a new 0-10VDC output circuit, measure the resistance of the field device. If it’s below 2 kΩ, you must install a signal isolator/repeater buffer between the Woodward module and the field device to protect the module’s delicate output stage.
Ignoring the “Last Value on Failure” Default
During a scheduled shutdown or a system reset, the main CPU stops sending updates to the 5464-648. Rookies assume the outputs will safely drop to 0 mA or 0 V. However, depending on the MicroNet GAP (Graphical Application Programmer) configuration, the module might be programmed to “Hold Last State” or “Ramp to a Default Value” upon loss of communication.
- Field Rule: Always verify the “Fail-Safe” or “Default” behavior of the analog outputs in the software configuration beforeperforming maintenance. If the valve controlling the fuel gas needs to go to 0% (closed) when communication is lost, ensure the module’s “Safe State” is configured accordingly, or you might accidentally leave a fuel valve cracked open during a system reboot.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
