Description
Product Core Brief

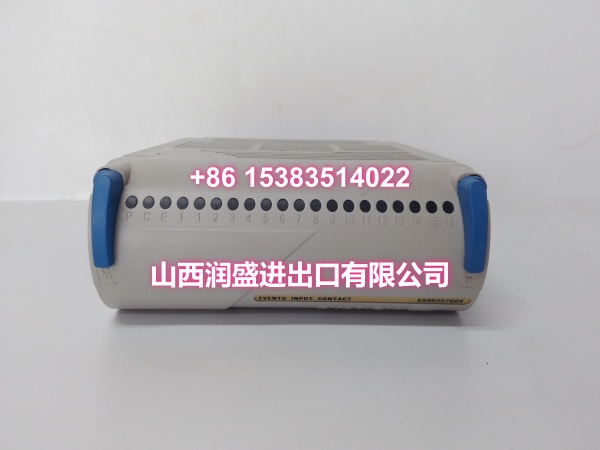

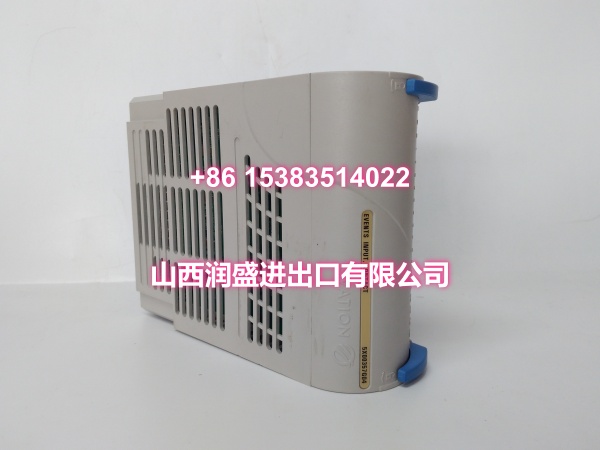

- Model: 5X00357G04
- Brand: Westinghouse / Emerson Ovation heritage
- Core Function: Listed at least five completely different ways online, which is the single biggest risk with this number
- Listing One: A high performance analog isolator for Emerson Ovation that isolates and amplifies field analog signals into a standard 4 to 20mA signal, with HART support for two way communication and diagnostics
- Listing Two: A simulated controller license that replaces real hardware I/O with a simulated I/O system for factory acceptance testing and process model validation
- Listing Three: An analog input module that collects remote field analog signals and sends them over an RS-485 bus using Modbus RTU to a computer
- Listing Four: A controller input contact module, mixed with unrelated fiber optic pressure sensor copy
- Listing Five: A generic power supply or AI or AO DCS module sold under a broad Westinghouse Ovation, WDPF and WEStation parts list
- Condition: New Surplus / Pulled Used, nameplate photo, rack photo and configuration export required
Product Introduction
Westinghouse 5X00357G04 is one of the most badly mislabeled numbers in the Ovation spare world, and almost none of the claims come from a factory datasheet.
The most detailed story says it is a high performance analog isolator used in Emerson Ovation, isolating and amplifying field analog signals into 4 to 20mA, with high accuracy and high isolation, HART support for two way communication and higher level diagnostics and calibration, four channels, 24V DC supply, under 10W draw, screw terminals, DIN rail mounting and part of an Ovation HART analog I/O family that also includes analog output modules, analog input modules and analog limiters That reads plausible until you notice the IP66 rating and the wide temperature range, which do not fit typical control room Ovation hardware habits.
A completely different story calls it a simulated controller that uses a simulated I/O system instead of real hardware I/O, connecting control schemes to process models for basic factory acceptance testing and high fidelity plant model validation If that is what your team is looking for, you need a software license, not a board in a box.
A third story describes an analog input module that gathers remote analog signals and pushes them over RS-485 to a computer, supporting Modbus RTU configuration software, multiple modules on one bus with address codes, and sometimes hot swap and surge protection That is generic Chinese remote I/O copy, not Ovation controller backplane hardware.
A fourth page sells it as a controller input contact module and then fills the description with diaphragm based non-contact pressure measurement and fiber optic pressure sensor text, which has nothing to do with Ovation at all Another just lumps it into a giant Westinghouse Ovation, WDPF and WEStation spare list as a power supply or analog module
The real Ovation architecture helps you cut through it. Ovation I/O uses a DIN rail mounted base that holds four modules, with field terminals, built in I/O bus communication, position based automatic addressing, redundant power distribution, built in fuses and no interconnect cables between bases, and each I/O module is an electronic module plus a personality or cavity plug that converts field signals into data for the controller, with surge protection, fuse protection and hot swap support So if your part is truly Ovation hardware, it almost certainly lives inside that electronic plus personality structure, not as a standalone RS-485 Modbus box.
Decide your symptom first. A dead analog point on one slot points to the electronic module, its personality module, the base, the fuse or field wiring. Lost data from an external system points to a gateway, mapping or network problem. A failed test environment points to a simulated controller license, not hardware.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 5X00357G04 |
| Brand Grouping | Westinghouse, Emerson Ovation heritage |
| Claim One | High performance analog isolator for Ovation, isolating and amplifying analog signals to 4 to 20mA with HART support |
| Claimed Specs On That Listing | 4 channels, 250 ohm input and output impedance, 24V DC, under 10W, screw terminals, DIN rail mount |
| Claim Two | Simulated controller license replacing real hardware I/O for FAT and process model validation |
| Claim Three | Analog input module sending field analog signals over RS-485 with Modbus RTU |
| Claim Four | Controller input contact module mixed with fiber optic pressure sensor text |
| Ovation I/O Structure | DIN rail base holding four modules, field terminals, built in I/O bus communication, position addressing, redundant power distribution, built in fuse holders |
| Ovation Module Structure | Electronic module plus personality module or cavity plug, surge suppression, fuse protection against field short circuits, hot swap capable |
| Ovation Module Range | Digital and analog input and output, contact input, RTD input, pulse accumulator or counter, HART input and output, FOUNDATION Fieldbus, Profibus, DeviceNet, Ethernet and serial link controller modules |
| Configuration Dependency | Ovation version, card file or I/O configuration, electronic module plus personality pairing, base model, channel mapping, scaling, HART host setup |
| Common Failure Signs | Dead analog point, drifting reading, open loop alarm, blown base fuse, ground fault, missing HART variable, lost external data |
| Verification Method | Nameplate photo, rack or DIN rail photo, Ovation version, configuration export, base and personality part numbers, cabinet drawing |
No confirmed factory datasheet is publicly available under this number, so treat every catalog blurb as a lead until it matches your own project files.
Quality Control Process
This part gets verified against your own documentation before any money moves.
- Nameplate and suffix check. Confirm it really is G04, since G03 gets listed as an Ovation DCS module providing an interface between field signals and the controller backplane with backplane power and hot swap serviceability
- Decide hardware, license or gateway first. If your need is a test environment, you are looking for a simulated controller license rather than a board
- Rule out the RS-485 story. If a seller insists on Modbus RTU over RS-485 to a computer, that is generic remote I/O, not Ovation backplane hardware
- Confirm the personality module. Ovation modules pair an electronic module with a personality module or cavity plug, and the wrong pairing produces wrong signals rather than no signals
- Check the base and fuse. Ovation bases include built in fuse holders and redundant power distribution, so a dead channel can be a base or fuse issue rather than the card
- Pull the configuration export. Confirm slot, module type, channel mapping and scaling before installing anything.
- Scan points out of service. Take affected loops out of service before the swap and restore them afterward.
- Verify hot swap conditions. Ovation modules are described as hot swappable without interrupting system power or using mechanical tools, but only do this when redundancy and configuration support it
- Use the official lookup tool. Emerson publishes the Ovation Mobile Help app that scans an Ovation electronics module part number and returns module descriptions, valid module combinations, wiring diagrams, diagnostic LED info and component specifications
- ESD bag with desiccant. Pulled boards stored in humid warehouses often fail silently months later.
I once watched a plant buy an analog isolator for this number after reading a detailed spec page, only to find the drifting point came from a corroded field terminal and a marginal loop supply. The board was never the problem.
Replacement Pitfall Guide
❗ Believing the analog isolator spec sheet. Four channels, 24V DC, DIN rail, IP66 and HART all appear on one reseller page, but the combination looks written rather than published
❗ Confusing hardware with a license. A simulated controller replaces real hardware I/O with simulation for FAT and model validation, and no board will solve that need
❗ Believing the RS-485 Modbus story. Analog to 485 conversion with address coded modules on one bus is generic remote I/O copy
❗ Reading the contact module page. Descriptions that jump into fiber optic pressure sensing and optical cavity length are unrelated filler
❗ Ignoring the personality module. Wrong pairing sends signals to the wrong point, which is far more dangerous than a dead channel.
❗ Skipping the base and fuse check. Built in fuses and power distribution inside the base can be the real fault
❗ Trusting flat warranties and sealed box claims. One year warranties, original packaging and instant stock are catalog habits, not proof of verified hardware
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| 5X00357G04 | Refurbished same part | Needs Verification | Confirm nameplate, mounting style, power source and signal behavior |
| 5X00357G04 | 5X00357G03 | Needs Verification | Listed as an Ovation DCS module interfacing field signals to the controller backplane with hot swap serviceability |
| 5X00357G04 | Ovation HART analog input or output module | Needs Verification | One listing places it in an Ovation HART analog family with AI, AO and analog limiter modules |
| 5X00357G04 | Simulated controller license | Not Interchangeable | Software based simulated I/O for FAT and model validation, not a physical board |
| 5X00357G04 | Third party RS-485 Modbus analog input module | Needs Adaptation | Mapping, scaling, polling timeouts, grounding and network segregation required |
| 5X00357G04 | Ovation RTD or contact input module | Not Compatible | Different signal conditioning and base pairing |
| 5X00357G04 | External analog signal isolator with HART support | Needs Adaptation | Loop power, isolation rating, ground scheme and HART host compatibility must be reviewed |
Benchmark references
- Acceptance criterion: injected field values match the faceplate across the full range, no open loop or ground fault alarms remain, and HART variables read correctly if the loop uses HART.
- Stability target: 24 hour watch with no drifting readings, no blown base fuses, no dropped external link during cabinet HVAC cycling and large motor starts.
