Description
System Role and Integration
The 5X00357G04 serves as the forensic data acquisition interface within the Ovation Distributed Control System architecture, functioning as the critical “black box” that records the precise chronological sequence of discrete events during system disturbances. As an Enhanced Modular Object (EMOD) specifically designed for Sequence of Events (SOE) applications, it mounts in standard Ovation I/O bases and communicates via the Ovation network to deliver millisecond-accurate timestamps for post-incident analysis.
This module occupies a specialized position in mission-critical industrial control applications where understanding the exact order of operations during a fault condition is essential for regulatory compliance, insurance investigations, and operational safety reviews. Unlike standard discrete input modules that merely report current state, the 5X00357G04 continuously monitors all 16 channels at high speed, capturing transient state changes with timestamps synchronized to the Ovation system clock—enabling engineers to determine whether a turbine trip preceded or followed a specific breaker operation by mere milliseconds.
Core Functionality and Signal Handling
The module provides sixteen independent isolated digital input channels, each capable of sensing dry contact closures from field devices such as breaker auxiliary switches, protective relay outputs, emergency stop buttons, and safety interlock contacts. The 48VDC on-card auxiliary power eliminates the need for external excitation supplies, simplifying wiring in remote marshalling cabinets and reducing potential failure points in the field loop.
Each input channel is sampled at high frequency (typically every 125 microseconds), with state changes logged to an internal event buffer accompanied by a 1-millisecond resolution timestamp. The module implements advanced filtering algorithms—including configurable 4-millisecond debounce filters and jitter counters—to prevent electrical noise and contact bounce from generating spurious event records while ensuring that legitimate rapid sequential events are accurately captured. When the jitter counter (tracking rapid state changes) reaches a threshold of four transitions, the channel temporarily suspends logging to prevent buffer overflow during chatter conditions, resuming only after a controller reset or automatic timeout.
Platform Heritage and Operational Benefits
Manufactured by Westinghouse and now maintained within Emerson’s Ovation portfolio, the 5X00357G04 represents the specialized SOE functionality required for power generation, transmission, and heavy industrial applications where regulatory bodies mandate precise event recording. The module’s 1500VAC isolation between field inputs and system logic ensures that ground faults or high-voltage transients in switchyard wiring cannot propagate to the control system backplane—a critical safety consideration when monitoring breaker status in high-voltage substations.
The EMOD architecture allows the module to operate without a separate Personality Module (in most configurations), reducing spare parts inventory complexity while maintaining the high reliability standards required for safety instrumented functions. Integration with the Ovation historical data and alarm systems enables automatic transfer of SOE records to permanent storage following a system disturbance, ensuring forensic data availability for subsequent analysis.

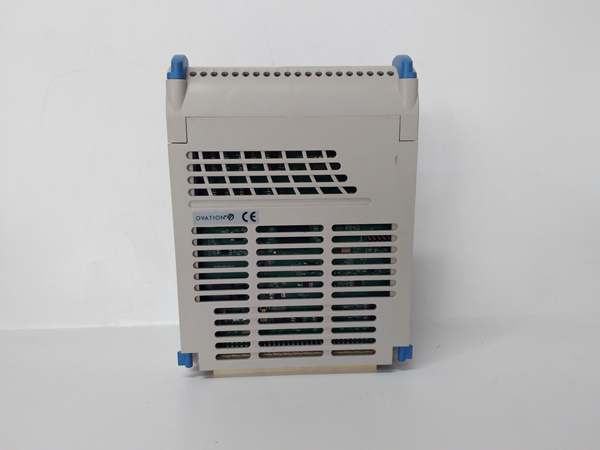

WESTINGHOUSE 5X00357G04
Part 4: Technical Specifications
-
Model Number: 5X00357G04
-
Manufacturer: Westinghouse Electric Corporation (Emerson Ovation product line)
-
Product Type: Events Input Contact Module (SOE-capable) / Enhanced Digital Input EMOD
-
Number of Channels: 16 isolated digital event inputs
-
Input Type: Dry contact closure (Form A) with on-card excitation
-
On-Card Power Supply: 48VDC auxiliary power for field contact excitation
-
Time Resolution: 1-millisecond event timestamping
-
Sampling Rate: High-speed sampling (125 microseconds typical scan interval)
-
Event Buffer: Internal buffer for SOE record storage and transfer
-
Input Filtering: Configurable 4-millisecond debounce; jitter detection and suppression
-
Isolation: 1500VAC (channel-to-system, 1 minute withstand)
-
Input Impedance: High-impedance sensing circuit (>100 kΩ typical)
-
Response Time: <1 millisecond (contact closure to timestamp registration)
-
Power Consumption: ≤3.5W typical
-
Operating Temperature: 0°C to 60°C (32°F to 140°F) standard; extended ranges available per configuration
-
Storage Temperature: -25°C to 70°C
-
Humidity: 5% to 95% RH (non-condensing)
-
Vibration/Shock: Industrial grade (15g shock, 0.5g vibration typical)
-
Dimensions: 12.1 cm × 5.2 cm × 16.5 cm (4.8 in × 2.0 in × 6.5 in)
-
Weight: 0.32 kg (0.7 lbs)
-
Mounting: Standard Ovation I/O base or DIN rail (depending on chassis configuration)
-
Communication Interface: Ovation system bus (parallel backplane or network interface per configuration)
-
Standards Compliance: API 670 (machinery protection), ISO 9001 manufacturing standards
Part 5: Core Features & Customer Value
Millisecond-Accurate Sequence of Events Recording: The 1-millisecond timestamp resolution enables definitive determination of event sequences during rapid system transients—critical for root cause analysis following turbine trips, cascade breaker operations, or safety system activations. For utility engineers investigating grid disturbances or plant trips, this precision eliminates the ambiguity of slower scanning systems, providing forensic evidence that distinguishes between primary causes and secondary effects.
On-Card 48VDC Power Eliminates External Supplies: The integrated auxiliary power source removes the need for separate 48V power distribution to field contact loops, reducing installation costs and eliminating single points of failure in the excitation path. In remote switchyard cabinets or turbine auxiliary enclosures where space is limited and additional power supplies would complicate maintenance, this integration streamlines wiring and improves overall system reliability.
Advanced Noise Filtering with Jitter Control: The configurable 4-millisecond debounce filter and intelligent jitter counter prevent mechanical contact bounce and electrical noise from generating false event records while maintaining sensitivity to genuine rapid sequences. For maintenance teams, this means SOE logs contain actionable diagnostic data rather than cluttered with nuisance alarms from faulty switches or interference, reducing the time required to reconstruct incident timelines.
High-Voltage Isolation for Safety-Critical Applications: The 1500VAC isolation rating ensures that high-voltage transients generated during breaker operations or ground faults in switchyard wiring cannot propagate to the control system electronics. This protection is essential in power generation and transmission applications where field devices operate at elevated potentials relative to the control room ground reference, ensuring both personnel safety and equipment protection during fault conditions.
EMOD Architecture Simplifies Maintenance: As an Enhanced Modular Object that requires no separate Personality Module for basic contact input functionality, the 5X00357G04 reduces spare parts complexity and stocking requirements. Technicians can replace a failed module with a single part number rather than diagnosing whether the fault lies in the EMOD or PMOD, minimizing mean time to repair (MTTR) during critical outage windows.

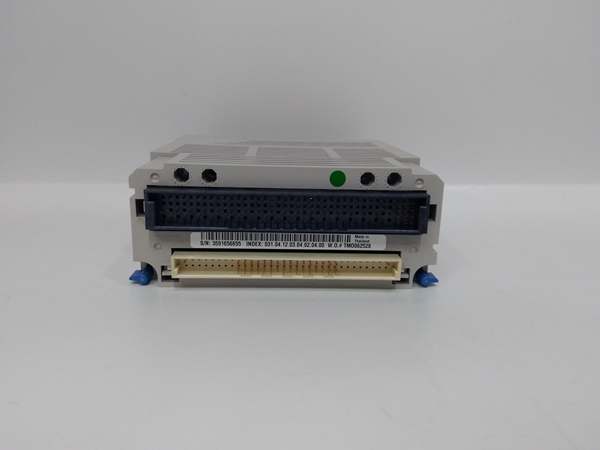

WESTINGHOUSE 5X00357G04
Part 6: Typical Applications
Power Generation Turbine Trip Analysis: The 5X00357G04 is extensively deployed in coal-fired, gas-fired, and nuclear power plants to monitor the sequence of protective relay operations during turbine-generator trips. When a unit trips offline, the module captures the exact millisecond-order sequence of overspeed relay activation, vibration trip contacts, and emergency stop button presses, allowing engineers to determine whether the trip resulted from equipment failure, operator action, or a cascade initiated by a specific protective relay.
Transmission Substation Breaker Operation Logging: In high-voltage switchyards and substation control houses, the module monitors breaker auxiliary contacts, recloser status, and protective relay outputs to record the precise sequence of fault clearing operations. Following grid disturbances or lightning strikes, utility engineers utilize these SOE records to verify proper relay coordination, identify failed breakers that did not clear as commanded, and demonstrate compliance with NERC (North American Electric Reliability Corporation) disturbance monitoring requirements.
Safety System Post-Event Reconstruction: Within chemical processing and petrochemical facilities, the module logs the activation sequence of safety instrumented function (SIF) devices—such as emergency shutdown valves, high-integrity pressure protection system (HIPPS) actuators, and fire suppression system triggers. After a process upset or emergency shutdown, safety engineers analyze these sequences to verify that safety systems responded in the correct order and within required time limits, validating the functional safety management system per IEC 61511 standards.
Critical Process Interlock Verification: In manufacturing and continuous process industries, the module monitors the sequence of limit switches, conveyor interlocks, and emergency stop circuits during equipment jams or safety incidents. The millisecond timestamps help maintenance teams distinguish between mechanical failures that caused a jam and the subsequent safety system responses that halted the process, enabling targeted corrective actions rather than blanket equipment inspections.
Regulatory Compliance and Incident Investigation: For facilities subject to regulatory reporting requirements—such as OSHA Process Safety Management (PSM) covered plants or EPA Risk Management Plan (RMP) facilities—the 5X00357G04 provides the documented event sequences required for incident investigations. The tamper-resistant timestamp data serves as objective evidence during internal reviews, insurance claims, and regulatory audits, demonstrating that the facility maintains adequate monitoring capabilities for critical safety systems.
