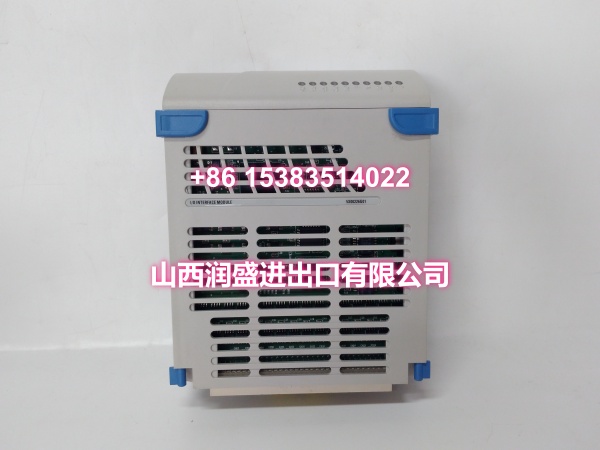

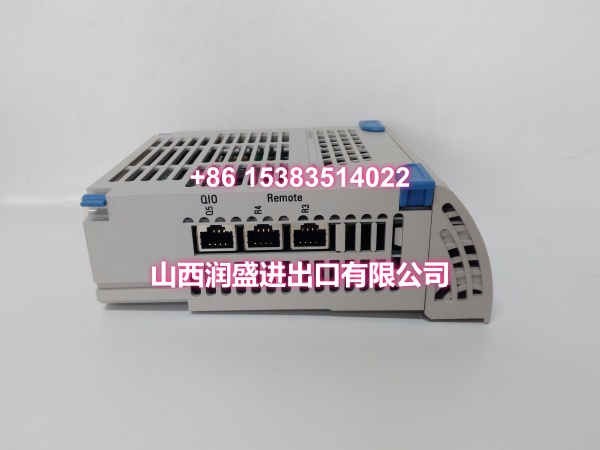

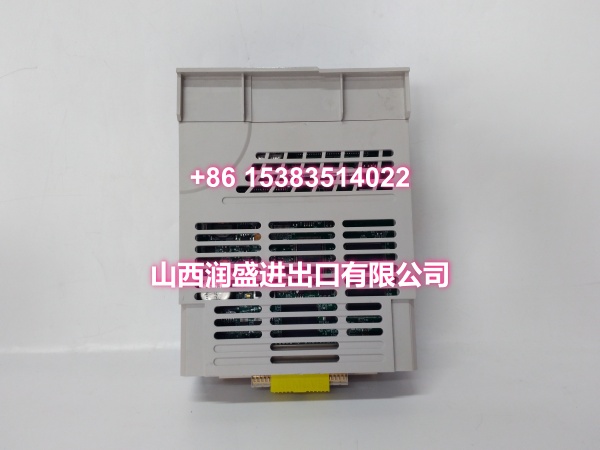

Westinghouse 5X00226G01 Ovation IOIC Card Surplus Spare Verify Function Before Buy

Description

Product Core Brief

• Model: 5X00226G01
• Brand: Sold under Westinghouse and Emerson names, tied to Ovation spares
• Most Likely Function One: IOIC card, meaning Ovation I/O interface controller, listed by a Shenzhen supplier as 西屋IOIC卡 for 5X00226G02
• Most Likely Function Two: Relay output module for Ovation DCS that drives field devices needing electrically isolated dry contact switching, such as solenoids, interlocks, motor starters, beacons, and audible alarms, with on card LEDs that mirror output state
• Other Claims: One page calls it a generic Ovation I/O module used to interface process signals in power generation and water treatment Another lists it as a plain input output module with USB interface options, which does not fit Ovation rack hardware A third dumps it into a general list of power supply modules and analog AI and AO modules
• Product Type: Legacy Ovation interface or output card, function unconfirmed by factory documentation
• Condition: New Surplus / New Old Stock, varies by lot

Blunt take. This number splits into two believable stories, IOIC interface card and relay output card, and both sit inside Ovation architecture, so the confusion is not random. What is random is the USB claim and the generic power supply text, which are copy paste filler. One Chinese supplier lists 5X00226G01/02 at around six thousand RMB with a Fuzhou ship from point and no downloadable manual Another simply advertises new original stock with a one year warranty and no spec at all Neither proves anything. Confirm against your cabinet BOM, rack layout, terminal board, and loop drawing before paying.

Product Introduction

Westinghouse 5X00226G01 is a legacy part usually hunted to keep aging Ovation cabinets running. Ovation is a distributed control system from Emerson Process Control aimed at power plants, steel mills, and water and wastewater facilities, supporting Windows and Solaris platforms, with Windows up to 3.6.0 and Solaris up to 1.9.2, and Ovation 4.0 released in 2025 as a new unified platform

Why this matters for your downtime. If this is truly an IOIC interface card, a failure can knock out a whole group of I/O rather than one point, because interface hardware often carries traffic between the controller and a rack of modules. If it is a relay output card, a failure can leave a solenoid energized, drop an interlock, or silence an alarm, and that is a safety problem hiding behind a healthy looking screen. The reason the market mixes these up is that Ovation splits work between an electronic module and a personality module that must match, and traders who do not understand that paste specs from whatever part sits near it in their spreadsheet.

Key Technical Specifications

Ignore claims of USB connectivity, generic input output flexibility, standalone power supply use, PROFINET, EtherNet/IP, CANopen, and DIN rail plug and play replacement attached to this number. Ovation rack cards mate to a backplane and a terminal board, not a USB port

Quality Control Process

When the function itself is disputed, identification comes before any power up.

1. Document cross check. We compare your cabinet BOM, rack layout, terminal board part number, loop drawing, controller build sheet, and installed label before applying power.
2. Function trace. We confirm whether your system treats this as an IOIC interface card or a relay output card, since one can drop a whole I/O group and the other can strand a field device.
3. Pair confirmation. If it sits in an Ovation I/O slot, we verify the matching electronic and personality module pair, because one side alone will not restore your signal.
4. Label and silk screen audit. Sanded markings, overprinted stickers, reflowed solder, replaced capacitors, patched traces, and swapped connectors usually mean a repaired board.
5. Rail short check. A Fluke multimeter confirms no short across supply and logic rails before power up.
6. Relay path test. If it is a relay card, we cycle every channel, measure contact continuity and contact resistance, and confirm no welded or sticky contacts, since welded relays are the dangerous failure mode.
7. Coil and drive test. We verify coil drive voltage and current, plus freewheeling protection, to avoid killing a new card with a bad field coil.
8. Interface path test. If it is an IOIC card, we confirm the controller sees the rack, holds communication under load, and keeps every I/O group online with no dropped nodes.
9. Fail safe validation. We pull communication and power to confirm outputs fall to the defined state your strategy expects instead of freezing energized.
10. Thermal soak and packaging. Two hours under load with a thermal camera, then anti-static shielding bag, desiccant, humidity indicator, rigid double box, and a written test summary.

Replacement Pitfall Guide

❗ Buying on a reseller headline alone. IOIC card, relay output card, generic I/O module, and power supply all get attached to this number. Your drawing decides.

❗ Assuming fail safe happens by itself. A defined output state on controller or comm loss usually comes from strategy configuration, not from the card, so verify it after the swap

❗ Forgetting the electronic and personality module pairing. Ovation often needs both sides matched, so swapping only one frequently does not restore the loop.

❗ Trusting LEDs as proof of health. A per channel LED can mirror the commanded output while the contact underneath is welded, which leaves a solenoid energized with no warning

❗ Ignoring the terminal board. Cracked rails, burned terminals, and corroded pins on the mating board mimic dead cards constantly and are cheap to check.

❗ Skipping configuration and firmware baseline. A healthy card can still fail to come online if the database, firmware, or station software baseline does not match your system generation.

❗ Accepting a one year warranty without a test record. A warranty claim from a trader with no manual and no test data is not proof of a working board

❗ Running a flaky cabinet to buy time. If one card after another fails, the root cause is often power quality, grounding, moisture, or an end of life rack, not bad luck with spares.

Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

• Confirm which Ovation platform your plant runs, since Windows and Solaris generations differ in support and upgrade path, and Ovation 4.0 changed the platform structure
• Ask any seller for a real photo of the installed label and board silk screen, not a stock image, plus the actual test record they hold.
