Description
System Role and Integration
The 5X00070G01 serves as the precision analog signal acquisition interface within the Ovation Distributed Control System architecture, functioning as a high-density measurement front-end for process variables such as pressure, flow, temperature, and level. As an Electronics Module (EMOD), it mounts in standard Ovation I/O bases and operates in conjunction with the 5X00071 series Personality Modules (PMODs) to create a complete eight-channel analog input solution.
This module occupies a critical position in modern Ovation I/O architectures, representing the “High Density” design philosophy that maximizes channel count within compact form factors. Unlike legacy analog input modules that required substantial cabinet space per channel, the 5X00070G01 delivers eight precision analog inputs in a footprint comparable to older four-channel designs—enabling significant space savings in large-scale control system installations.
The modular EMOD/PMOD architecture allows the same electronics platform to serve diverse analog input requirements through appropriate personality module selection. The 5X00070G01 handles the analog-to-digital conversion, isolation, and communication functions, while the companion PMOD provides the field-specific signal conditioning, termination, and surge protection matched to the particular input type (current vs. voltage, specific ranges).
Core Functionality and Signal Handling
The module provides eight independently isolated analog input channels, each configurable through software and hardware personality settings to accept standard industrial signal ranges: 4-20mA current loops, ±10V, ±5V, 0-10V, and 0-5V voltage signals. A 16-bit sigma-delta analog-to-digital converter digitizes the input signals with ±0.1% full-scale accuracy, providing 65,536 discrete measurement levels that support tight regulatory control and high-resolution data acquisition.
Individual channel isolation—typically 1000V AC/DC or greater—prevents ground loop currents and ensures that faults or high common-mode voltages on one channel cannot affect measurements on adjacent channels or propagate to the controller backplane. This isolation proves particularly critical in power generation and heavy industrial applications where field devices may reference different ground potentials separated by hundreds of meters.
The 5X00070G01 supports high-density mounting in Ovation I/O bases, with the personality module determining the specific physical connector arrangement and field wiring termination. The module interfaces with the Ovation controller via the high-speed I/O bus, transferring digitized values, diagnostic status, and channel health information to the control processor for real-time control algorithms and historical data logging.
Advanced diagnostic capabilities include open-circuit detection for 4-20mA loops (broken wire), overrange/underrange indication, and module health monitoring. These features enable predictive maintenance strategies and reduce unplanned downtime by alerting operators to field wiring or transmitter faults before they impact process control.
Platform Heritage and Operational Benefits
As a component of the Emerson Ovation platform originally developed by Westinghouse, the 5X00070G01 reflects the high-density, high-performance I/O design philosophy that enables modern distributed control systems to handle thousands of I/O points in compact, cost-effective configurations. The module benefits from Emerson’s continuous improvement program, incorporating advanced ADC technology and noise rejection capabilities developed through decades of deployment in mission-critical power generation, petrochemical, and water treatment applications.
The 16-bit resolution provides sufficient granularity for most industrial process control applications, delivering measurement precision that supports advanced control strategies including model predictive control (MPC) and statistical process control (SPC). The high density form factor reduces per-channel hardware costs and cabinet space requirements by 40-50% compared to legacy analog input modules, enabling facility expansions within existing control room footprints.
Integration with the Ovation control platform provides seamless access to signal quality diagnostics through the Ovation Operator Station and Engineering Station interfaces. Maintenance personnel can view real-time signal values, diagnostic alarms, and historical trends without requiring specialized test equipment, accelerating troubleshooting and reducing mean time to repair (MTTR) during process upsets.

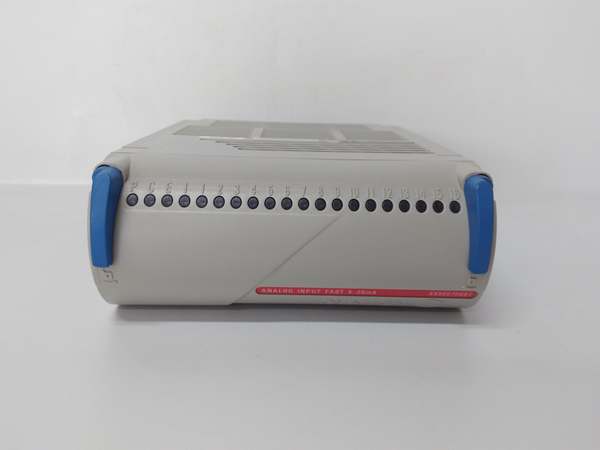

5X00070G01
Part 4: Technical Specifications
-
Model Number: 5X00070G01
-
Manufacturer: Westinghouse Electric Corporation (Emerson Ovation product line)
-
Product Type: 8-Channel High Density Analog Input Electronics Module (EMOD)
-
Number of Channels: 8 isolated analog input channels
-
Input Types Supported: Current (4-20mA) and Voltage (±10V, ±5V, 0-10V, 0-5V) – configuration dependent
-
ADC Resolution: 16-bit sigma-delta conversion
-
Accuracy: ±0.1% of full scale (±0.1% FSR) at 25°C
-
Temperature Drift: ±0.01% per °C typical
-
Input Impedance:
-
Voltage inputs: >1 MΩ
-
Current inputs: 250 Ω typical
-
-
Channel Isolation: ≥1000V AC/DC (channel-to-channel and channel-to-logic)
-
Common Mode Rejection: >120 dB @ 50/60 Hz
-
Normal Mode Rejection: >60 dB @ 50/60 Hz
-
Update Rate: 100-250 ms per channel (depending on configuration and filtering)
-
Compatible Personality Modules: 5X00071G01 (4-20mA), 5X00071G02 (±10V), 5X00071G03 (±5V), and others
-
Diagnostics: Open circuit detection, overrange/underrange, channel health status
-
Power Consumption: ≤3W typical (electronics only)
-
Operating Temperature: 0°C to 60°C (32°F to 140°F)
-
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
-
Humidity: 0% to 95% RH (non-condensing)
-
Mounting: Standard Ovation high-density I/O base
-
Dimensions: Approximately 12.1 cm × 2.5 cm × 9.5 cm (4.8 in × 1.0 in × 3.7 in)
-
Weight: 0.2 kg to 0.4 kg (0.4 lbs to 0.9 lbs)
-
Certifications: CE, UL, CSA (depending on configuration and revision)
-
Status: Active product; available via Emerson and authorized distributors
Part 5: Core Features & Customer Value
High-Density Eight-Channel Design: The eight-channel configuration in a compact form factor maximizes analog input density within Ovation control cabinets, reducing per-point hardware costs by approximately 40% compared to lower-density alternatives. For large-scale power plants and process facilities requiring hundreds of analog inputs, this density enables comprehensive monitoring without excessive cabinet proliferation or building expansion.
16-Bit Precision Measurement: The 16-bit ADC provides 65,536 discrete measurement levels across the input range, delivering resolution sufficient for tight regulatory control and advanced process optimization. This precision enables accurate flow totalization, pressure control within tight tolerances, and temperature monitoring for product quality applications where measurement uncertainty directly impacts operational efficiency.
Universal Input Flexibility: Support for both current (4-20mA) and voltage (±10V, ±5V, 0-10V, 0-5V) inputs through appropriate personality module selection allows standardization on a single electronics spare inventory. Maintenance organizations stock the universal 5X00070G01 EMOD and specific PMODs for their instrumentation mix, reducing spare parts SKUs by 60% compared to stocking dedicated current and voltage input cards.
Robust Galvanic Isolation: Individual channel isolation of 1000V+ prevents ground loop currents that can induce measurement errors when multiple transmitters reference different ground potentials. In power generation environments where sensors may be located in switchyards, turbine halls, and remote auxiliary buildings with varying ground references, this isolation ensures measurement integrity without external signal isolators.
Advanced Diagnostic Capabilities: Open-circuit detection for 4-20mA loops identifies broken field wires or failed transmitters before they cause process upsets, while overrange/underrange indication alerts operators to sensors operating outside calibrated ranges. These diagnostics enable condition-based maintenance, reducing unnecessary field inspections while preventing undetected measurement failures that could lead to off-spec product or safety incidents.
High Noise Rejection: Common-mode rejection exceeding 120 dB at power line frequencies eliminates electrical noise induced by nearby motors, drives, and high-voltage equipment. This noise immunity ensures accurate measurements in electrically harsh environments without requiring expensive shielded cable for every analog input, reducing installation costs while maintaining signal integrity.
5X00070G01
Part 6: Typical Applications
Power Generation Process Monitoring: The 5X00070G01 is extensively deployed in coal-fired, gas-fired, and nuclear power plants for monitoring steam pressure, feedwater flow, condenser vacuum, combustion air flow, and auxiliary system temperatures. In these applications, the 4-20mA inputs interface with smart pressure transmitters, differential pressure flow elements, and temperature transmitters, providing the control system with accurate process data for boiler control, turbine protection, and emissions monitoring while withstanding the EMI prevalent in switchyard environments.
Petrochemical Process Control: In refineries and chemical processing plants, the module monitors distillation column pressures, reactor temperatures, pipeline flow rates, and storage tank levels. The high resolution supports advanced process control strategies including model predictive control for maximizing throughput while maintaining product specifications. The channel isolation prevents ground loop errors when connecting to sensors located in different grounding zones throughout sprawling process units.
Water Treatment and Distribution: Municipal and industrial water treatment facilities utilize the module to monitor turbidity, pH, chlorine residual, flow rates, and tank levels from 4-20mA transmitters. The open-circuit detection proves particularly valuable for unmanned remote pump stations, immediately alerting central control rooms to transmitter failures without requiring manual verification trips. The high density enables comprehensive monitoring of multi-stage treatment processes within compact control enclosures.
Oil and Gas Production: Petroleum pipeline, storage terminal, and production facility applications employ the module for custody transfer metering, pipeline pressure monitoring, and tank level indication. The ±0.1% accuracy supports revenue-grade measurement requirements, while the wide temperature range accommodates outdoor installations in extreme climates from Arctic wellheads to desert production facilities.
Food and Beverage Manufacturing: Process industries with strict hygiene and quality requirements use the module for monitoring CIP (clean-in-place) temperatures, pasteurization pressures, and ingredient flow rates. The 16-bit resolution enables precise control of batch processes where small measurement errors can result in product waste or quality deviations, while the stainless steel compatible enclosures (when paired with appropriate PMODs) meet sanitary requirements.
Pharmaceutical Manufacturing: FDA-regulated facilities employ the module for monitoring bioreactor conditions, purification column pressures, and critical process temperatures. The diagnostic capabilities support validation requirements by providing continuous verification of measurement loop integrity, while the high isolation ensures that ground faults in one process area cannot affect validated systems in adjacent areas.
