Description
System Role and Integration
The 1C31238H01 serves as an essential mechanical placeholder within the Ovation Compact I/O physical architecture, addressing a specific requirement of the modular base design. Standard Ovation I/O carriers mechanically accommodate two distinct module types: an Electronics Module (EMOD) and a Personality Module (PMOD). While most I/O configurations require an active PMOD to configure signal conditioning, certain Compact I/O modules—such as the 1C31234G01 Contact Input EMOD—integrate all necessary electronics and configuration onboard, eliminating the requirement for an active PMOD.
In these configurations, the 1C31238H01 slides into the PMOD cavity to provide physical stability for the EMOD above it and to seal the open slot against environmental contaminants. Without this filler, the EMOD lacks lateral support at the front of the carrier, creating mechanical stress on the backplane connector and potentially compromising the integrity of the internal connection during vibration or thermal cycling. The module ensures that the Compact I/O architecture maintains its structural rigidity and environmental protection even when the full electronic PMOD is not utilized.
Core Functionality and Physical Characteristics
This component is strictly a passive, non-electronic assembly constructed from rigid industrial foam or composite material. Its primary functions are mechanical stabilization and environmental protection rather than signal processing. The insert fills the void left by the absent PMOD, preventing the EMOD from flexing or cantilevering under vibration loads common in turbine halls and compressor stations.

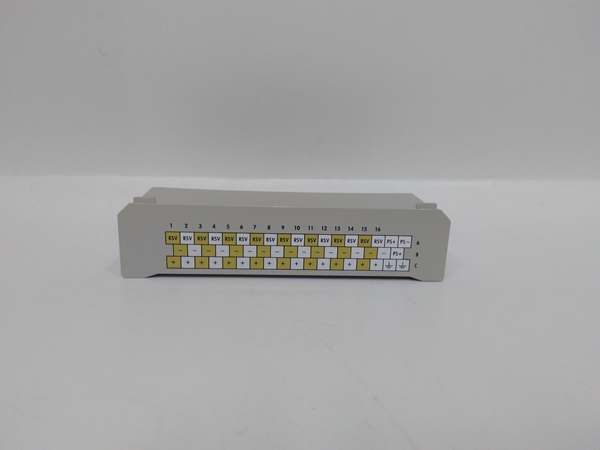

The face of the 1C31238H01 typically features printed wiring documentation—specifically indicating the Terminal D6 key position for the associated 1C31234G01 Contact Input module. This labeling provides immediate visual reference for field technicians during commissioning or maintenance, confirming proper I/O base configuration without requiring reference to engineering drawings. The material is non-conductive and chemically resistant, ensuring it does not outgas or degrade within the sealed control cabinet environment over decades of service.
Platform Heritage and Operational Benefits
As a component of the Westinghouse Ovation Compact I/O series, the 1C31238H01 reflects the design philosophy of reducing per-point cost and complexity for high-density discrete I/O applications. By utilizing a low-cost filler rather than a full electronic PMOD for simple contact input applications, the system achieves significant cost savings while maintaining the standardized mechanical envelope of the Ovation I/O family.
This approach allows maintenance organizations to stock a single, inexpensive spare part for all Compact Contact Input locations rather than purchasing full electronic modules that would provide unnecessary functionality. The filler is engineered to the same mechanical tolerances as active PMODs, ensuring consistent insertion force, retention, and alignment across all I/O slots in the cabinet.
WESTINGHOUSE 1C31238H01
Part 4: Technical Specifications
-
Model Number: 1C31238H01
-
Manufacturer: Westinghouse Electric Corporation
-
Product Type: Personality Module Filler / Foam Insert
-
Material: Rigid industrial foam or non-conductive polymer composite
-
Compatible EMODs: 1C31234G01 (Compact Contact Input), and potentially other Compact series modules designed for no-PMOD operation
-
Mounting: Slides into standard Ovation I/O base Personality Module (PMOD) slot
-
Terminal Key Indication: Position D6 (for 1C31234G01 wiring configuration)
-
Functionality: Passive mechanical stabilization only – no electronic components or signal processing
-
Environmental Protection: Seals PMOD slot against dust and airborne contaminants (maintains IP20 rating in controlled cabinets)
-
Dimensions: Approximately 12.7 cm × 2.5 cm × 9.5 cm (5.0 in × 1.0 in × 3.7 in) – standard Ovation PMOD form factor
-
Weight: <0.1 kg (0.22 lbs)
-
Operating Temperature: -40°C to +70°C (inherited from system requirements)
-
Storage Temperature: -55°C to +125°C
-
Humidity: 0% to 95% RH (non-condensing)
-
Color/Marking: Typically black or gray foam with white printed wiring key
-
Approvals: N/A (passive mechanical component)
Part 5: Core Features & Customer Value
Mechanical Stability for Vibration Environments: In power generation and heavy industrial applications where control cabinets are subject to continuous vibration from turbines, compressors, or nearby rotating machinery, the filler provides critical lateral support to the EMOD. Without this stabilization, the unsupported overhang of the Compact EMOD creates a lever arm that can fatigue the backplane connector pins over time, leading to intermittent connections that manifest as nuisance alarms or hard failures requiring emergency maintenance. The rigid foam insert eliminates this mechanical vulnerability, ensuring reliable physical engagement throughout the system lifecycle.
Environmental Sealing and Contaminant Exclusion: By occupying the otherwise open PMOD slot, the 1C31238H01 acts as a barrier preventing dust, metallic particles, and airborne chemical contaminants from entering the I/O base interior. In coal-fired power plants, mining operations, or cement manufacturing facilities where conductive dust is prevalent, this sealing function protects the gold-plated backplane contacts from contamination that could cause high-resistance connections or corrosion, preserving signal integrity and reducing the frequency of required cleaning maintenance.
Integrated Wiring Documentation: The printed Terminal D6 key on the filler face serves as immediate visual confirmation of correct I/O configuration for field technicians. During troubleshooting or module replacement, engineers can verify at a glance that the slot is configured for contact input wiring without cross-referencing panel drawings, reducing the risk of wiring errors during fast-paced outage maintenance when contact inputs are often rewired for turbine supervisory modifications or boiler safety interlock updates.
Inventory Cost Optimization: Because the associated 1C31234G01 EMOD contains all necessary electronics onboard, utilizing this inexpensive filler instead of a full electronic Personality Module reduces per-point hardware costs by approximately 60-70% compared to traditional Ovation I/O architectures requiring matched EMOD/PMOD pairs. For large-scale projects involving hundreds of contact inputs—such as turbine generator retrofit projects or complete boiler control system replacements—this cost reduction enables significant budget allocation toward other critical control assets while maintaining full Ovation compatibility.
Standardization of Sparing Strategies: The filler allows maintenance organizations to standardize on a single spare parts philosophy for Compact I/O: stock the universal EMODs (1C31234G01) and the associated foam fillers, eliminating the complexity of tracking which specific PMODs pair with which EMODs. This simplification reduces warehouse inventory SKUs and ensures that any field technician can replace a failed contact input module without risk of personality module mismatch.
WESTINGHOUSE 1C31238H01
Part 6: Typical Applications
Turbine Supervisory Instrumentation (TSI) Cabinets: The 1C31238H01 is installed in every I/O slot utilizing the 1C31234G01 Compact Contact Input EMOD to monitor turbine bearing vibration trip contacts, overspeed protection relays, and thrust bearing wear switches. In these vibration-intensive environments near large rotating machinery, the filler provides essential mechanical stabilization that prevents connector fatigue. The wiring documentation indicating Terminal D6 assists technicians during annual turbine outages when vibration monitoring loops are tested and verified, ensuring correct reconnection of the two-wire contact loops to the proper screw terminals.
Boiler Safety and Burner Management Systems: Within fossil fuel power plant boiler control enclosures, this filler accompanies contact input modules used to sense limit switches on forced-draft and induced-draft fan dampers, fuel valve position switches, and flame scanner shutter status. The environmental sealing proves particularly valuable in these applications where airborne coal dust or fly ash particles could infiltrate unsealed I/O slots, potentially causing tracking failures between terminals. During boiler light-off sequences, the mechanical stability ensures reliable sensing of critical safety interlock contacts despite the significant vibration generated by large combustion air fans.
Water Treatment Remote I/O: In demineralizer and reverse osmosis skid controls utilizing Compact I/O for pump status and tank level switch monitoring, the 1C31238H01 fills unused PMOD slots in outdoor-rated enclosures subject to temperature cycling. The foam material accommodates the thermal expansion and contraction cycles common in unmanned water treatment facilities without degrading, maintaining slot sealing against humidity and corrosive atmospheric conditions near cooling towers or chemical feed areas.
Emergency Shutdown System (ESD) Interface Panels: For oil and gas applications where Ovation systems interface with hardwired ESD systems through contact inputs, the filler ensures that safety-critical contact monitoring modules remain securely seated during platform or pipeline vibration events. The clear Terminal D6 marking supports rapid troubleshooting during safety system proof-testing, allowing technicians to immediately identify correct terminal assignments when verifying emergency shutdown valve limit switch wiring or blowdown valve position indications.
