Description
System Role and Integration

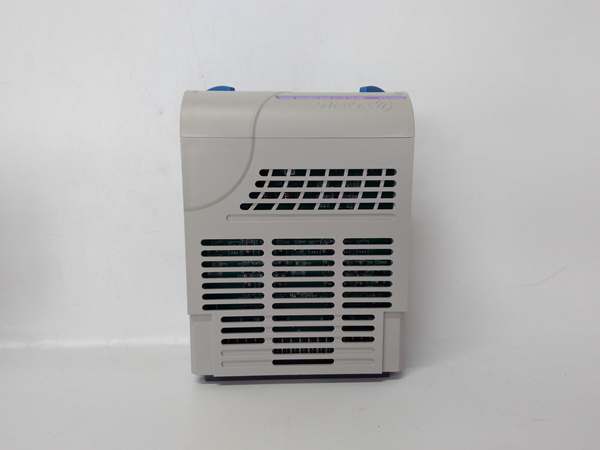

The 1C31224G01 serves as the precision analog signal acquisition interface within the Ovation Distributed Control System architecture, functioning as the critical measurement front-end for process variables such as pressure, flow, level, and temperature. As an Electronics Module (EMOD), it mounts in standard Ovation I/O bases and operates in conjunction with the 1C31227G01 Personality Module to create a complete eight-channel analog input solution.
This module occupies a fundamental position in closed-loop control and monitoring applications, receiving 4-20mA current loop signals from field transmitters and converting them into digital values for the Ovation controller. The 4-20mA standard is the most prevalent analog signaling method in industrial automation, providing noise immunity and compatibility with thousands of process transmitters from various manufacturers. The 1C31224G01 specifically targets current loop inputs, distinguishing it from voltage-input variants in the Ovation I/O family.
Core Functionality and Signal Handling
The module provides eight independent isolated input channels, each capable of accepting 4-20mA signals from loop-powered or externally powered transmitters. A 14-bit analog-to-digital converter digitizes the input signals with ±0.1% full-scale accuracy, providing sufficient resolution for most process control applications while maintaining cost-effectiveness. Each channel updates every 250 milliseconds, balancing responsiveness with noise rejection for typical industrial process dynamics.
The 1C31224G01 requires the 1C31227G01 Personality Module (PMOD) to complete the analog input channel. The PMOD provides the physical field termination, individual channel surge protection, and passive signal conditioning that interfaces with the EMOD’s electronics. This modular separation allows the same electronics module to be paired with different personality modules for different input types (voltage, current, thermocouple), though the 1C31224G01/1C31227G01 pair is specifically optimized for 4-20mA current loops.
Input impedance is approximately 250 ohms, providing the voltage drop necessary for current measurement while minimizing burden on the transmitter loop. Channel-to-channel isolation prevents ground loop currents and ensures that faults on one channel cannot affect measurements on adjacent channels—a critical feature when monitoring multiple variables in electrically noisy environments.
Platform Heritage and Operational Benefits
As a component of the Westinghouse Ovation platform now maintained within Emerson’s automation portfolio, the 1C31224G01 benefits from extensive deployment in power generation, petrochemical, water treatment, and general industrial applications. The EMOD/PMOD architecture enables flexible configuration while reducing spare parts inventory—facilities stock the universal electronics module and specific personality modules matched to their field instrumentation.
The 14-bit resolution provides 16,384 discrete levels across the 4-20mA range, delivering measurement granularity sufficient for tight regulatory control loops while avoiding the cost premium of higher-resolution alternatives. The 250ms update rate supports most process control applications, though faster analog input modules are available in the Ovation family for high-speed control requirements.
Integration with the Ovation control platform provides seamless access to signal quality diagnostics, including open loop detection (broken wire), overrange/underrange indication, and module health status. These diagnostics enable predictive maintenance strategies and reduce unplanned downtime by alerting operators to field wiring or transmitter faults before they impact process control.
WESTINGHOUSE 5X00357G04
Part 4: Technical Specifications
-
Model Number: 1C31224G01
-
Manufacturer: Westinghouse Electric Corporation (Emerson Ovation product line)
-
Product Type: 8-Channel Analog Input Electronics Module (EMOD)
-
Number of Channels: 8 individually isolated analog input channels
-
Input Signal Range: 4-20 mA (current loop)
-
Input Type: Loop-powered or active source transmitters
-
Input Impedance: 250 Ω (typical for current measurement)
-
ADC Resolution: 14 bits
-
Accuracy: ±0.1% of full scale (±0.1% FSR)
-
Update Rate: 250 milliseconds per channel
-
Channel Isolation: Channel-to-channel isolation (prevents ground loops)
-
Compatible Personality Module: 1C31227G01 (4-20mA Current Input PMOD)
-
Alternative Configuration: 1C31224G02 (for ±1V voltage input with 1C31227G02 PMOD)
-
Surge Protection: Provided by Personality Module (1C31227G01)
-
Open Loop Detection: Yes (broken wire detection for 4-20mA loops)
-
Overrange/Underrange Detection: Software-configurable limits
-
Power Consumption: 2.5W maximum (typical)
-
Operating Temperature: 0°C to 60°C (32°F to 140°F)
-
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
-
Humidity: 0% to 95% RH (non-condensing)
-
Dimensions: 12.1 cm × 5.2 cm × 16.6 cm (4.8 in × 2.0 in × 6.5 in)
-
Weight: 0.3 kg to 0.8 kg (0.7 lbs to 1.8 lbs) depending on packaging
-
Mounting: Standard Ovation I/O base plug-in module
-
Status: Legacy component; available via secondary market and Emerson certified spares
Part 5: Core Features & Customer Value
Precision 14-Bit Measurement: The 14-bit ADC provides resolution sufficient for most industrial process control applications, delivering ±0.1% accuracy that supports tight regulatory control of pressure, flow, and level variables. For process engineers, this precision ensures that control algorithms receive high-fidelity data, enabling stable operation of PID loops and reducing process variability compared to lower-resolution alternatives.
Individual Channel Isolation: Each of the eight input channels maintains electrical isolation from adjacent channels and from the controller logic ground. This isolation prevents ground loop currents that can induce measurement errors when multiple transmitters reference different ground potentials—a common scenario in large industrial plants where field devices are distributed across extensive areas with varying ground references.
Modular EMOD/PMOD Architecture: The separation of electronics from field termination enables cost-effective maintenance and configuration flexibility. If field wiring faults damage the input circuitry, only the relatively inexpensive 1C31227G01 Personality Module requires replacement, while the 1C31224G01 EMOD retains its calibration and configuration. This architecture also allows field reconfiguration for different input types by swapping personality modules rather than replacing entire I/O cards.
Open Loop and Diagnostic Capability: The module continuously monitors each 4-20mA loop for broken wires (open circuit) and out-of-range signals, providing immediate notification to operators and control system alarms. For maintenance teams, this eliminates the need for manual loop verification during troubleshooting and enables predictive identification of failing transmitters or damaged field cables before they cause process upsets.
250ms Update Rate for Process Control: The 250-millisecond channel update rate provides responsive measurement for typical industrial processes while maintaining excellent noise rejection through integration. This rate is well-suited for pressure control, tank level monitoring, and flow control applications where process dynamics are measured in seconds or minutes, rather than high-speed machinery control requiring millisecond response times.
WESTINGHOUSE 1C31147G01
Part 6: Typical Applications
Power Generation Process Monitoring: The 1C31224G01 is extensively deployed in coal-fired, gas-fired, and nuclear power plants to monitor steam pressure, feedwater flow, condenser vacuum, and auxiliary system temperatures. In these applications, the 4-20mA inputs interface with smart pressure transmitters, differential pressure flow elements, and temperature transmitters, providing the control system with accurate process data for boiler control, turbine protection, and balance-of-plant optimization.
Water Treatment and Distribution: Municipal and industrial water treatment facilities utilize the module to monitor flow rates, tank levels, pH values, and chemical concentrations from 4-20mA transmitters. The channel isolation proves particularly valuable in these applications where sensors may be located in different grounding zones—such as submerged level transmitters in tanks and pressure transmitters on pumps—preventing ground loop errors that could affect chemical dosing accuracy.
Petrochemical Process Control: In refining and chemical processing plants, the module monitors distillation column pressures, reactor temperatures (via temperature transmitters), and pipeline flow rates. The 14-bit resolution supports the precise control required for product quality specifications, while the surge protection integrated in the personality module safeguards against transients common in electrically classified hazardous areas.
Oil and Gas Production: Wellhead pressure monitoring, separator level control, and custody transfer flow measurement utilize the 1C31224G01 to interface with field transmitters in remote production facilities. The module’s reliability and diagnostic capabilities reduce the need for frequent field visits to verify transmitter operation, lowering operational costs for geographically dispersed production assets.
General Industrial Automation: Manufacturing facilities employ the module for monitoring compressed air pressure, hydraulic system pressures, cooling water temperatures, and tank inventories. The standardized 4-20mA interface ensures compatibility with virtually any industrial transmitter, simplifying integration and reducing commissioning time for new installations or control system retrofits.
