Description
System Role and Integration
The 1C31203G01 serves as the analog signal acquisition interface within the Ovation Distributed Control System architecture, functioning as a standard-capability measurement front-end for process variables such as pressure, flow, level, and temperature. As an Electronics Module (EMOD), it mounts in standard Ovation I/O bases and operates in conjunction with the 1C31206 series Personality Modules (PMODs) to create a complete eight-channel 4-20mA analog input solution.
This module occupies a foundational position in the Ovation Compact I/O family, providing economical analog input capability for general-purpose process monitoring applications. While not offering the 16-bit resolution or high-density packaging of newer Ovation modules, the 1C31203G01 delivers proven reliability and sufficient accuracy for the majority of industrial control loops where extreme precision is not required. Its widespread deployment in legacy Ovation installations makes it a critical component for maintaining operational continuity in mature facilities.
The modular EMOD/PMOD architecture allows the same electronics platform to serve diverse field wiring requirements through appropriate personality module selection. The 1C31203G01 handles the analog-to-digital conversion, basic filtering, and communication functions, while the companion PMOD provides the field-specific termination, surge protection, and current-to-voltage conversion necessary to interface with 4-20mA transmitters.
Core Functionality and Signal Handling
The module provides eight independently isolated analog input channels, each dedicated to measuring 4-20mA current loop signals from field transmitters. A 14-bit analog-to-digital converter digitizes the input signals with ±0.1% full-scale accuracy, providing 16,384 discrete measurement levels that support standard regulatory control and monitoring applications.
Individual channel isolation—typically 250V AC/DC or greater—prevents ground loop currents and ensures that faults on one channel cannot propagate to adjacent channels or back to the controller. While less robust than the 1000V+ isolation of newer high-density modules, this level proves adequate for most general-purpose industrial applications where field devices share common grounding systems.
The 1C31203G01 presents a 250-ohm input impedance to the current loop, converting the 4-20mA signal into a 1-5V voltage for measurement by the ADC. Each channel updates every 250 milliseconds, providing responsive measurement for typical process control loops where dynamics are measured in seconds or minutes rather than milliseconds.
The module requires pairing with a compatible Personality Module (1C31206G01 for standard applications) to complete the field interface. The PMOD provides the physical terminal blocks, individual channel fusing, and surge protection that interface with field wiring, while the EMOD contains the measurement electronics and Ovation bus interface.
Basic diagnostic capabilities include open-loop detection (broken wire indication for 4-20mA circuits) and overrange indication when input signals exceed the configured measurement range. These diagnostics enable operators to identify field wiring faults and transmitter failures before they impact process control.
Platform Heritage and Operational Benefits
As a core component of the Westinghouse Ovation platform now maintained within Emerson’s automation portfolio, the 1C31203G01 represents the proven analog input technology deployed in thousands of industrial facilities worldwide since the 1990s. While superseded by higher-density, higher-resolution modules in new installations, the 1C31203G01 remains essential for maintaining and expanding legacy Ovation systems where compatibility with existing I/O infrastructure is required.
The 14-bit resolution provides sufficient granularity for standard process control applications including tank level monitoring, pressure indication, flow totalization, and temperature measurement. The ±0.1% accuracy supports regulatory control loops where tight tolerances are required, though applications demanding custody-transfer precision or advanced process optimization may benefit from the 16-bit resolution of newer modules.
The module’s mature design and extensive field history provide confidence in long-term reliability for facilities operating Ovation systems on extended lifecycles. Compatibility with standard Ovation power supplies, I/O bases, and engineering tools ensures that spare parts remain available and that maintenance personnel can support these modules using familiar procedures and diagnostic techniques.
Integration with the Ovation control platform provides access to signal values, diagnostic status, and historical trending through standard Ovation Operator Station and Engineering Station interfaces. While lacking some advanced diagnostic features of newer modules, the 1C31203G01 provides the essential functionality required for reliable process monitoring and control.

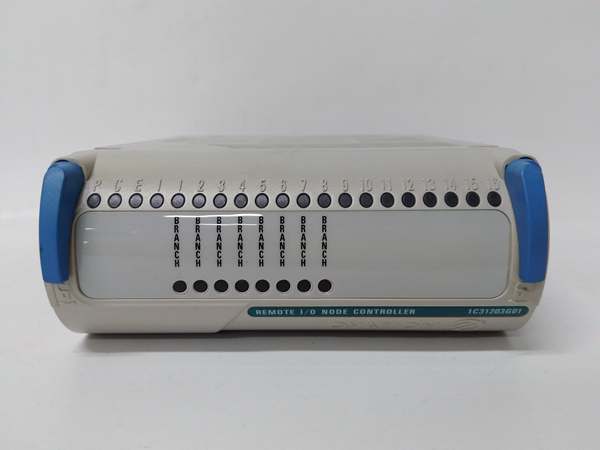

1C31203G01
Part 4: Technical Specifications
-
Model Number: 1C31203G01
-
Manufacturer: Westinghouse Electric Corporation (Emerson Ovation product line)
-
Product Type: 8-Channel Analog Input Electronics Module (EMOD)
-
Number of Channels: 8 isolated analog input channels
-
Input Signal Range: 4-20 mA (current loop)
-
Input Type: 2-wire loop-powered or 4-wire externally powered transmitters
-
ADC Resolution: 14 bits
-
Accuracy: ±0.1% of full scale (±0.1% FSR) at 25°C
-
Input Impedance: 250 Ω (converts 4-20mA to 1-5V for measurement)
-
Channel Isolation: ≥250V AC/DC (channel-to-channel and channel-to-logic)
-
Common Mode Rejection: >100 dB @ 50/60 Hz
-
Normal Mode Rejection: >60 dB @ 50/60 Hz
-
Update Rate: 250 ms per channel
-
Compatible Personality Module: 1C31206G01 (4-20mA Current Input PMOD)
-
Diagnostics: Open circuit detection (broken wire), overrange indication
-
Power Consumption: ≤2.5W typical
-
Operating Temperature: 0°C to 60°C (32°F to 140°F)
-
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
-
Humidity: 0% to 95% RH (non-condensing)
-
Mounting: Standard Ovation Compact I/O base
-
Dimensions: Approximately 12.1 cm × 5.2 cm × 16.6 cm (4.8 in × 2.0 in × 6.5 in)
-
Weight: 0.3 kg to 0.6 kg (0.7 lbs to 1.3 lbs)
-
Certifications: CE, UL, CSA (depending on configuration and revision)
-
Status: Legacy component; available via Emerson certified spares and secondary market
Part 5: Core Features & Customer Value
Proven Reliability for Legacy Systems: The 1C31203G01 benefits from decades of field deployment in power generation, petrochemical, water treatment, and general industrial applications. For facilities operating mature Ovation systems, this proven track record provides confidence in continued operational reliability and reduces the risk of unplanned failures associated with unproven replacement technologies.
Economical Eight-Channel Design: The eight-channel configuration delivers standard analog input capability at economical cost per point, making it suitable for general-purpose monitoring applications where the higher resolution or density of newer modules is not justified. This cost-effectiveness enables comprehensive I/O coverage for large facilities without excessive capital expenditure.
Modular EMOD/PMOD Architecture: The separation of electronics from field termination enables cost-effective maintenance—field wiring faults typically damage only the relatively inexpensive personality module rather than the electronics module. This architecture also allows field reconfiguration for different termination requirements by swapping PMODs rather than replacing complete I/O cards.
Standard 4-20mA Compatibility: Dedicated 4-20mA input optimization ensures seamless integration with the vast installed base of industrial transmitters utilizing this standard. The 250-ohm input impedance provides appropriate loading for transmitter loops while generating sufficient voltage for accurate measurement, accommodating both loop-powered and externally powered transmitter configurations.
Basic Diagnostic Capability: Open-circuit detection identifies broken field wires or powered-down transmitters, while overrange indication alerts operators to process conditions exceeding sensor calibrated ranges. These essential diagnostics support proactive maintenance and prevent undetected measurement failures that could lead to off-spec product or process upsets.

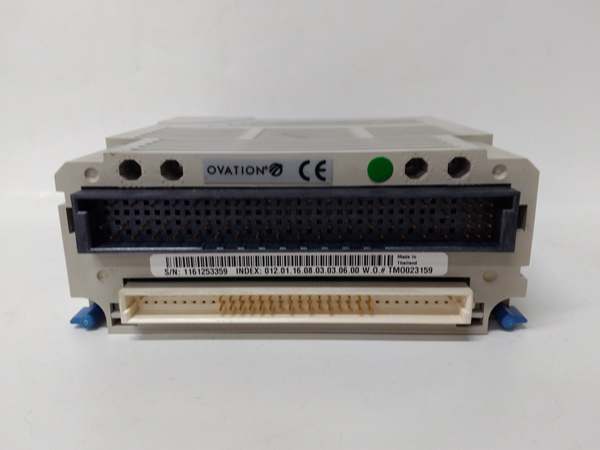

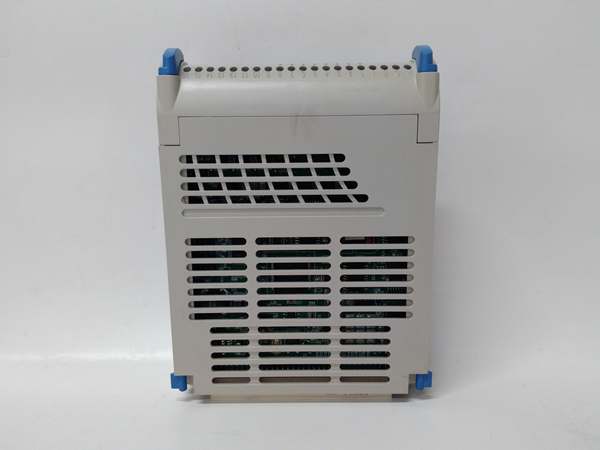

1C31203G01
Part 6: Typical Applications
Power Generation Balance-of-Plant Monitoring: The 1C31203G01 is extensively deployed in coal-fired, gas-fired, and nuclear power plants for monitoring auxiliary system pressures, cooling water temperatures, fuel oil flow rates, and environmental parameters. In these applications, the module provides reliable indication of non-critical parameters where standard accuracy is sufficient, while reserving higher-performance modules for turbine protection and critical control loops.
Water and Wastewater Treatment: Municipal and industrial water treatment facilities utilize the module for monitoring tank levels, filter differential pressures, chemical feed rates, and flow totals. The 4-20mA compatibility accommodates the standard transmitter output used throughout the water industry, while the modular design facilitates rapid replacement during maintenance windows.
General Industrial Process Monitoring: Manufacturing facilities employ the module for monitoring compressed air pressure, hydraulic system pressures, cooling water temperatures, and tank inventories. The economical per-channel cost enables comprehensive monitoring of auxiliary systems that support primary production processes, providing operators with visibility into facility-wide conditions.
HVAC and Building Automation: Commercial and institutional facilities integrate the module into building management systems for monitoring chilled water temperatures, supply air pressures, and energy meter outputs. The 14-bit resolution provides sufficient precision for environmental control applications, while the Ovation platform integration enables unified facility management.
Legacy System Expansion and Maintenance: Facilities with existing Ovation installations utilize the 1C31203G01 for system expansions and I/O additions where maintaining consistency with existing I/O types simplifies spare parts inventory and maintenance training. The module’s compatibility with standard Compact I/O bases ensures seamless integration with both legacy and newer Ovation controller generations.
