Description
System Role and Integration
The 1C31129G03 functions as the analog output interface within the Ovation Distributed Control System architecture, serving as the critical translation layer between digital controller calculations and physical process control elements. As an Electronics Module (EMOD), it mounts directly into the I/O base assembly and works in conjunction with the 1C31132G01 Personality Module to deliver precise current loop signals to field devices such as control valves, variable speed drives, and positioners.
This module occupies a fundamental position in closed-loop control strategies, receiving digital setpoint commands from the Ovation controller node and converting them into standardized 4-20mA or 0-20mA signals that drive final control elements. The G03 revision specifically provides the 0-20mA output range with diagnostic capabilities, distinguishing it from other variants in the 1C31129G0x series that may offer different output ranges or feature sets.
Core Functionality and Signal Handling
The module employs low-power 12-bit serial digital-to-analog converters (DACs) to generate four independent isolated current loop outputs. Each channel updates every 1.5 milliseconds via serial clock and data streams, with opto-isolated interfaces providing 1000V AC/DC isolation between channels and between channels and logic circuitry. This isolation architecture prevents ground loop issues and protects sensitive controller electronics from field-side transients common in industrial environments.
The 1C31129G03 sources current into loops ranging from 0Ω to 750Ω maximum load resistance, accommodating long cable runs to field devices without signal degradation. Onboard diagnostic circuitry continuously monitors output integrity, enabling the Ovation system to detect open circuits, high loop resistance, and module health status—critical for maintaining control availability in continuous process applications.
Platform Heritage and Operational Benefits
As a component of the Westinghouse Ovation platform now maintained within Emerson’s automation portfolio, this module benefits from extensive deployment in power generation and heavy process industries where precise analog control determines operational efficiency and safety. The 12-bit resolution provides sufficient granularity for most process control applications, while the 0.1% guaranteed accuracy at reference temperature ensures tight control tolerance compliance.
The module’s 6W maximum power consumption (current output mode) minimizes thermal loading within densely packed I/O cabinets, reducing cooling requirements and extending adjacent component life. Integration with the Ovation diagnostic ecosystem provides operators with real-time visibility into loop health, enabling predictive maintenance strategies that identify failing field devices before they impact process control.

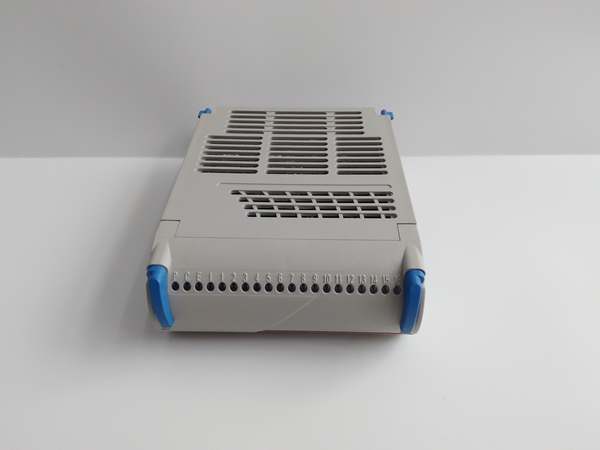

1C31129G03
Part 4: Technical Specifications
-
Model Number: 1C31129G03
-
Manufacturer: Westinghouse Electric Corporation (Ovation product line)
-
Product Type: Analog Output Electronics Module
-
Number of Channels: 4 isolated analog output channels
-
Output Type: 0-20mA current loop (sourcing)
-
Alternative Output Ranges: 0-5V, 0-10V (voltage output modes)
-
DAC Resolution: 12 bits
-
Guaranteed Accuracy: 0.1% of full scale at 25°C
-
Temperature Coefficient: 30 ppm/°C
-
Maximum Update Time: 2 milliseconds
-
Channel Isolation: 1000V AC/DC (channel-to-channel and channel-to-logic)
-
Load Capability: 0Ω minimum; 750Ω maximum (current mode)
-
Voltage Output Loading: 10mA maximum
-
Module Power Consumption: 4W typical, 6W maximum (current output); 2W typical, 3W maximum (voltage output)
-
Operating Temperature: 0°C to 60°C (32°F to 140°F)
-
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
-
Humidity: 0% to 95% RH (non-condensing)
-
Personality Module: Requires 1C31132G01 for complete I/O channel functionality
-
Compatible Base: Standard Ovation I/O base assemblies
-
Diagnostics: Open circuit detection, high loop resistance alarm, module health status
Part 5: Core Features & Customer Value
High-Resolution Analog Conversion: The 12-bit DAC architecture provides 4096 discrete output levels across the 0-20mA range, delivering control resolution sufficient for precise valve positioning and flow control applications. For process engineers, this translates to tighter control loop tuning capability and reduced process variability compared to lower-resolution alternatives, particularly in cascade control strategies where master loop precision directly impacts slave loop stability.
Galvanic Isolation and Noise Immunity: Each output channel maintains 1000V isolation from neighboring channels and from the controller logic ground, preventing ground loop currents from inducing measurement errors or damaging sensitive electronics. In power plant environments where large motor starting transients and switchyard electromagnetic interference are prevalent, this isolation ensures signal integrity without requiring external signal isolators—reducing installation complexity and potential failure points.
Rapid Output Update Rate: The 2-millisecond maximum update time enables responsive control for fast-acting processes such as turbine speed control or anti-surge protection systems. This responsiveness allows the Ovation controller to implement aggressive control algorithms that would be unsuitable for slower I/O modules, improving dynamic performance in critical loops without sacrificing stability margins.
Comprehensive Diagnostic Coverage: The module’s integrated diagnostic capabilities detect open circuits and excessive loop resistance, alerting operators to field wiring failures or device malfunctions before control is lost. For maintenance teams, this eliminates the need for manual loop verification during troubleshooting and enables condition-based maintenance scheduling—reducing unnecessary field inspections while preventing unplanned outages from undetected device failures.

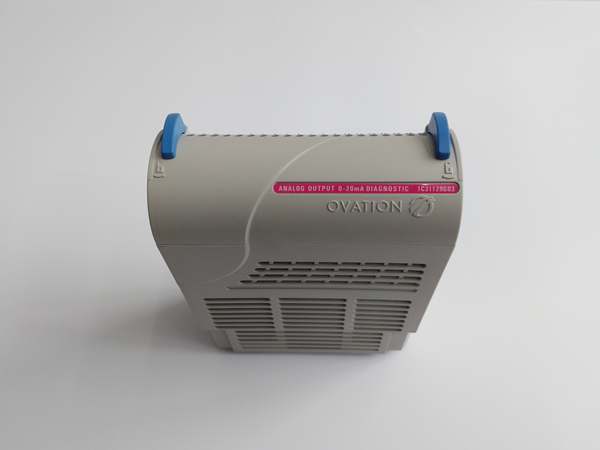

1C31129G03
Part 6: Typical Applications
Power Plant Combustion Control: The 1C31129G03 is extensively deployed in fossil fuel and combined-cycle power plants for precise control of fuel flow control valves. In boiler combustion control systems, the module drives the 4-20mA inputs of pneumatic valve positioners regulating natural gas or fuel oil flow to burners, where the 0.1% accuracy ensures optimal air-fuel ratio maintenance for emissions compliance and thermal efficiency optimization.
Turbine Governor and Auxiliary Control: Within steam and gas turbine control systems, this module manages lubricating oil temperature control valves and seal oil pressure regulators. The fast update rate supports responsive control of these critical auxiliary systems, while the diagnostic capabilities alert operators to valve actuator failures that could lead to bearing damage or hydrogen seal loss in hydrogen-cooled generators.
Water Treatment Chemical Feed Systems: In demineralizer and wastewater treatment facilities, the module controls chemical metering pump stroke adjusters and chlorine dosing valves. The isolated outputs prevent ground loop issues in submerged or wet environments common in these applications, while the 750Ω load capability accommodates the long cable runs between control rooms and remote chemical feed skids.
Pulp and Paper Machine Control: The module finds application in paper machine headbox consistency control and dryer section steam pressure regulation. The 12-bit resolution provides sufficient granularity for basis weight control strategies, while the HART pass-through capability (when paired with compatible personality modules) allows instrumentation technicians to access smart valve positioner diagnostics without interrupting the control signal.
