Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 1C31125G02 |
| Manufacturer | Westinghouse |
| Product Category | Digital Output Module |
| Operating Voltage | 220 V |
| Output Frequency | 50 kHz |
| Number of Channels | 16 channels |
| Output Current | 3.15 A |
| Output Voltage | 250 V AC |
| Communication Protocol | RS-485, Modbus RTU |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature Range | -55°C to +125°C |
| Dimensions (W×H×D) | 40 mm × 25 mm × 12 mm |
| Weight | 0.16 kg |
| Protection Level | IP20 |

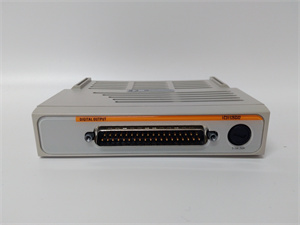

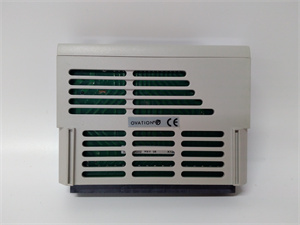

Westinghouse 1C31125G02
Product Introduction
The Westinghouse 1C31125G02 Digital Output Module is a high-performance component designed for industrial automation systems. It offers reliable and efficient digital signal transmission capabilities, making it ideal for applications requiring precise control and real-time monitoring. This module is specifically designed for the Westinghouse Ovation system, ensuring seamless integration and compatibility with existing control systems. With its robust construction and wide operating temperature range, the 1C31125G02 delivers consistent performance even in harsh industrial environments.
Core Advantages and Technical Highlights
High Reliability and Precision: The Westinghouse 1C31125G02 is engineered to provide precise digital output with a high refresh rate, ensuring real-time control and accurate signal transmission. It features 16 output channels, each capable of handling up to 3.15 A at 250 V AC.
Wide Operating Range: The module operates reliably within a wide temperature range of -40°C to +85°C, making it suitable for diverse industrial settings. It also supports a wide voltage range, ensuring compatibility with different power supply requirements.
Fast Response Time: With a fast response time, the 1C31125G02 can output digital signals within a few microseconds, making it ideal for high-speed control applications.
Advanced Communication Capabilities: The module supports RS-485 and Modbus RTU communication protocols, facilitating seamless data exchange and integration with other system components.
Compact and Durable Design: The 1C31125G02 features a compact form factor (40 mm × 25 mm × 12 mm) and lightweight construction (0.16 kg), making it easy to install and maintain. Its IP20 protection rating ensures durability and reliability in industrial environments.

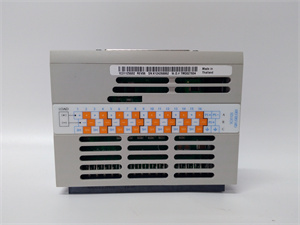

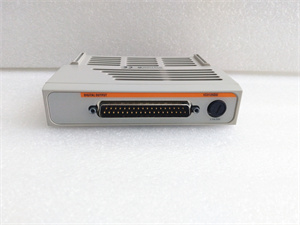

Westinghouse 1C31125G02
Typical Application Scenarios
The Westinghouse 1C31125G02 is widely used in industrial automation systems, particularly in power generation, manufacturing, and process control applications. In power plants, it controls critical equipment such as valves and motors, ensuring reliable operation and reducing downtime. In manufacturing facilities, the 1C31125G02 provides precise control of production processes, enhancing efficiency and productivity. Its ability to handle high-frequency signals and provide real-time control makes it an essential component in modern industrial control systems.
Related Model Recommendations
-
1C31124G01: A related module with similar features, offering enhanced functionality and compatibility with advanced control systems.
-
1C31129G03: An upgraded version with additional diagnostic features, suitable for applications requiring enhanced monitoring and troubleshooting.
-
1C31129G02: A variant with extended temperature range and higher load capacity, suitable for harsh industrial environments.
-
1C31125G01: An earlier version of the 1C31125G02, providing similar digital output capabilities but with fewer channels.
-
1C31125G03: A high-capacity digital output module, ideal for large-scale industrial applications requiring multiple output channels.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Before installing the Westinghouse 1C31125G02, ensure the environment meets the specified temperature and humidity requirements. Prepare the necessary tools, such as a screwdriver and multimeter, and ensure the installation area is free from dust and moisture. Follow the provided installation manual carefully to ensure proper grounding and connection of the module. Always disconnect the power source before starting the installation process to avoid electrical shock.
Maintenance Suggestions: Regularly inspect the 1C31125G02 for signs of damage or wear, such as loose connections or corrosion. Clean the module periodically to remove dust and debris, which can affect performance and longevity. If any issues are detected, such as signal errors or communication failures, consult the troubleshooting guide or contact a professional for assistance. Replace any damaged components promptly to maintain optimal performance and reliability.
Service and Guarantee Commitment
The Westinghouse 1C31125G02 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Our company guarantees the quality of the product, providing a refund or replacement for any manufacturing defects within the warranty period. We offer 24/7 technical support to assist with installation, troubleshooting, and maintenance. Our commitment to quality and customer service ensures that the 1C31125G02 will deliver reliable performance for years to come.
