Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 1B30035H01 |
| Manufacturer | Westinghouse |
| Product Category | PLC I/O Module |
| Operating Voltage | 24V DC |
| Frequency Range | 30 kHz |
| I/O Channels | 128 digital I/O, 32 analog I/O, 4 serial ports |
| Communication Protocols | Ethernet, Modbus, Profibus |
| Operating Temperature Range | -40°C to +70°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (L×W×H) | 28.5 cm × 12.5 cm × 6.3 cm |
| Weight | 0.88 kg |
| Certifications | CE, UL, RoHS |

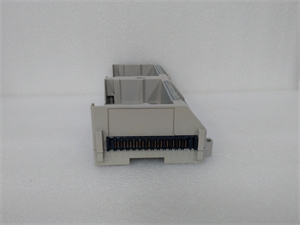

Westinghouse 1B30035H01
Product Introduction
The Westinghouse 1B30035H01 is a high-performance I/O module designed for industrial automation and control systems. It is part of the Westinghouse Ovation series, known for its robustness and scalability in demanding industrial environments. This module provides extensive input/output capabilities, supporting both analog and digital signals, making it ideal for a wide range of applications, including process control, machine automation, and building management.
Core Advantages and Technical Highlights
Powerful and Scalable: The 1B30035H01 features a 32-bit processor and 128 MB of RAM, ensuring high performance and scalability for complex automation tasks.
Extensive I/O Capabilities: The module offers 128 digital I/O channels, 32 analog I/O channels, and 4 serial ports, providing versatile connectivity options for various sensors and actuators.
Advanced Communication Options: It supports multiple communication protocols, including Ethernet, Modbus, and Profibus, ensuring seamless integration with modern control systems.
Robust Design: Engineered to withstand harsh industrial conditions, the 1B30035H01 operates reliably within a wide temperature range of -40°C to +70°C and features an IP65 enclosure rating.
User-Friendly Interface: The module includes a user-friendly interface that simplifies setup and customization according to specific application requirements.

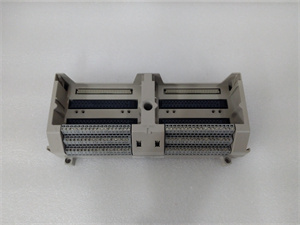

Westinghouse 1B30035H01
Typical Application Scenarios
The Westinghouse 1B30035H01 is widely used in various industrial sectors, including power generation, manufacturing, and process control. In power plants, it monitors critical parameters such as temperature and pressure, ensuring safe and efficient operation. In manufacturing facilities, the module integrates into automated production lines to optimize energy efficiency and equipment status monitoring. Its ability to handle multiple signal types and provide precise control makes it essential for high-precision process control applications.
Related Model Recommendations
-
1B30035H02: An upgraded version with enhanced diagnostic features, ideal for advanced monitoring and troubleshooting.
-
1B30035H03: A variant with extended temperature range and higher load capacity, suitable for harsh industrial environments.
-
1C31113G02: An analog input module offering precise measurement capabilities, suitable for applications requiring high accuracy.
-
1C31125G02: A digital output module with similar communication capabilities, suitable for precise control of actuators and other devices.
-
1C31124G01: A digital input/output module providing versatile control options for industrial automation.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Before installing the Westinghouse 1B30035H01, ensure the environment meets the specified temperature and humidity requirements. Prepare the necessary tools, such as a screwdriver and multimeter, and ensure the installation area is free from dust and moisture. Follow the provided installation manual carefully to ensure proper grounding and connection of the module. Always disconnect the power source before starting the installation process to avoid electrical shock.
Maintenance Suggestions: Regularly inspect the 1B30035H01 for signs of damage or wear, such as loose connections or corrosion. Clean the module periodically to remove dust and debris, which can affect performance and longevity. If any issues are detected, such as signal errors or communication failures, consult the troubleshooting guide or contact a professional for assistance. Replace any damaged components promptly to maintain optimal performance and reliability.
Service and Guarantee Commitment
The Westinghouse 1B30035H01 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Our company guarantees the quality of the product, providing a refund or replacement for any manufacturing defects within the warranty period. We offer 24/7 technical support to assist with installation, troubleshooting, and maintenance. Our commitment to quality and customer service ensures that the 1B30035H01 will deliver reliable performance for years to come.
