Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 1B30023H02 |
| Manufacturer | Westinghouse |
| Product Category | I/O Bus Terminator |
| Operating Voltage | 24 VDC |
| Input Voltage Range | 120 VAC |
| Output Voltage | 24 VDC |
| Power Consumption | Minimal (Passive Device) |
| Communication Protocols | Ethernet, Modbus |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (L×W×H) | 11.4 cm × 5.1 cm × 3.8 cm |
| Weight | 0.1 kg |
| Certifications | CE, UL, RoHS |

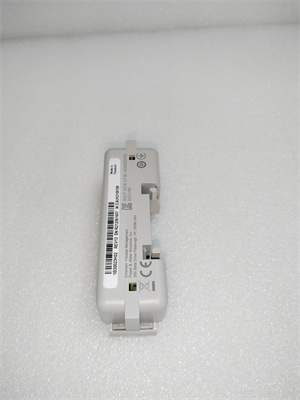

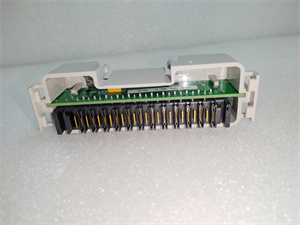

Westinghouse 1B30023H02
Product Introduction
The Westinghouse 1B30023H02 is an I/O Bus Terminator designed for the Ovation/Westinghouse control systems. It ensures proper termination of the I/O bus to maintain signal integrity and prevent communication errors. This module is ideal for industrial environments where reliable signal transmission and control are critical.
Core Advantages and Technical Highlights
Signal Integrity and Communication: The 1B30023H02 ensures proper termination of the I/O bus, maintaining signal integrity and preventing communication errors. This is crucial for maintaining reliable and accurate control in industrial automation systems.
Robust Design: The module is designed to operate reliably in harsh industrial environments, with a wide operating temperature range of -20°C to +70°C and a storage temperature range of -40°C to +85°C. It is also rated for use in G3 class environments as defined by the ISA standard S71.04.
Low Power Consumption: As a passive device, the 1B30023H02 consumes minimal power, making it energy-efficient and suitable for systems with limited power availability.
Compact Size: With dimensions of 11.4 cm × 5.1 cm × 3.8 cm and a weight of only 0.1 kg, the module is compact and lightweight, making it easy to install and integrate into existing systems.
Certifications: The 1B30023H02 is certified to meet stringent industry standards, including CE, UL, and RoHS, ensuring high quality and reliability.
Typical Application Scenarios
The Westinghouse 1B30023H02 is widely used in industrial automation systems, particularly in power plants, manufacturing facilities, and process control applications. It ensures reliable communication and signal integrity in harsh industrial environments, making it an essential component for maintaining system efficiency and reducing downtime.
Westinghouse 1B30023H02
Related Model Recommendations
-
1B30023H01: A related model with similar features, suitable for applications requiring high precision and reliability.
-
1B30023H03: An upgraded version with enhanced diagnostic features, ideal for advanced monitoring and troubleshooting.
-
1C31113G02: An analog input module offering precise measurement capabilities, suitable for applications requiring high accuracy.
-
1C31125G02: A digital output module with similar communication capabilities, suitable for precise control of actuators and other devices.
-
1C31124G01: A digital input/output module providing versatile control options for industrial automation.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Before installing the Westinghouse 1B30023H02, ensure the environment meets the specified temperature and humidity requirements. Prepare the necessary tools, such as a screwdriver and multimeter, and ensure the installation area is free from dust and moisture. Follow the provided installation manual carefully to ensure proper grounding and connection of the module. Always disconnect the power source before starting the installation process to avoid electrical shock.
Maintenance Suggestions: Regularly inspect the 1B30023H02 for signs of damage or wear, such as loose connections or corrosion. Clean the module periodically to remove dust and debris, which can affect performance and longevity. If any issues are detected, such as signal errors or communication failures, consult the troubleshooting guide or contact a professional for assistance. Replace any damaged components promptly to maintain optimal performance and reliability.
Service and Guarantee Commitment
The Westinghouse 1B30023H02 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Our company guarantees the quality of the product, providing a refund or replacement for any manufacturing defects within the warranty period. We offer 24/7 technical support to assist with installation, troubleshooting, and maintenance. Our commitment to quality and customer service ensures that the 1B30023H02 will deliver reliable performance for years to come.
