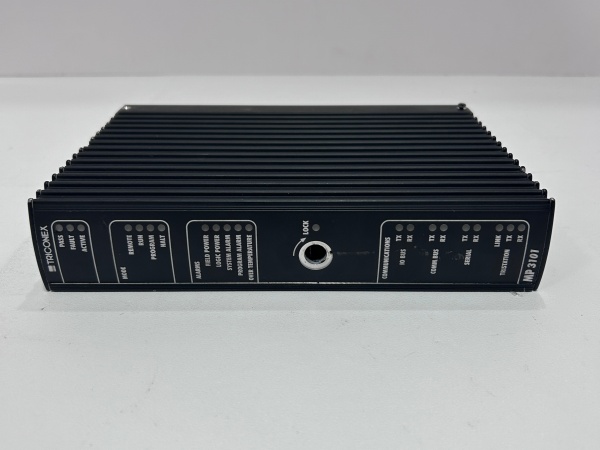

TRICONEX MP3101 | TMR Main Processor In Stock

• Description

Key Technical Specifications

• Architecture: Triple Modular Redundancy (TMR), 2oo3 hardware voting
• Processor: 32-bit Motorola MPC860, 50 MHz
• Memory: 6 MB Flash PROM (program), 4 MB SRAM (data)
• Safety Rating: SIL3 (IEC 61508), FM/CSA/ATEX certified
• Logic Scan Time: <20 ms (application-dependent)
• I/O Capacity: 2000 DI/DO, 1000 AI/AO points
• Operating Temp: -40°C to +70°C
• Power Supply: 24VDC (18–30V), 30W typical
• Communications: TriBus (backplane), Ethernet, RS-232/485
• Hot-Swap: Supported (Trident chassis)
• Dimensions: 19” rack-mount, 1 slot; weight ~2.3 kg

Product Introduction

TRICONEX is the TMR main processor for Trident safety systems. It runs critical safety logic, processes all I/O, and coordinates system diagnostics in SIS/ESD applications.

Its 2oo3 voting eliminates single points of failure. The module’s 32-bit CPU and <20ms scan time deliver fast, deterministic response for high-hazard processes.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Verify OEM part number, serial number, and hologram; check PCB for burns, bent pins, or cold solder joints.
2. Live Testing: Seat in Trident chassis; apply 24VDC; confirm PASS LED; run 24-hour logic cycle with I/O simulation.
3. Electrical Testing: Measure 24VDC power draw; verify TriBus communication integrity; check isolation between logic and chassis.
4. Firmware/Config Backup: Record firmware revision (e.g., v5.1.3); save logic program and I/O mapping via TriStation 1131.
5. Final QC & Packaging: Seal in anti-static bag; apply QC tag with test date; ship in shock-absorbent case with configuration report.

Installation Pitfalls & Guide (Engineer to Engineer)

• ❗ Firmware Rev Mismatch: Mixing firmware versions causes voting errors and system crashes. Match replacement module rev to the system’s TriStation version.
• ❗ Backplane Compatibility: only works in Trident chassis. It will not fit or operate in Tricon (v8–v10) or Trident II racks.
• ❗ Power Supply Overload: Adding the unit increases rack load by ~30W. Verify 24VDC supply headroom and circuit breaker rating.
• ❗ ESD Damage: Ungrounded handling fries TMR logic chips. Always use ESD wrist strap and grounded mat; $5000+ modules at risk.
• ❗ Logic Program Loss: Config is stored in the module’s Flash, not the chassis. Back up logic before replacement; lost programs require reload via TriStation.

Replacement Guide:

1. Pre-install: Confirm system safe state; back up logic; power down rack; apply ESD.
2. Removal: Extract old module; label TriBus and power cables; note DIP switch settings.
3. Install: Seat new module firmly; set switches per notes; reconnect cables; restore 24VDC.
4. Power-on Test: Verify PASS LED; confirm TMR voting health; download logic if needed; run full I/O test.

TRICONEX MP3101

FAQ (Frequently Asked Questions)

Q: Is hot-swappable?A: Yes, in Trident chassis. Hot-swap uses TMR voting to avoid downtime; always confirm system firmware supports hot-swap before removal.

Q: What’s the warranty period?A: New original units carry a 12-month OEM warranty. Refurbished parts include a 6-month functional warranty; excludes on-site labor.

Q: Can it operate in simplex or dual mode?A: No. requires three units for TMR 2oo3 voting. Simplex/dual configurations violate SIL3 safety requirements.

Q: What software is required for programming?A: TriStation 1131. It loads logic, synchronizes triplicated processors, and runs diagnostics; no other software is compatible.

Q: What causes the FAULT LED to stay on?A: Common triggers: firmware mismatch, TriBus communication loss, voting mismatch, or power supply issues. Use TriStation diagnostics to isolate.

Q: Is obsolete?A: Not yet. It’s supported in current Trident systems. Check Schneider Electric for end-of-life notifications.

Q: What’s the difference between and MP3001?A: = Trident TMR processor (SIL3, 50MHz). MP3001 = older Tricon processor; different pinout, speed, and chassis compatibility.
