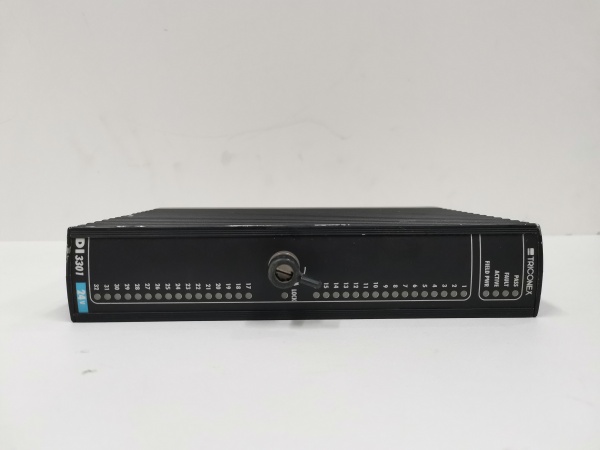

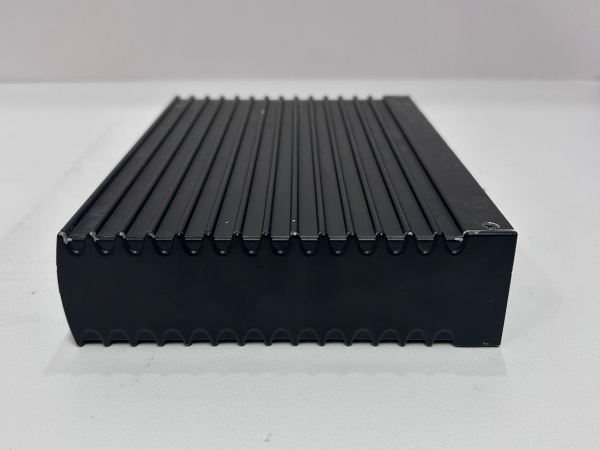

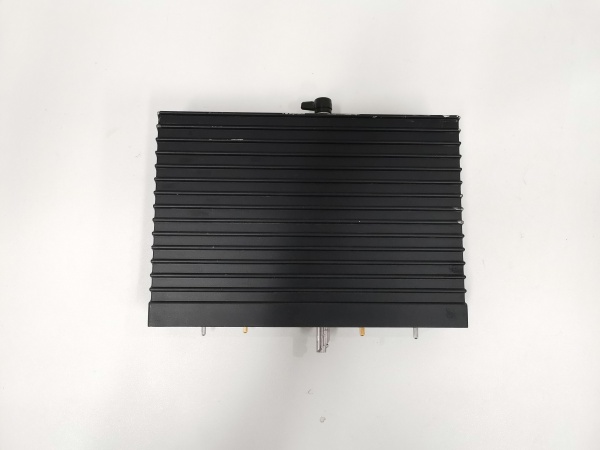

TRICONEX is a 32-point digital input module built for Tricon Trident safety instrumented systems (SIS). It reads binary signals from switches, relays, and sensors, then transmits triplicated data to the main controller for voting and fault-tolerant processing.
Its TMR design ensures no single point of failure. Integrated diagnostics validate every channel, while hot-swap capability cuts downtime during replacement. This unit is certified for SIL3 safety loops in process, power, and oil/gas applications.
QA & Testing SOP (Transparency Building)
Incoming Inspection: Cross-check part/serial numbers against Schneider records; inspect casing, connectors, and pins for damage. Verify anti-counterfeit labels.
Live Testing: Install in a Tricon Trident chassis; apply 24VDC and verify status LEDs. Perform 24-hour continuous scan test with signal simulation on all 32 channels.
Electrical Testing: Use Fluke 115 to confirm input voltage/current; verify isolation resistance >10MΩ between field and logic sides.
Firmware/Config Backup: Record exact firmware revision; document DIP switch settings and channel configuration.
Final QC & Packaging: Place in anti-static bag; attach QC test tag; pack in shock-resistant case for shipping.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Backplane Keying Mismatch: uses mechanical keying. Forcing into a wrong slot damages both module and backplane. Match key profile before insertion.
❗ Field Voltage Overstress: Applying >33VDC destroys input circuitry. Verify field power is 15–30VDC before wiring.
❗ Common-Mode Ground Loops: Multiple field grounds create offset voltages. Use isolated sensors or inter-channel isolators for long cable runs.
❗ Hot-Swap Misuse: Hot-swap works only in Trident v10+ chassis. Swapping in older racks causes bus errors and system faults.
❗ ESD Damage: Unprotected handling fries input ASICs. Always use ESD wrist strap and grounded mat; even small static pulses can render the module unrepairable.
Replacement Guide:
Pre-install: Set SIS to safe state; label all field cables; apply ESD protection.
Removal: Extract faulty module; photograph DIP switches and wiring.
Install: Align keying; seat firmly; set switches to match photos; reconnect cables.
Power-on Test: Restore power; check LEDs; simulate signals on all channels; confirm TMR voting and diagnostics active.
Triconex DI3301
FAQ (Frequently Asked Questions)
Q: Does support hot swapping?A: Yes, on Trident v10+ chassis. The TMR backplane maintains I/O continuity during swap; no system shutdown needed.
Q: What’s the warranty coverage?A: New original units carry 12-month OEM warranty. Refurbished units include 6-month functional warranty; on-site labor is excluded.
Q: Can work on older Tricon (non-Trident) systems?A: No. Backplane protocol and keying differ. It will not initialize or communicate with legacy Tricon racks.
Q: Why do some channels show intermittent faults?A: Ground loops from unisolated field wiring are the top cause. Add signal isolators for runs across separate grounding zones.
Q: Is configuration lost during replacement?A: No. Channel mapping and diagnostics reside in the main controller. No reconfiguration is required after swap.
Q: Is end-of-life?A: No. It remains fully supported for Trident v10 platforms. Contact Schneider Electric for formal EOL notices.
Q: What’s the maximum cable length for inputs?A: Up to 1000m with shielded twisted pair, provided voltage drop is <2VDC and noise is filtered.
