Manufacturer: Modules Part number: 8312
Our extensive Modules catalogue, including
: 8312
, is available now for dispatch to the worldwide.
Brand: Triconex
The listed price is not final; the actual selling price is negotiable based on current market conditions.
Backplane Interface: Proprietary Tricon Sync Link (TSL)
Operating Temp: 0°C to +60°C
Power Draw: ≤8W (24VDC backplane)
Hot-Swap: Supported (Tricon chassis v8–v10)
Dimensions: 19” rack-mount; 1 slot width
Weight: ~1.2kg
Product Introduction

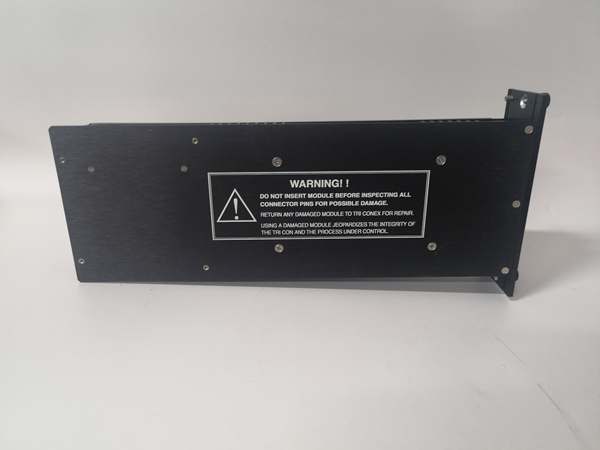

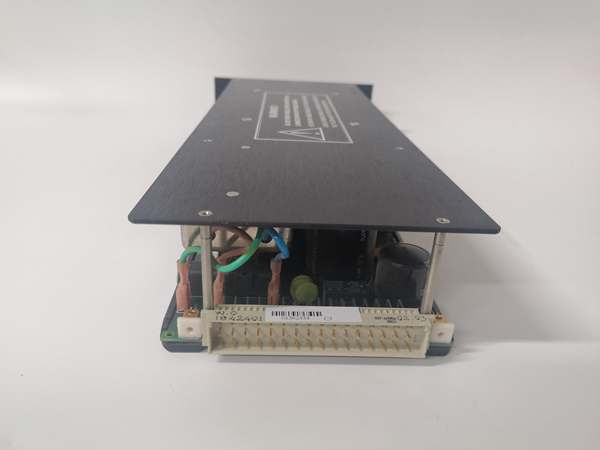

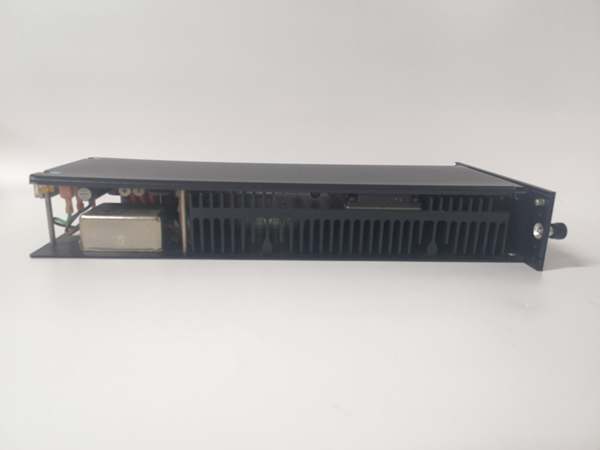

TRICONEX 8312 is a 16-channel safety digital output module for Tricon TMR SIS systems. It provides hardwired, fail-safe actuation for critical safety devices in high-hazard processes.
Its TMR design eliminates single points of failure. Every output command undergoes 2oo3 voting, ensuring safe operation even with internal component faults.
QA & Testing SOP (Transparency Building)
Incoming Inspection: Verify OEM part number, serial number, and hologram; inspect PCB for burns, bent pins, or cold solder joints.
Live Testing: Seat in Tricon chassis; apply 24VDC; confirm PASS LED; run 24-hour cycle test on all 16 channels.
Electrical Testing: Verify 2500Vrms isolation between channels and backplane; check for leakage current <1µA.
Firmware/Config Backup: Record firmware revision (e.g., v4.2.1); save I/O voting config and channel mapping.
Final QC & Packaging: Seal in anti-static bag; apply QC tag with test date; ship in shock-absorbent case.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Firmware Rev Mismatch: Mixing 8312 firmware versions causes voting errors and intermittent faults. Match replacement module rev to the system.
❗ Backplane Compatibility: 8312 only works in Tricon v8–v10 chassis. It will not fit or operate in Trident or other racks.
❗ Wiring Polarity Errors: Reversing 24VDC on field terminals damages output transistors. Label wires before disconnecting.
❗ Overload Per Channel: Exceeding 100mA per channel triggers current limiting and FAULT LED. Calculate load resistance before hookup.
❗ ESD Damage: Ungrounded handling fries TMR logic chips. Always use ESD wrist strap and grounded mat.
Replacement Guide:
Pre-install: Confirm system is in safe state; power down rack; apply ESD protection.
Removal: Extract old module; label field wiring; photograph DIP switch settings.
Install: Seat new module firmly; set switches per photo; reconnect wiring with correct polarity.
Q: Is 8312 hot-swappable?A: Yes, in Tricon v8–v10 chassis. Hot-swap is supported via TMR backplane voting; always confirm system firmware supports hot-swap.
Q: What’s the warranty period?A: New original units carry a 12-month OEM warranty. Refurbished parts include a 6-month functional warranty; excludes on-site labor.
Q: Can it drive 120VAC loads directly?A: No. Outputs are rated for 24/48VDC only. Use interposing relays for AC loads.
Q: What’s the difference between 8312 and 8311?A: 8312 = 16-channel DO (SIL3, TMR). 8311 = 8-channel high-power DO; different pinout and current ratings.
Q: How does TMR voting work on outputs?A: Three independent circuits process each command. Output activates only if at least two circuits agree (2oo3 voting).
Q: Is 8312 obsolete?A: Not yet. It’s still supported in current Tricon systems. Check with OEM for end-of-life notifications.
Q: What causes the FAULT LED to stay on?A: Common triggers: channel overload, wiring short, voting mismatch, or firmware rev mismatch. Use Tricon diagnostic software to isolate.
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
