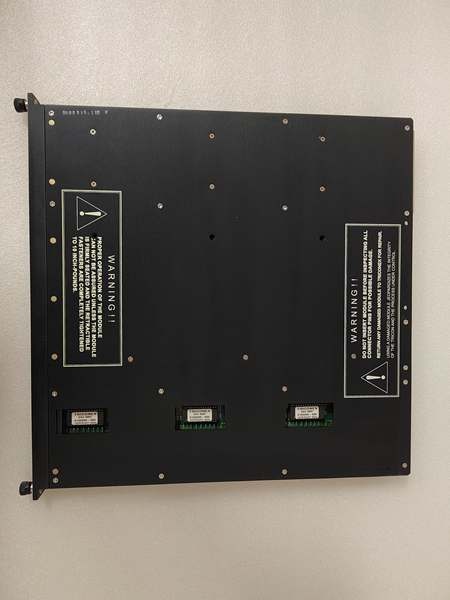

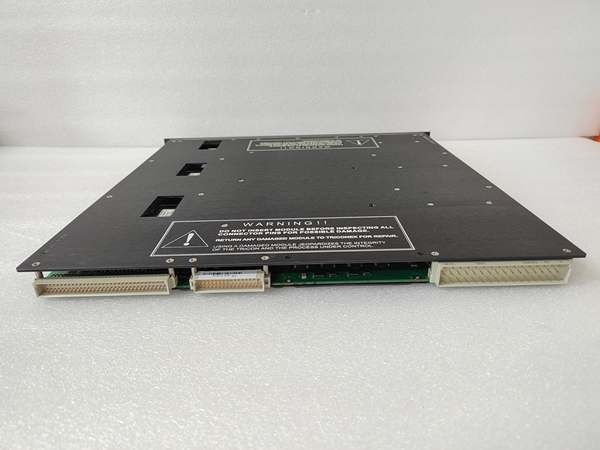

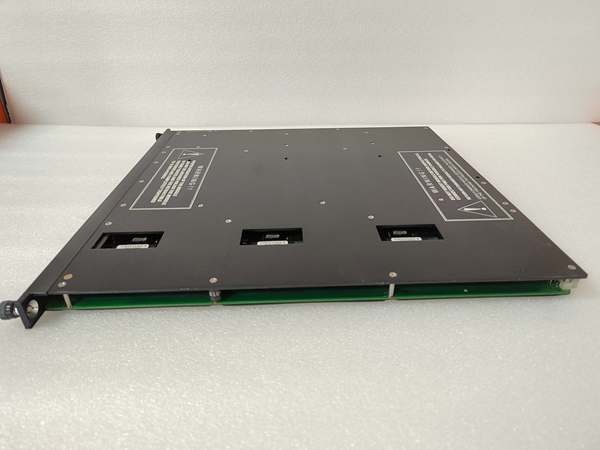

TRICONEX 3805E | 8-Channel Analog Output Module In Stock

• Description

Key Technical Specifications

• Channel Count: 8 independent analog outputs
• Output Ranges: 4-20mA (+6% overrange) | 0-10VDC
• Resolution: 12-bit DAC
• Accuracy: ≤±0.25% FSR (4-20mA, 0–60°C)
• Response Time: ≤2ms typical
• Safety Rating: SIL3 (TMR triple modular redundancy)
• Power Supply: 24VDC (18–30V range)
• Power Draw: ≤5W
• Operating Temp: 0°C to 60°C (32°F–140°F)
• Isolation: Channel-to-chassis isolation; DC-coupled
• Diagnostics: PASS/FAULT/ACTIVE/LOAD indicators
• Dimensions: 127×95×127mm; weight ~0.5kg

Product Introduction

TRICONEX 3805E is an 8-channel analog output module built for Triconex TMR safety systems. It delivers precise, stable analog signals to final control elements in critical processes.

Its TMR architecture ensures fault tolerance without downtime. The module’s 12-bit resolution and ≤2ms response support tight process control in ESD and SIS applications.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Verify OEM part number, serial number, and anti-counterfeit labels; check PCB for burns, bent pins, or component damage.
2. Live Testing: Power on with 24VDC; confirm PASS LED; perform comms handshake with Triconex backplane; run 24-hour load test cycling all channels.
3. Electrical Testing: Measure isolation resistance >10MΩ between channels and chassis; verify 24VDC ground integrity.
4. Firmware/Config Backup: Record exact firmware revision; photograph DIP switch and jumper settings; save I/O configuration file.
5. Final QC & Packaging: Apply anti-static bag and QC tag; include test report and configuration photo; ship in shock-absorbent casing.

Installation Pitfalls & Guide (Engineer to Engineer)

• ❗ Firmware Rev Mismatch: Mixing 3805E firmware revisions causes backplane comms timeouts. Always match replacement module firmware to the system revision.
• ❗ DIP Switch/Jumper Errors: Incorrect switch settings disable channels or break TMR voting. Photograph the old module’s switches before removal.
• ❗ Wiring Incompatibilities: 4-20mA and 0-10V share terminals; miswiring damages field devices. Confirm output type in software before connecting loads.
• ❗ Power Draw Changes: Adding this unit increases rack load by ~5W. Verify 24VDC supply headroom and circuit breaker rating.
• ❗ ESD Dangers: Ungrounded techs can destroy $2000 modules. Always wear ESD wrist strap and work on grounded mats.

Replacement Guide:

1. Pre-install: Power down rack; set ESD protection; label all wiring.
2. Removal: Extract old module; photograph switch settings; disconnect field wiring.
3. Install: Seat new module; set DIP switches per photo; reconnect wiring.
4. Power-on Test: Restore power; confirm PASS LED; run channel output test; verify TMR voting status.

Triconex 3805E

FAQ (Frequently Asked Questions)

Q: Is 3805E hot-swappable?A: Yes, in Triconex TMR systems. Hot-swap is supported because the backplane uses fault-tolerant voting; always confirm system firmware supports hot-swap before removal.

Q: What’s the warranty period?A: New original units carry a 12-month OEM warranty. Refurbished parts include a 6-month functional warranty; exclude on-site labor.

Q: Can it be used in non-Triconex systems?A: No. The module uses a proprietary TMR backplane interface. It will not operate in standard PLC/DCS racks.

Q: What’s the difference between 3805E and 3806E?A: 3805E = 8-channel analog output (4-20mA/0-10V). 3806E = 4-channel high-density analog output; different pinout and power requirements.

Q: How do I recover lost configuration?A: Config is stored in the host Triconex controller, not the module. Replace the module; download the saved configuration from the controller to restore operation.

Q: Is 3805E obsolete?A: Not yet. It’s still supported in current Triconex TMR systems. Check with your OEM for end-of-life notifications.

Q: What load resistance is allowed for 4-20mA outputs?A: Maximum 500Ω per channel. Exceeding this causes current limiting and FAULT LED activation.
