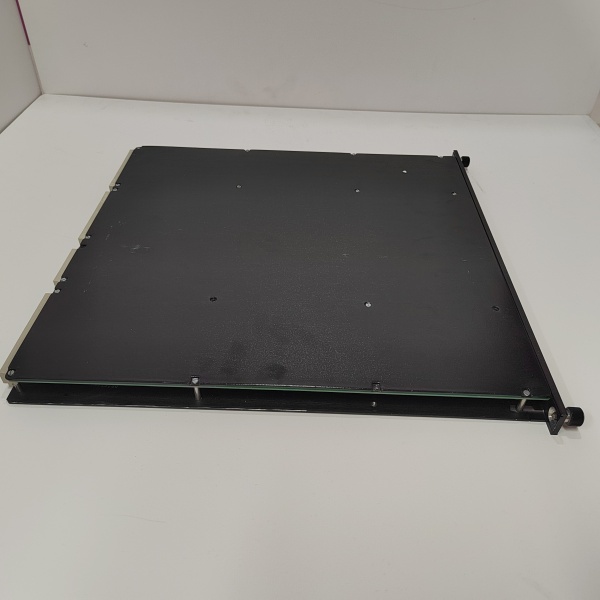

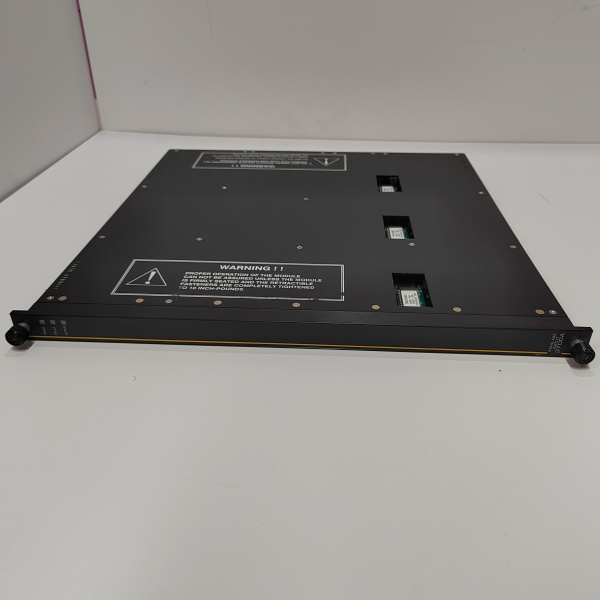

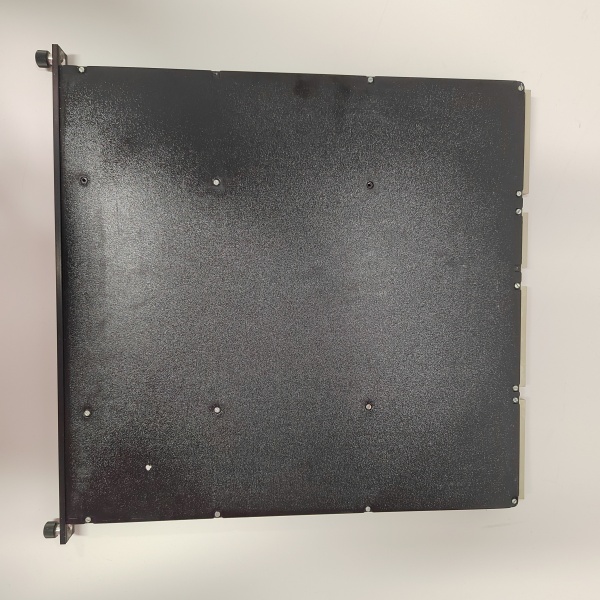

TRICONEX 3700A is a 32-channel differential analog input module for Tricon safety instrumented systems (SIS). It converts field sensor voltages (0–5V DC) into triplicated digital data for safety logic processing.
Its TMR design eliminates single points of failure. The unit delivers 12-bit precision with <0.15% full-scale error, while integrated overrange protection and noise rejection ensure stable data in harsh industrial environments. This device is certified for SIL3 loops in oil/gas, chemical, and power applications.
QA & Testing SOP (Transparency Building)
Incoming Inspection: Cross-reference part/serial numbers against Schneider records; inspect casing, connectors, and pins for damage. Verify anti-counterfeit labels.
Live Testing: Install in a Tricon chassis; apply 24VDC and verify status LEDs. Perform 24-hour continuous input test with precision voltage sourcing on all 32 channels.
Electrical Testing: Use Fluke 115 to confirm power draw; verify isolation resistance >10MΩ between field and logic sides.
Firmware/Config Backup: Record exact firmware revision; document channel range and calibration settings.
Final QC & Packaging: Place in anti-static bag; attach QC test tag; pack in shock-resistant case for shipping.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Backplane Keying Mismatch: 3700A uses unique mechanical keying. Forcing into wrong slot damages module and backplane. Match key profile before insertion.
❗ Common Mode Voltage Exceeded: Inputs tolerate ±12V common-mode max. Exceeding this causes data corruption and possible channel damage.
❗ Ground Loop Errors: Unisolated field grounds create offset drift. Use isolated sensors or signal isolators for long cable runs.
❗ Hot-Swap Restrictions: Hot-swap works only in Tricon v10+ chassis. Swapping in older racks causes bus errors and system faults.
❗ ESD Damage: Unprotected handling fries input amplifiers. Always use ESD wrist strap and grounded mat; even small static pulses can render the module unrepairable.
Replacement Guide:
Pre-install: Set SIS to safe state; label all field cables; apply ESD protection.
Removal: Extract faulty module; photograph wiring and DIP switch settings.
Install: Align keying; seat firmly; set switches to match photos; reconnect cables.
Power-on Test: Restore power; check LEDs; verify input accuracy and diagnostics on all 32 channels.
TRICONEX 3700A
FAQ (Frequently Asked Questions)
Q: Does 3700A support hot swapping?A: Yes, on Tricon v10+ chassis. The TMR backplane maintains I/O continuity during swap; no system shutdown needed.
Q: What’s the warranty coverage?A: New original units carry 12-month OEM warranty. Refurbished units include 6-month functional warranty; on-site labor is excluded.
Q: Can 3700A work on older Tricon (non-Trident) systems?A: No. Backplane protocol and keying differ. It will not initialize or communicate with legacy Tricon racks.
Q: Why do readings drift in high-noise areas?A: Ground loops or excessive common-mode voltage are top causes. Add signal isolators and ensure proper field grounding.
Q: Is configuration lost during replacement?A: No. Channel mapping and calibration data reside in the main controller. No reconfiguration is required after swap.
Q: Is 3700A end-of-life?A: No. It remains fully supported for Tricon v10 platforms. Contact Schneider Electric for formal EOL notices.
Q: What’s the maximum cable length for inputs?A: Up to 300m with shielded twisted pair, provided common-mode voltage is kept within ±12V and noise is filtered.
