TRICONEX 3664 | 32-Channel Digital Output Module, SIL3, In Stock

• Description

Description

Product Core Brief

• Model: 3664
• Brand: TRICONEX (Schneider Electric)
• Series: Tricon SIS (Safety Instrumented System)
• Core Function: 32-channel supervised 24VDC digital output for TMR safety control
• Product Type: Digital Output (DO) Module
• Key Specs: 32 channels | 24VDC | 2A continuous/10A surge | SIL3 (IEC 61508)
• Note: New Original, In Stock, USA manufactured, TMR voting architecture

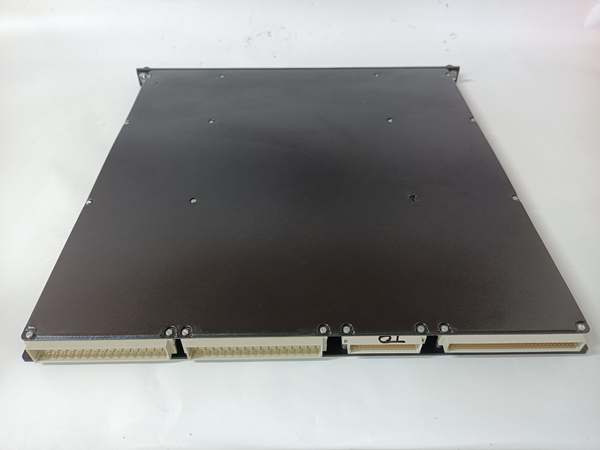

TRICONEX 3664

Key Technical Specifications

• Channels: 32 commoned digital outputs
• Output Voltage: 24VDC (16–30VDC range; max 36VDC)
• Current Rating: 2A continuous per channel; 10A surge (10ms)
• Voltage Drop: <1.5VDC typical
• Response Time: ≤2ms
• Isolation: 1500VDC between channels
• Safety Level: SIL3 (IEC 61508), TÜV certified
• Architecture: Triple Modular Redundancy (TMR), 2-out-of-3 voting
• Diagnostics: Per-channel status, module fault, field alarm, load/fuse monitoring
• Operating Temp: -40°C to +85°C
• Power Consumption: <10W
• Dimensions: 490 × 453 × 68 mm
• Weight: ~3.2 kg

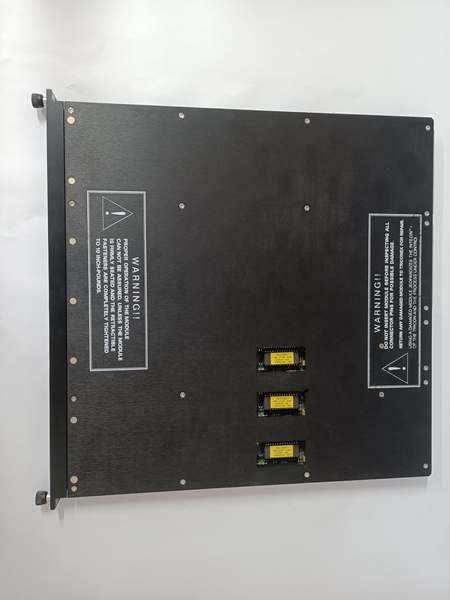

  TRICONEX 3664

FAQ (Frequently Asked Questions)

Q: Is the TRICONEX 3664 hot-swappable?A: Yes, but only in Tricon v10/v11 systems. Hot-swapping is allowed, but isolate field loads first to prevent voltage spikes.

Q: Can it drive 110VAC loads directly?A: No. The module is 24VDC only. Use interposing relays for AC loads to avoid damage.

Q: What happens if a channel fails?A: TMR voting isolates the faulty channel; the module continues operating with the remaining two channels. It logs a fault alarm for maintenance.

Q: Does it require external fuses?A: No. The 3664 has self-protecting circuitry per channel. External fuses are not needed and may interfere with diagnostics.

Q: What’s the difference between 3664 and 3674?A: The 3664 is 24VDC; the 3674 is 48VDC. They share the same pinout and form factor but have different voltage ratings.

Q: What warranty is included?A: 12-month manufacturer warranty covering material and workmanship defects. Defective units are replaced at no cost if returned within the warranty period.

Q: Can I use it in non-Tricon systems?A: No. The 3664 uses a proprietary backplane interface and TMR logic specific to Tricon SIS platforms. It is not compatible with other DCS/PLC systems.
