TRICONEX 3624 | 16-Ch Supervised Digital Output In Stock

• Description

Key Technical Specifications

• Architecture: Triple Modular Redundancy (TMR), 2oo3 voting
• Output Channels: 16 supervised, commoned-return
• Nominal Voltage: 24VDC; operating range 16–30VDC; max 33VDC
• Output Current: 0.7A continuous/channel; 4.8A surge (10ms)
• On-State Drop: <1.5VDC typical
• Isolation: 1500VDC channel-to-logic; 500VDC functional-to-protective earth
• Diagnostics: Load open/short, field power loss, loopback monitoring (1ms scan)
• Indicators: Per-channel ON/OFF; module PASS/FAULT/ACTIVE; POWER/LOAD alarms
• Operating Temp: -40°C to +70°C
• Power Draw: <10W (logic power)
• Safety Rating: IEC 61508 SIL3, FM, CSA, ATEX certified
• Dimensions: 228×178×112mm; weight ~1kg

Product Introduction

TRICONEX 3624 is a 16-channel supervised digital output module for Tricon safety instrumented systems (SIS). It drives 24VDC loads like solenoids, relays, and motor starters while continuously verifying circuit health.

Its TMR design eliminates single points of failure. Per-channel diagnostics detect open/short circuits and power loss, while hot-swap capability enables online replacement without shutdown. This unit is certified for SIL3 safety loops in process, power, and oil/gas applications.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference part/serial numbers against Schneider records; inspect casing, connectors, and pins for damage. Verify anti-counterfeit labels.
2. Live Testing: Install in a Tricon chassis; apply 24VDC and verify status LEDs. Perform 24-hour continuous output test with load simulation on all 16 channels.
3. Electrical Testing: Use Fluke 115 to confirm voltage/current; verify isolation resistance >1500VDC between channels and logic side.
4. Firmware/Config Backup: Record exact firmware revision; document DIP switch settings and channel configuration.
5. Final QC & Packaging: Place in anti-static bag; attach QC test tag; pack in shock-resistant case for shipping.

Installation Pitfalls & Guide (Engineer to Engineer)

• ❗ Backplane Keying Mismatch: 3624 uses unique mechanical keying. Forcing into wrong slot damages module and backplane. Match key profile before insertion.
• ❗ Overvoltage Damage: Applying >33VDC destroys output transistors. Verify field power is 16–30VDC before wiring.
• ❗ Underload Conditions: Loads <30mA trigger false LOAD alarms. Add dummy loads for low-current devices.
• ❗ Hot-Swap Restrictions: Hot-swap works only in Tricon v10+ chassis. Swapping in older racks causes bus errors and system faults.
• ❗ ESD Damage: Unprotected handling fries output drivers. Always use ESD wrist strap and grounded mat; even small static pulses can render the module unrepairable.

Replacement Guide:

1. Pre-install: Set SIS to safe state; label all field cables; apply ESD protection.
2. Removal: Extract faulty module; photograph DIP switches and wiring.
3. Install: Align keying; seat firmly; set switches to match photos; reconnect cables.
4. Power-on Test: Restore power; check LEDs; verify output switching and diagnostics on all channels.

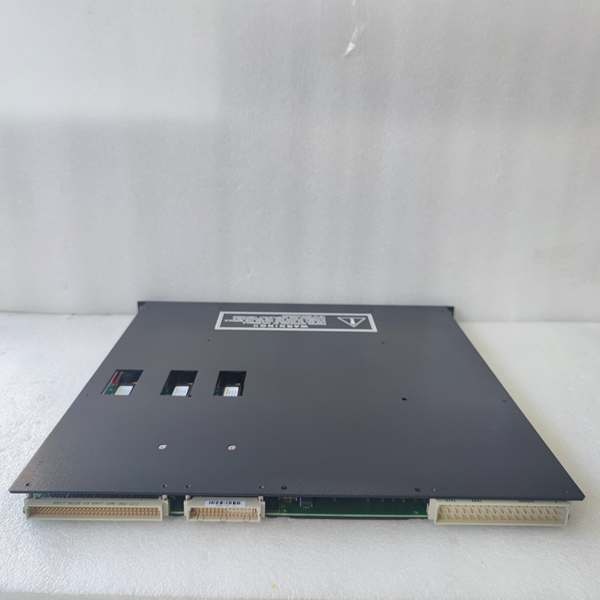

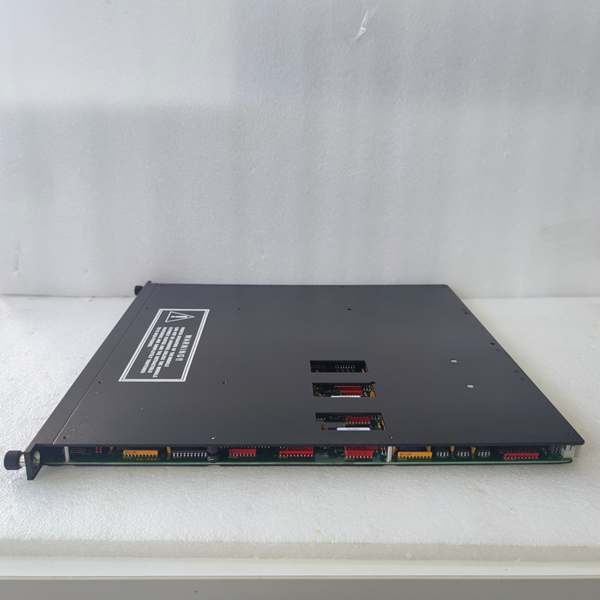

   TRICONEX 3624

FAQ (Frequently Asked Questions)

Q: Does 3624 support hot swapping?A: Yes, on Tricon v10+ chassis. The TMR backplane maintains I/O continuity during swap; no system shutdown needed.

Q: What’s the warranty coverage?A: New original units carry 12-month OEM warranty. Refurbished units include 6-month functional warranty; on-site labor is excluded.

Q: Can 3624 work on older Tricon (non-Trident) systems?A: No. Backplane protocol and keying differ. It will not initialize or communicate with legacy Tricon racks.

Q: Why do channels show intermittent LOAD alarms?A: Underload (<30mA) or loose wiring are top causes. Add dummy loads and torque terminals to spec.

Q: Is configuration lost during replacement?A: No. Channel mapping and diagnostics reside in the main controller. No reconfiguration is required after swap.

Q: Is 3624 end-of-life?A: No. It remains fully supported for Tricon v10 platforms. Contact Schneider Electric for formal EOL notices.

Q: What’s the maximum cable length for outputs?A: Up to 500m with shielded twisted pair, provided voltage drop is <1.5VDC and noise is filtered.
