Description
Product Core Brief
- Model: 3511
- Brand: TRICONEX (Schneider Electric)
- Series: Tricon SIS (Safety Instrumented System)
- Core Function: High-speed pulse/frequency input for rotating machinery (turbines, compressors)
- Product Type: Pulse Input (PI) Module
- Key Specs: 8 isolated channels | TMR (2oo3) | SIL3 | 1Hz–10kHz | 16-bit
- Status: Active, New Original Available

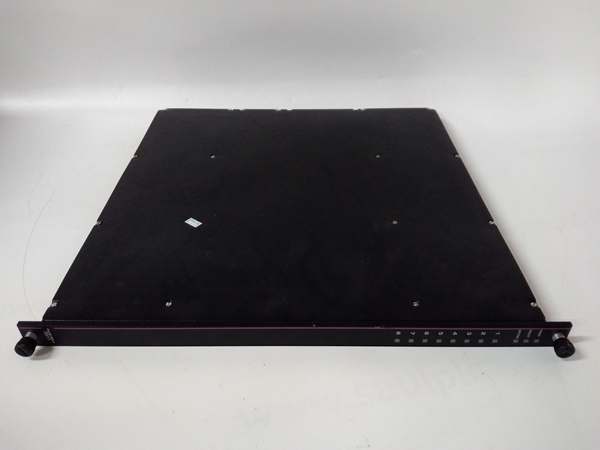

3511
Key Technical Specifications
- Channels: 8 non-commoned, isolated inputs
- Signal Types: Magnetic pickup (MPU) pulses, sine/square waveforms
- Frequency Range: 1Hz–10kHz
- Pulse Width: 100μs–100ms
- Resolution: 16-bit
- Accuracy: ±0.01% (1kHz–2kHz range)
- Update Rate: 25ms typical
- Isolation: 1500VDC channel-to-backplane
- Common Mode Voltage: ±100VDC peak-to-peak
- Input Impedance: >8kΩ (20kΩ typical)
- Operating Temp: -40°C to +70°C
- Safety Rating: SIL3 (IEC 61508), TÜV/FM certified
- Redundancy: Triple Modular Redundancy (TMR), 2oo3 voting
- Power: 24VDC backplane, ~4.5W
- Dimensions: 128 × 128 × 29mm
- Weight: ~0.25kg
Product Introduction
TRICONEX 3511 is a safety-critical pulse input module for Tricon SIS platforms, built for high-integrity speed and frequency monitoring of rotating equipment. It interfaces with magnetic pickups and pulse transmitters to measure turbine/compressor speed, flow, and position in ESD and overspeed protection loops.
The unit’s TMR architecture eliminates single points of failure, while 16-bit precision and 10kHz bandwidth deliver accurate, noise-immune pulse measurement. AC-coupled differential inputs reject common-mode noise in motor-heavy environments.
QA & Testing SOP (Transparency Building)
- Incoming Inspection: Verify OEM part number, hologram, and serial number against TRICONEX databases; check for bent pins, cracked casing, or burned connectors; cross-reference lot codes for counterfeit prevention.
- Live Testing: Insert into certified Tricon test chassis; establish comms via TriStation; inject 1Hz–10kHz pulse signals (Fluke 5500 calibrator); validate frequency accuracy and fault detection (open/short).
- Electrical Testing: Use Fluke 115 to verify 24VDC draw; measure isolation resistance >10MΩ between field and logic sides; confirm chassis ground <0.1Ω.
- Firmware/Config Backup: Record exact firmware revision (e.g., v4.1.3); photograph DIP switch settings; save channel configuration files to secure server.
- Final QC & Packaging: Apply anti-static bag and tamper-evident QC tag; include test report and calibration certificate; ship in climate-controlled, shock-absorbent packaging.

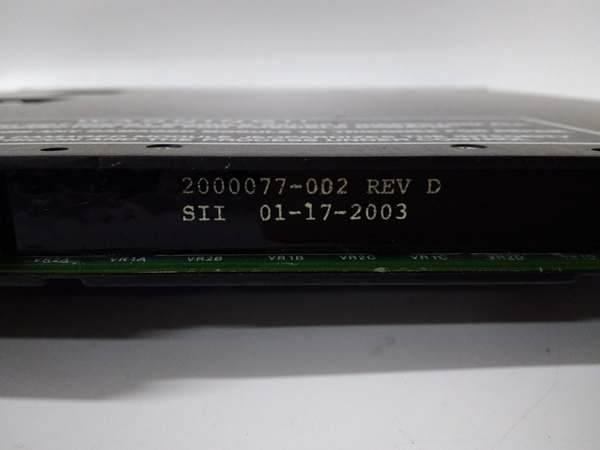

3511
Installation Pitfalls & Guide (Engineer to Engineer)
- ❗ MPU Wiring Polarity Reversal: Reversed magnetic pickup wires produce zero or erratic speed readings. Label wires before removal; match polarity (+/–) to terminal block diagram.
- ❗ Frequency Range Mismatch: Configuring for <1Hz or >10kHz causes signal dropout. Set channel frequency range in TriStation to match field device output.
- ❗ Ground Loop Noise: Improper field grounding creates common-mode noise, leading to false trips. Isolate field grounds from system ground; use shielded cable with single-point grounding.
- ❗ ESD Damage: Unprotected handling destroys TMR circuitry (costing $1800+). Always use grounded ESD wrist straps and anti-static mats; never touch backplane connectors.
- ❗ Backplane Power Under-sizing: The module draws ~4.5W; under-sizing causes voltage drops and resets. Calculate backplane power with 20% headroom.
4-Step Replacement Guide:
- Pre-install: Power down the chassis; wear ESD protection; verify firmware rev and switch settings.
- Removal: Release front latch; pull module straight out (do not twist).
- Install: Align rails; push firmly until latch clicks; torque terminal blocks to 0.8Nm.
- Power-on Test: Restore power; check LED status (green = healthy); run TriStation diagnostics to confirm pulse readings and fault detection.
FAQ
Q: What is the price range for this unit?A: New original units typically range from 2200–2800 USD; pricing varies by region, lead time, and warranty terms. Surplus/refurbished units cost less but carry shorter warranties.
Q: Does it support hot-swapping?A: Yes, on Tricon v10+ chassis with compatible backplanes. Hot-swap is not supported on v9 or older systems; doing so risks backplane damage.
Q: What warranty comes with the module?A: New original units include a 12-month OEM warranty covering manufacturing defects. Extended 3–5 year warranties are available via Schneider Electric.
Q: Is the module obsolete? What’s the replacement?A: The module is not EOL; it remains the standard pulse input for Tricon SIS. No direct replacement exists; always source the exact model for compatibility.
Q: Will I lose configuration when replacing?A: No, channel configuration is stored in the chassis, not the module. Firmware must match the chassis; configuration automatically downloads on power-up.
Q: Can it be used for overspeed protection?A: Yes, it’s certified for SIL3 overspeed protection on turbines/compressors when used with Tricon safety logic.
Q: What calibration is required?A: Annual calibration using a certified frequency calibrator (e.g., Fluke 5500) is recommended. The module holds calibration for 12 months under normal conditions.
