Operating Temp: -40°C to +70°C; Storage: -40°C to +85°C
Power: 24VDC backplane, ~3.8W
Dimensions: 3U (130×400×230mm)
Weight: ~2.05kg
Certifications: UL, CE, ATEX/IECEx Zone 2
Product Introduction

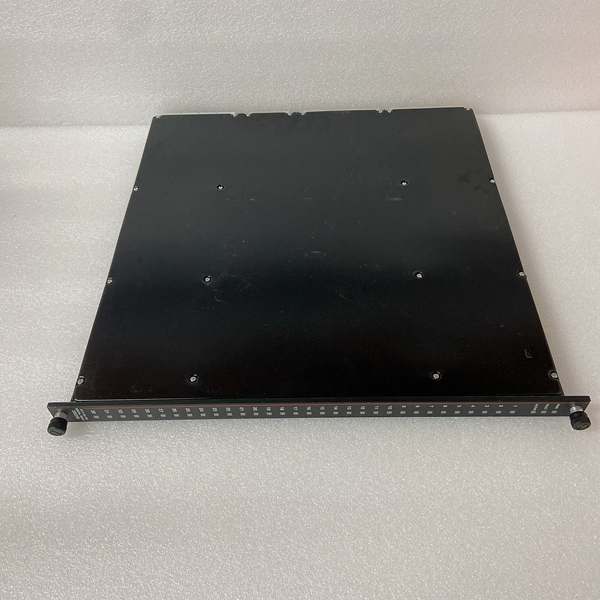

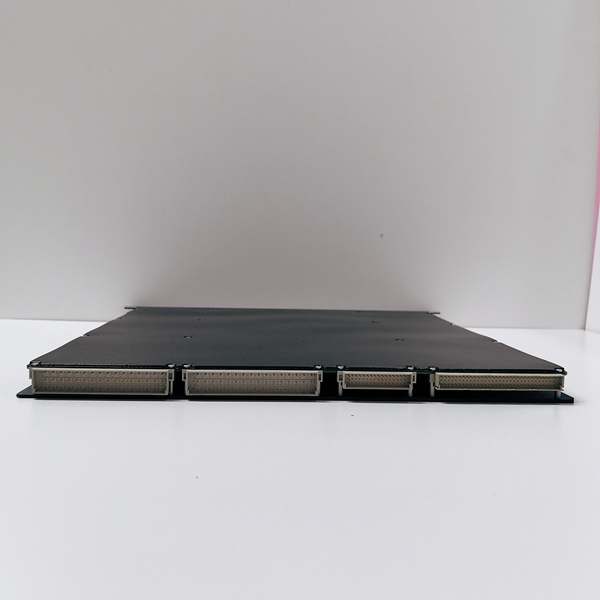

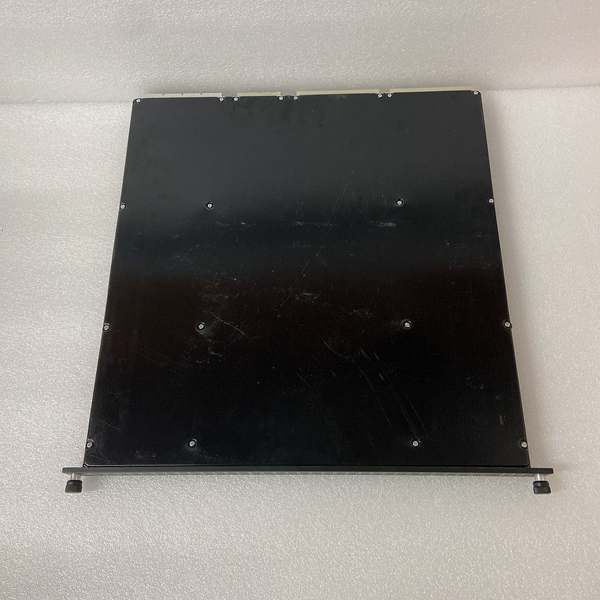

TRICONEX 3503E is a high-density digital input module for Tricon SIS platforms, designed for safety-critical on/off signal acquisition in ESD, fire & gas, and process interlock systems. It converts field switch and sensor states into logic data for the Tricon controller.
The unit’s TMR architecture eliminates single points of failure, while 2500V isolation and configurable filtering ensure noise immunity in high-EMI environments. Hot-swap capability reduces maintenance downtime by 70% vs. non-hot-swap modules.
QA & Testing SOP (Transparency Building)
Incoming Inspection: Verify TRICONEX hologram, serial number, and lot code; check for bent pins, cracked casing, or burned connectors; cross-reference with OEM anti-counterfeit databases.
Live Testing: Insert into Tricon v10 test chassis; establish TriStation comms; inject 24VDC dry/wet contact signals; validate channel status, fault detection (open/short), and 2oo3 voting.
Electrical Testing: Use Fluke 115 to confirm 24VDC draw (~3.8W); measure isolation resistance >10MΩ; verify chassis ground <0.1Ω.
Firmware/Config Backup: Record firmware rev (e.g., v5.2.1); photograph DIP switch settings; save channel config to secure server.
Final QC & Packaging: Apply anti-static bag and tamper-evident QC tag; include test report; ship in shock-absorbent, climate-controlled packaging.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Input Voltage Overrange: Applying >42.5VDC burns input circuitry. Confirm field voltage is 20–42.5VDC; use external fusing (0.5A) per bank.
❗ Commoning Mistakes: Grouping >8 channels causes ground loops and false trips. Strictly follow 8-channel bank grouping; isolate field grounds from system ground.
❗ Filter Mismatch: Using <10ms filter in high-noise areas causes chatter. Set filter ≥20ms for motor-driven equipment; ≥50ms for valve limit switches.
❗ ESD Damage: Unprotected handling destroys TMR logic ($2000+ repair). Use grounded ESD wrist strap and mat; never touch backplane connectors.
❗ Hot-Swap on Old Chassis: Hot-swap fails on v9 or older backplanes. Verify chassis v10+; power down v9 systems before replacement.
4-Step Replacement Guide:
Pre-install: Wear ESD protection; verify firmware rev and switch settings; check field voltage.
Removal: Release front latch; pull module straight out (do not twist).
Install: Align rails; push firmly until latch clicks; torque terminals to 0.8Nm.
Power-on Test: Restore power; check LED status (green = healthy); run TriStation diagnostics to confirm all channels.
TRICONEX 3503E
FAQ
Q: What is the price range for this unit?A: New original units range from 3400–4200 USD. Surplus/refurbished units cost 1800–2500 but carry 6-month warranties.
Q: Does it support hot-swapping?A: Yes, on Tricon v10+ chassis. Not supported on v9 or older; doing so risks backplane voltage spikes and damage.
Q: What warranty is included?A: New original units include a 12-month OEM warranty. Extended 3–5 year warranties are available via Schneider Electric.
Q: Is 3503E obsolete? What’s the replacement?A: Not EOL; it’s the standard 32-channel DI for Tricon SIS. No direct replacement; always source the exact model.
Q: Will configuration be lost on replacement?A: No, config is stored in the chassis. Firmware must match the chassis; config auto-downloads on power-up.
Q: Can it be used in hazardous areas?A: Yes, ATEX/IECEx certified for Zone 2 when installed per manufacturer guidelines.
Q: What’s the maximum cable length?A: 1000m for 24VDC signals (18AWG shielded cable); limit to 500m in high-EMI areas.
