Description
Product Core Brief
- Model: 3008
- Brand: TRICONEX (Schneider Electric)
- Series: Tricon SIS (Safety Instrumented System)
- Core Function: TMR main processor executing safety logic, I/O coordination, and system diagnostics
- Product Type: Main Processor (CPU) Module
- Key Specs: 32‑bit 50MHz CPU | 16MB DRAM | SIL3 (IEC 61508) | 25Mbps TriBus
- Note: New Original, In Stock, USA manufactured, occupies 3 chassis slots (0/1/2)

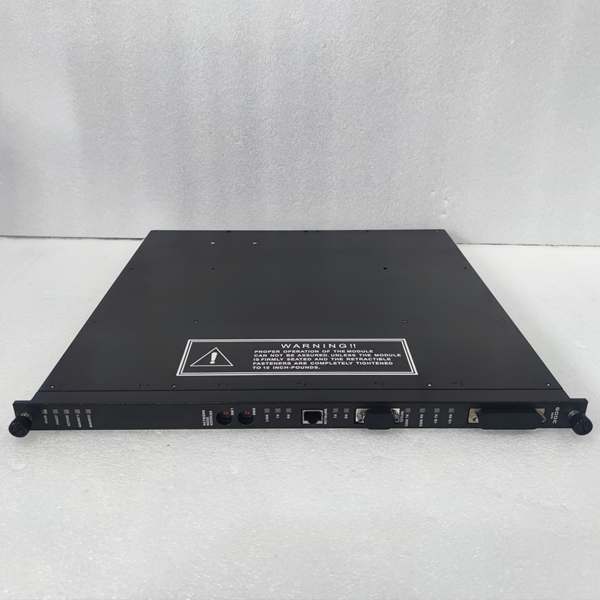

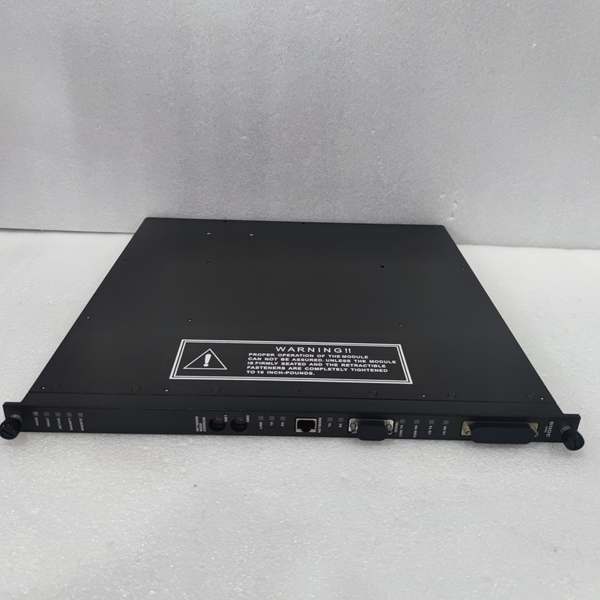

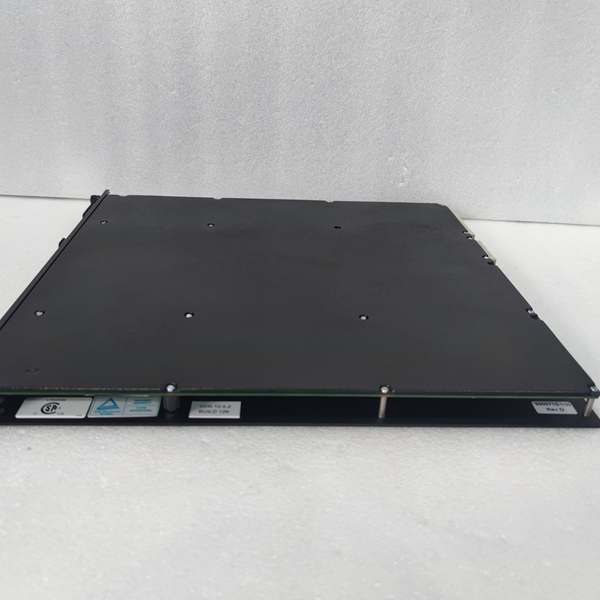

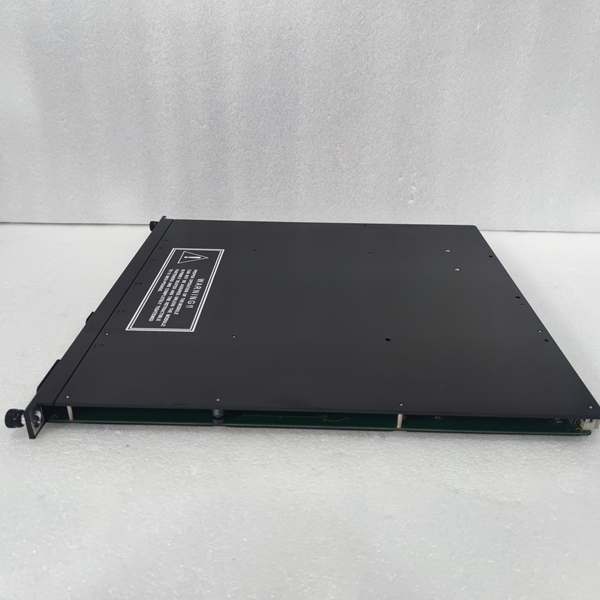

TRICONEX 3008
Key Technical Specifications
- CPU: Motorola MPC860, 32‑bit RISC, 50MHz
- Memory: 16MB DRAM (non‑volatile) | 32KB battery‑backed SRAM | 6MB Flash PROM
- Architecture: Triple Modular Redundancy (TMR), 2‑out‑of‑3 hardware voting
- Safety Rating: IEC 61508 SIL3, ISA 84.01, EN 50156
- Communications: 25Mbps TriBus (internal) | RS‑232 (local config) | Ethernet (diagnostics)
- Diagnostics: >99% coverage, continuous self‑test, fault isolation
- Operating Temp: 0°C to +60°C
- Power: Backplane‑fed, typical <15W
- Dimensions: 490 × 453 × 68mm
- Weight: ~3.6kg
- Compatibility: Tricon v9.6, v10, v11
Product Introduction
The TRICONEX 3008 is the primary TMR main processor for Tricon safety systems. It runs user application logic, synchronizes I/O across chassis, and manages system‑wide diagnostics for ESD, F&G, and process safety applications.
Built with three independent processing channels, the 3008 uses hardware 2‑out‑of‑3 voting to mask single‑point faults. It delivers SIL3 integrity and high‑speed TriBus communication, ensuring uninterrupted control in high‑risk environments.
