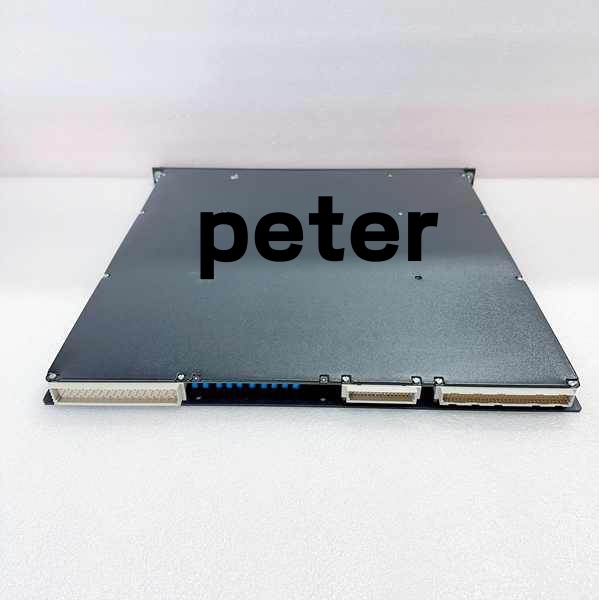

Triconex 2700 | TMR Safety System Processor Module – Field Service Notes

• Description

Hard-Numbers: Technical Specifications

• Processor: Dual-core PowerPC 604e, 333 MHz
• Memory: 128 MB RAM, 256 MB Flash
• TMR Architecture: Triple isolated processors, 2oo3 hardware voting
• I/O Capacity: Up to 64 I/O points per module; hot-swap capable
• Communication: Modbus RTU, Ethernet TCP/IP, PROFIBUS DP
• Power Supply: 24VDC (nominal), 120/240VAC via chassis
• Operating Temperature: -20°C to +70°C
• Isolation Rating: 1500VAC channel-to-backplane
• Certifications: IEC 61508 SIL3, TÜV, CE, UL, FM
• Dimensions: 19” x 7U, full-height rack-mount
• Power Draw: 18W maximum (via backplane)

The Real-World Problem It Solves

Single-point CPU failures take entire safety systems offline in critical processes. Non-redundant controllers can’t detect or correct internal logic errors during runtime.Where you’ll typically find it:

• Refinery ESD cabinets as the primary safety logic solver for process shutdown
• Power plant BMS racks controlling burner management and turbine protection
• Offshore F&G panels managing fire/gas detection and emergency isolationThis TMR processor eliminates single points of failure and ensures safety actions execute even with one faulty CPU.

Hardware Architecture & Under-the-Hood Logic

This is a triple-redundant processor module with three independent CPU lanes and dedicated voting circuitry. No single point of failure in the logic path.

1. Three isolated PowerPC cores execute identical safety logic from redundant memory banks.
2. Each CPU lane reads field I/O data from the backplane via isolated interfaces.
3. Dedicated hardware voters compare outputs from all three CPUs every clock cycle.
4. 2oo3 voting resolves discrepancies; majority output passes to I/O and comms.
5. Onboard diagnostics continuously test each CPU, memory, and voter circuit.
6. Faulty lane is flagged, isolated, and reported—system runs on remaining two lanes.
7. Hot-swap replacement possible without process shutdown or logic interruption.

Triconex 3623T

Field Service Pitfalls: What Rookies Get Wrong

Inadequate Cabinet Cooling for Full-Height ModuleTechnicians crowd 2700 next to high-power I/O cards. Restricted airflow causes thermal throttling and intermittent FAULT trips at +60°C+.

• Field Rule: Maintain minimum 1U vertical clearance above/below. Use cabinet fans rated for 7U full-height heat load.

Mismatched Firmware Between TMR LanesUpdating only one CPU lane creates firmware skew. Voting errors trigger spurious safety trips and system lockups.

• Quick Fix: Always update all three lanes simultaneously via TriStation 1131. Verify firmware match in diagnostics before restoring power.

Overlooking Backplane Bus TerminationMissing or faulty termination causes signal reflections. Intermittent I/O drops and CPU communication timeouts plague commissioning.

• Field Rule: Check backplane terminator resistance (120Ω ±5%). Replace if damaged; never run 2700 without proper termination.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
