Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 140CRP31200C |
| Manufacturer | Schneider Electric |
| Product Category | Ethernet RIO Interface Module |
| Series | Modicon Quantum |
| Communication Protocols | Ethernet IP/Modbus TCP |
| Communication Speed | 10/100 Mbps |
| Power Supply | 5V DC |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 70°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (H×W×D) | 129 mm × 40 mm × 125 mm |
| Weight | 0.45 kg |
| Certifications | CE, UL, CSA, GOST, HazLoc |

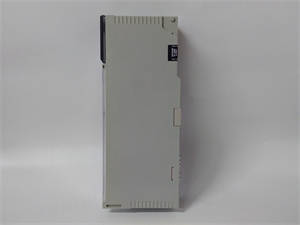

SCHNEIDER 140CRP31200C
Product Introduction
The Schneider Electric 140CRP31200C is a high-performance Ethernet RIO interface module designed for the Modicon Quantum series. This module is designed to enhance connectivity and functionality in industrial automation systems, particularly within Quantum systems. It serves as an Ethernet RIO head, facilitating seamless integration and efficient communication across networks.
Core Advantages and Technical Highlights
Advanced Connectivity: The 140CRP31200C features four ports, providing extensive connectivity options for streamlined data transmission. It supports Ethernet IP/Modbus TCP protocols, ensuring compatibility with various devices and systems.
Robust Design: The module is designed with a compact form factor and a sturdy construction, reinforced by its IP20 degree of protection. This ensures reliability in demanding industrial environments.
Versatile Protocol Connections: The 140CRP31200C supports a range of protocol connections, including service port, interlink port, and device network. This versatility enables seamless integration into existing setups.
Daisy Chain Topology: Equipped with a daisy chain loop topology, this module enables the creation of resilient network structures, minimizing wiring complexity and reducing the risk of single-point failures.
Compliance and Certifications: The 140CRP31200C adheres to stringent quality and safety standards, holding certifications such as UL 508, CE, and C-tick.
SCHNEIDER 140CRP31200C
Typical Application Scenarios
The Schneider Electric 140CRP31200C is widely used in various industrial sectors, including:
-
Factory Automation Systems: For managing complex control logic and data acquisition.
-
Power Generation Control: For monitoring and controlling power generation processes.
-
Water Treatment Plants: For process control and automation.
-
Oil & Gas Monitoring Systems: For high-precision control and monitoring of industrial processes.
Related Model Recommendations
-
140CRP31200: A similar module without the conformal coating, suitable for less harsh environments.
-
140NRP31200C: An Ethernet fiber converter suitable for applications requiring fiber optic connections.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation environment is clean and free of interference. Prepare the necessary tools and follow the installation manual carefully.
Maintenance Suggestions: Regularly inspect the module for physical damage, monitor output voltages using a multimeter, and check for abnormal heat generation or noises. Clean the module’s surface periodically to prevent dust accumulation, which can affect heat dissipation.
Service and Guarantee Commitment
The Schneider Electric 140CRP31200C comes with a comprehensive warranty, ensuring customer satisfaction and peace of mind. Schneider Electric provides technical support and service to assist with installation, troubleshooting, and maintenance.
