Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 140CPU65150 |
| Manufacturer | Schneider Electric |
| Product Category | Programmable Logic Controller (PLC) |
| Series | Modicon Quantum |
| Processor Type | Unity Processor |
| Clock Frequency | 166 MHz |
| RAM | 768 kB |
| Program Memory | Expandable up to 7168 kB with PCMCIA card |
| File Storage | Expandable up to 8 MB with PCMCIA card |
| Communication Protocols | Ethernet TCP/IP, Modbus, Modbus Plus, Profibus DP, USB |
| Number of Slots | 10 (16 I/O slots, 2 rack slots, 4 distributed slots, 6 remote slots) |
| Number of Local Racks | 2 |
| Number of Distributed I/O Stations | 63 stations on 1 rack across 3 Modbus Plus networks |
| Number of Remote I/O Stations | 31 stations across 2 remote racks |
| Discrete I/O | 31,744 inputs, 31,744 outputs (remote mode) |
| Analog I/O | 1,984 inputs, 1,984 outputs (remote mode) |
| Operating Voltage | 220 V |
| Operating Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (L×W×H) | 100 mm × 260 mm × 50 mm |
| Weight | 1.36 kg |
| Certifications | CE, UL, IEC 61508 |

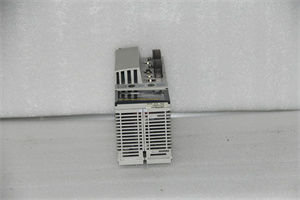

SCHNEIDER 140CPU65150
Product Introduction
The Schneider Electric 140CPU65150 is a high-performance programmable logic controller (PLC) designed for industrial automation applications. It is part of the Modicon Quantum series and offers advanced control capabilities, reliability, and flexibility, making it ideal for complex industrial processes.
Core Advantages and Technical Highlights
Advanced Processing Capabilities: The 140CPU65150 features a 166 MHz Unity processor with 768 kB of RAM, ensuring high-speed data processing and efficient execution of control tasks.
Robust Communication Options: The module supports multiple communication protocols, including Ethernet TCP/IP, Modbus, Modbus Plus, Profibus DP, and USB, providing extensive connectivity options for integration into various industrial networks.
Expandable Memory: The PLC offers expandable memory options, with up to 7168 kB for program storage and 8 MB for file storage using PCMCIA cards, allowing for complex control algorithms and large-scale applications.
Versatile I/O Configuration: The 140CPU65150 supports a wide range of I/O configurations, including 31,744 discrete inputs and outputs in remote mode, and 1,984 analog inputs and outputs, making it suitable for diverse industrial setups.
Reliable Performance: The module is designed to operate reliably in harsh industrial environments, with a wide operating temperature range of -40°C to +85°C and high humidity tolerance.

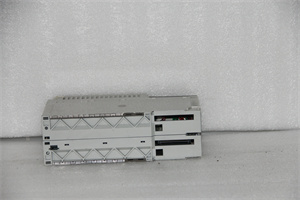

SCHNEIDER 140CPU65150
Typical Application Scenarios
The Schneider Electric 140CPU65150 is widely used in various industrial sectors, including:
-
Power Plants: For managing critical control functions such as turbine monitoring and power generation optimization.
-
Manufacturing Plants: For process control and monitoring, enabling consistent production quality.
-
Oil & Gas Industry: For high-precision control and monitoring of industrial processes.
Related Model Recommendations
-
140CPU65160: A higher-performance variant with additional features and improved processing capabilities.
-
140CPU67160C: Another high-performance PLC module suitable for advanced automation tasks.
-
140CPU11302: A lower-end PLC module suitable for simpler control applications.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation environment is clean and free of interference. Check the compatibility of the module with the existing system, especially ensuring it is suitable for the specific Modicon Quantum control system used. Prepare the necessary tools and follow the installation manual carefully.
Maintenance Suggestions: Regularly inspect the module for physical damage, monitor output voltages using a multimeter, and check for abnormal heat generation or noises. Clean the module’s surface periodically to prevent dust accumulation, which can affect heat dissipation. If any issues are detected, refer to the troubleshooting guide in the manual for inspection and repair.
Service and Guarantee Commitment
The Schneider Electric 140CPU65150 comes with a comprehensive warranty, ensuring customer satisfaction and peace of mind. Schneider Electric provides technical support and service to assist with installation, troubleshooting, and maintenance, ensuring the stable operation of the industrial automation system.
