Description
Product Overview
The SAIA PCD3.W610 is a high-precision analog output module designed for use in the PCD3 series of programmable controllers. It features four channels with 12-bit resolution, capable of handling a variety of signal ranges including 0…10 V, -10…+10 V, and 0…20 mA. This module is ideal for applications requiring precise control and signal generation。
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | SAIA PCD3.W610 |
| Manufacturer | SAIA-BURGESS |
| Product Type | Analog Output Module |
| Channels | 4 |
| Resolution | 12 bits (0…4065) |
| Signal Range | 0…10 V, -10…+10 V, 0…20 mA |
| Minimum Effective Bit Value | 0…10 V: 2.429 mV, -10…+10 V: 4.884 mV, 0…20 mA: 4.884 μA |
| Conversion Time (AD) | Typical 10 μs |
| Load Impedance | Voltage: >3 kΩ, Current: <500 Ω |
| Repeatability | Voltage: ±0.5%, Current: ±0.8% |
| Temperature Error (0…+55 °C) | Voltage: ±0.1%, Current: ±0.2% |
| Power Consumption | From +5V supply: max 110 mA, Internal current consumption: 0 mA, External current consumption: max 100 mA (current output only) |
| Connector Type | Pluggable 10-pole screw terminal block, suitable for wires up to 30.25 mm², plug type A (405-4854 f) |

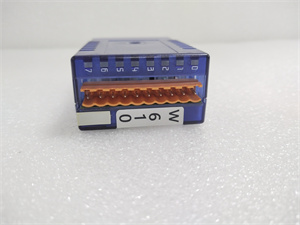

SAIA PCD3.W610
Main Features and Advantages
High-Precision Signal Generation: 12-bit resolution ensures accurate analog output.
Wide Signal Range: Supports multiple voltage and current ranges for versatile applications.
Fast Conversion Time: Typical conversion time of 10 μs allows for rapid signal updates.
Low Load Impedance: Ensures minimal signal distortion and high accuracy.
Repeatable Performance: High repeatability ensures consistent output across multiple operations.
Temperature Stability: Low temperature error ensures stable performance over a wide temperature range.

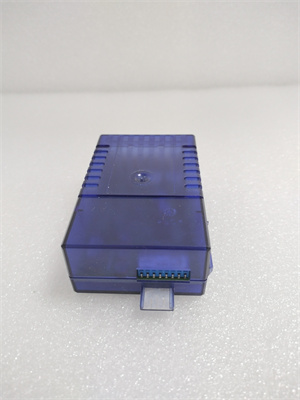

SAIA PCD3.W610
Application Field
The SAIA PCD3.W610 is widely used in various fields, including:
Industrial Automation: For precise control of actuators and sensors.
HVAC Systems: For controlling temperature and pressure.
Energy Management: For voltage and current control in power systems.
Environmental Monitoring: For generating signals in environmental control systems.
Related Products
PCD3.W710: A weighing module for precise weight measurements.
PCD3.W720: Another weighing module with additional features.
PCD3.W745: A thermocouple module for temperature measurements。
Installation and Maintenance
Pre-installation preparation: Ensure you have the SAIA PCD3.W610 module, a compatible PCD3 controller, and appropriate cables. Turn off the power and unplug the system. Install the module in the controller and secure it with the provided screws. Connect the necessary cables and ensure all connections are secure。
Maintenance recommendations: Regularly inspect the connections for wear or damage. Clean the module using a soft, non-metallic brush to remove dust and ensure the device is completely dry before reusing it. Store the module in a dry place with relative humidity between 10% and 90% noncondensing。
Product Guarantee
The SAIA PCD3.W610 is backed by a 12-month warranty from the supplier, ensuring the quality and reliability of the product。
