Description
Product Overview
The Saia PCD3.T760 is a high-performance remote I/O base station designed for industrial automation and control systems. As part of the Saia PCD3 series, this module offers robust and reliable communication capabilities, making it an essential component in various industrial applications. The Saia PCD3.T760 supports the Profibus DP protocol, enabling seamless integration with a wide range of industrial devices and systems. Its compact design and versatile functionality make it suitable for both small-scale and large-scale automation projects. The module is designed to operate in harsh industrial environments, ensuring long-term reliability and minimal downtime. With its advanced features and user-friendly configuration, the Saia PCD3.T760 provides a comprehensive solution for industrial control needs, enhancing efficiency and productivity in automation systems.
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | Saia PCD3.T760 |
| Manufacturer | Saia |
| Product Type | Remote I/O Base Station |
| Communication Protocol | Profibus DP |
| Operating Voltage | 24 VDC (15 to 30 VDC) |
| Power Consumption | Typically 15 W for 64 I/Os |
| Load-carrying ability 5 V / 24 V internal | Max 600 mA / 100 mA |
| Short Voltage Interruption | ≤ 10 ms with interval ≥ 1 s |
| Watchdog Relay Closing Contact | 48 VAC or VDC, 1 A |
| Storage Temperature | -25°C to +70°C |
| Operating Temperature | 0°C to +55°C |
| Relative Humidity | 10% to 95% RH, non-condensing |
| Type of Mounting | Top-hat rail according to DIN EN 60715 TH35 |
| Protection Level | IP 20 |
| Flame Resistance | UL 94 V0 |
| Dimensions (L x W x H) | 139 mm x 125.8 mm x 28.5 mm |
| Weight | 580 g |

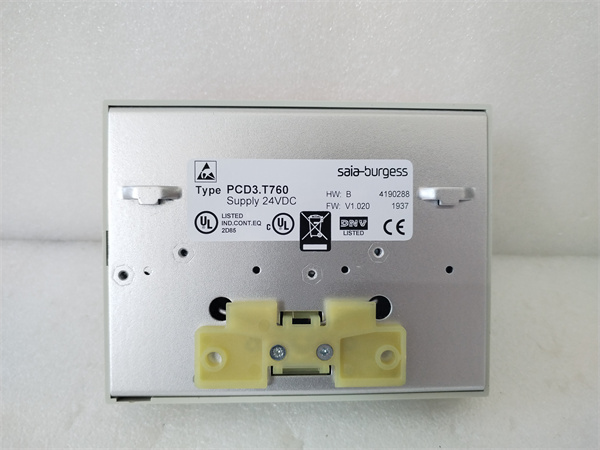

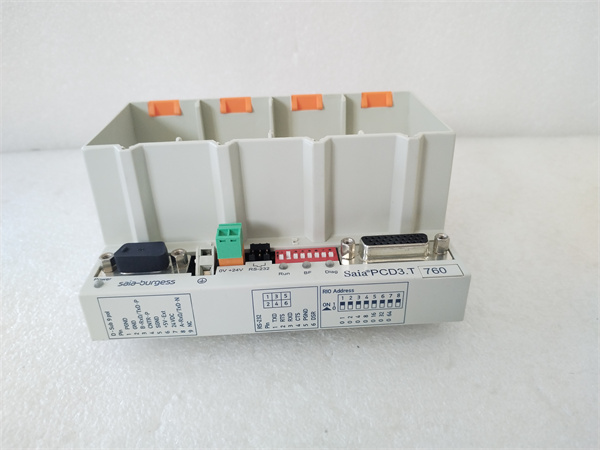

SAIA PCD3.T760
Main Features and Advantages
The Saia PCD3.T760 offers several key features and advantages that make it a standout choice for industrial automation:
Advanced Communication Capabilities: The Saia PCD3.T760 supports the Profibus DP protocol, ensuring seamless communication with a wide range of industrial devices. This protocol is widely used in industrial environments, making the module highly versatile and compatible with existing systems.
Robust and Reliable Design: Built to withstand harsh industrial conditions, the Saia PCD3.T760 operates reliably within a wide temperature range and offers protection against electromagnetic interference. Its compact design and robust construction ensure long-term durability and minimal downtime.
User-Friendly Configuration: The module features an integrated Web server and onboard file system, making configuration and diagnostics straightforward. The USB port allows for easy connection with configuration tools, further simplifying the setup process.
Flexible I/O Expansion: The Saia PCD3.T760 supports up to 1024 I/O points, providing ample capacity for large-scale automation projects. It is compatible with over 50 I/O modules in cassette form, offering extensive expansion options to meet various application needs.
Application Field
The Saia PCD3.T760 is widely used across multiple industrial sectors, providing reliable and efficient control solutions. In manufacturing plants, it monitors and controls production lines, ensuring optimal performance and minimizing downtime. In power generation facilities, the module manages power plant operations, enhancing safety and efficiency. In water and wastewater treatment plants, it controls pumps and valves, optimizing water management processes. The Saia PCD3.T760 is also a key component in building automation systems, managing HVAC, lighting, and other critical systems in large buildings.

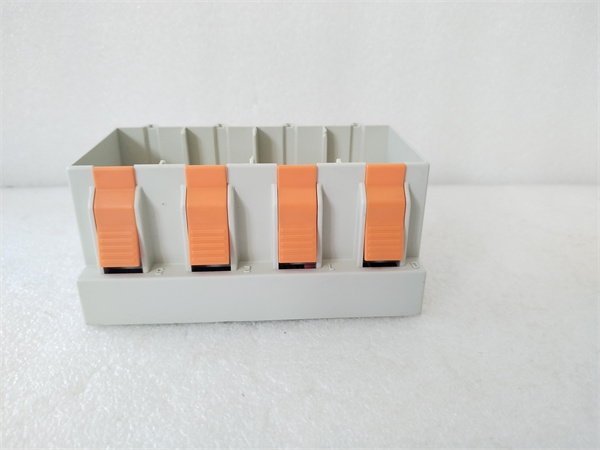

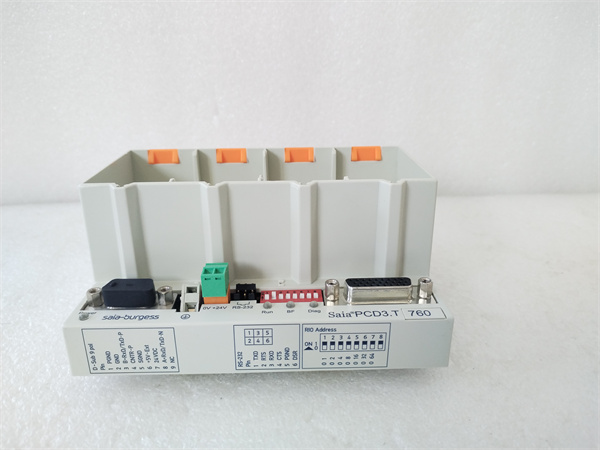

SAIA PCD3.T760
Related Products
Saia PCD3.A465: A digital output module with 16 transistor outputs, suitable for precise control applications.
Saia PCD3.E165: A digital input module with 16 inputs, ideal for monitoring applications.
Saia PCD3.M6340: A CPU base unit with advanced communication capabilities, including CAN bus and Ethernet TCP/IP.
Saia PCD3.R500: A flash card for data backup and program storage, ensuring data integrity and system reliability.
Saia PCD3.W110: A relay output module with 8 relay outputs, suitable for applications requiring high-current switching.
Installation and Maintenance
Pre-installation Preparation: Before installing the Saia PCD3.T760, ensure the environment meets the specified temperature and humidity requirements (0°C to +55°C, 10% to 95% RH non-condensing). Use shielded cables and proper grounding to minimize electromagnetic interference. Follow Saia’s guidelines for top-hat rail mounting, ensuring proper ventilation and protection from dust.
Maintenance Recommendations: Regularly inspect connections for wear and clean the module with a static-free cloth to ensure optimal heat dissipation. Use Saia’s dedicated software for module configuration and firmware updates. Follow Saia’s guidelines for handling sensitive components, including anti-static measures during maintenance.
Product Guarantee
Saia stands behind the quality and reliability of the PCD3.T760, offering a comprehensive warranty that covers manufacturing defects and performance issues for a specified period. Our dedicated after-sales support team is available to assist with technical inquiries and provide prompt solutions to ensure minimal disruption to your operations. We also offer extensive training and technical support services to help customers fully leverage the capabilities of the module, ensuring optimal performance and efficiency in their industrial applications.
