Description
Product Introduction
The S-093H 3BHB030478R0309 is a heavy-duty phase module designed for the heart of ABB ACS6000 medium-voltage drives. It integrates IGCTs (Integrated Gate-Commutated Thyristors), diodes, and snubber circuits to handle massive power conversion from the DC link to the AC motor terminals.
This S-093H 3BHB030478R0309 variant typically weighs between 150 kg and 220 kg depending on the heat sink configuration. It uses fiber optic inputs for noise-immune triggering. Switching losses stay low, typically around 11 V forward drop at peak current .

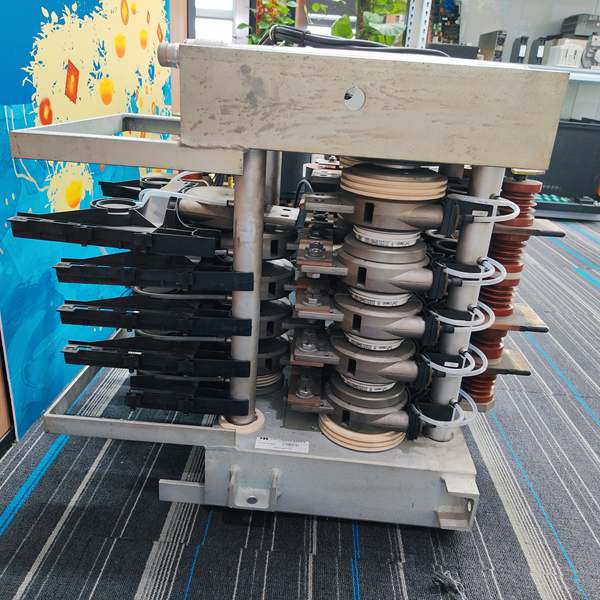

S-093H 3BHB030478R0309
Key Technical Specifications
- Device Tech: IGCT (Integrated Gate-Commutated Thyristor)
- Blocking Voltage: 3000 V (Nominal/Repetitive)
- Peak Current: 1000 A (Surge/Switching capacity)
- Forward Drop: ~11 V (At rated current, verify with OEM datasheet)
- Trigger Interface: Fiber Optic (LV to HV isolation)
- Cooling Method: Water Cooling (Liquid cooled plates)
- Weight: Approx. 150 kg – 220 kg (Variant dependent)
- Construction: Aluminum/Alloy Chassis (Ruggedized)
- Protection: Integrated Snubber Circuits, Over-current monitoring
- Mounting: Cabinet Slide/Rail (Heavy-duty extractable)
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Verify the 3BHB030478R0309 sticker against the S-093H serial on the alloy chassis. Inspect the water manifolds for corrosion or O-ring flat-spots. Check fiber ports for dust caps.
- Live Functional Test: Rig on a high-power bench with a dummy load. Fire IGCTs via fiber at 10 kHz. Scope the Vce turn-off tail; excessive ringing indicates degraded snubber caps.
- Electrical Parameter Test: Use a Megger at 2500 Vdc on the HV terminals to chassis. Leakage must be <10 µA. Check gate-cathode impedance with a Fluke 115—shorts kill the GUSP driver fast.
- Firmware Verification: Interlock test with the drive controller (e.g., AC800M). Verify “Gate Fail” signaling latency—well, technically it’s hardware logic, but timing margins tighten on firmware v6.0+.
- Final QC & Packaging: Pressure-test water channels at 1.5x operating PSI. Drain and blow dry with nitrogen. Crate on a reinforced pallet, label “QC Passed – HiPot Clear” with the date.
Replacement Pitfall Guide
❗ Water Leakage: The S-093H 3BHB030478R0309 is water-cooled. Reusing old Viton O-rings on the manifold seals causes drips onto 24 Vdc control cards below. Always install fresh seals.
❗ Fiber Polarity: Trigger fibers are keyed, but forcing them upside down scratches the transmitter lens. Signal loss shows as sporadic “Comm Fail” alarms under load.
❗ Torque Settings: Busbar connections require high torque (M10/M12). Under-torquing the 3000 V lugs creates hot spots; over-torquing warps the ceramic IGCT housing. Use a calibrated wrench.
❗ Cooling Flow: These draw significant thermal load. Verify coolant flow rate >12 L/min before closing the cubicle; low flow trips the drive in <3 minutes at 50% load.
❗ ESD to Gates: IGCT gates are sensitive to static. Discharge to the cabinet frame before handling the fiber pigtails—though your mileage may vary on floor grounding quality.
Keep these in mind and you’ll cut 90% of rework time.

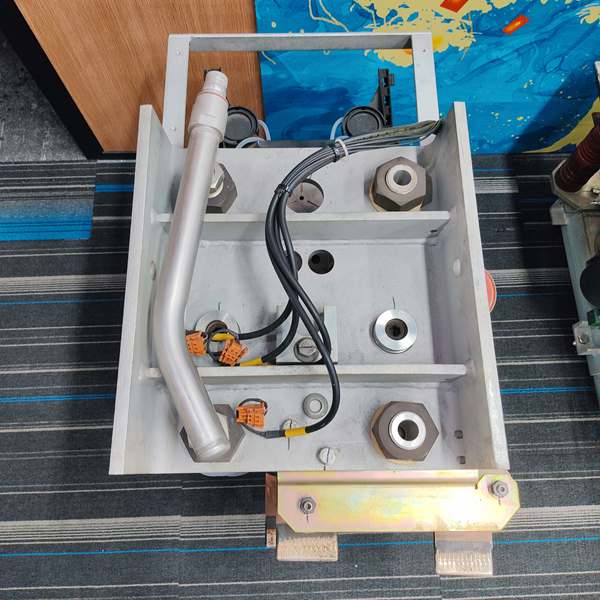

S-093H 3BHB030478R0309
Compatibility Matrix & Benchmarks
- S-093H 3BHB030478R0309 → S-113H 3BHB018008R0101 : Needs Adaptation — Higher current rating; verify mechanical rail match
- S-093H 3BHB030478R0309 → ABB ACS6000 Inverter Section : Direct — Plugs into standard phase-leg busbars
- S-093H 3BHB030478R0309 → Standard IGBT Module : Incompatible — Requires ABB specific GUSP driver and fiber timing
- Switching Speed: < 10 µs (Turn-off time, typical)
- Thermal Resistance: Verify with OEM datasheet (Junction to Coolant)
- Isolation Test: 2500 Vdc (HV Terminal to Heatsink, 1 min)
