Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | RRAIO16 |
| Manufacturer | Rolls-Royce |
| Product Category | Industrial Control Module |
| Input Voltage | 12V – 28V DC |
| Output Voltage | ±12V DC |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (L x W x H) | 60 mm x 30 mm x 20 mm |
| Weight | 50 g |
| Communication Interface | CANopen, EtherCAT, Modbus |
| Certifications | CE, UL, RoHS |

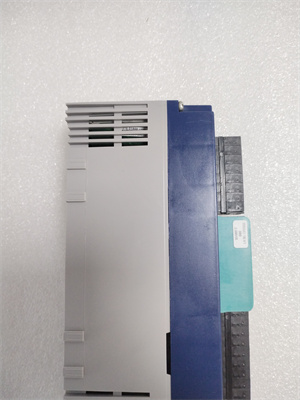

Rolls-Royce RRAIO16
Product Introduction
The Rolls-Royce RRAIO16 is a high-performance analog input/output module designed for precise control and monitoring in marine and industrial applications. It is widely used in shipbuilding, power generation, and offshore drilling platforms for monitoring and controlling various parameters such as temperature, pressure, and liquid levels.
Core Advantages and Technical Highlights
Analog Signal Processing: The RRAIO16 module can receive and send analog signals, such as temperature, pressure, and liquid level sensor signals, enabling precise control and monitoring of various mechanical equipment.
High Integration and Flexibility: The module features high integration and flexibility, allowing for communication and control with various types of ship systems and equipment. This enables ship owners or operators to configure and expand the system according to their specific needs.
Remote Monitoring and Alarm Function: The RRAIO16 provides remote monitoring and alarm functions, allowing ship owners or operators to monitor the operation status and alarm situation of the ship in real time. This is crucial for ensuring the safety and stable operation of ships.
High Reliability and Durability: The RRAIO16 module is designed to operate reliably in harsh marine environments, such as high and low temperatures, vibrations, and salt spray. This reliability ensures long-term stable operation, reducing maintenance and replacement frequency.
Real-Time Data and Information: In addition to basic monitoring and alarm functions, the RRAIO16 module can provide real-time data and information. This enables ship owners and operators to make informed decisions based on real-time data, improving the operational efficiency and safety of ships.

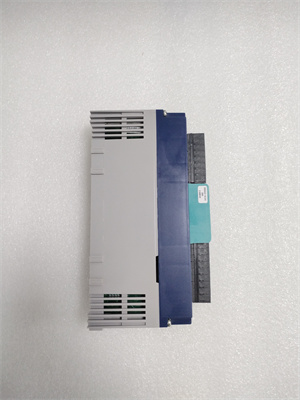

Rolls-Royce RRAIO16
Typical Application Scenarios
The Rolls-Royce RRAIO16 is widely used in various marine and industrial applications, including:
Marine Automation: For precise control and monitoring of steering gears in marine vessels.
Power Generation: For monitoring and controlling critical processes in power plants.
Offshore Drilling Platforms: For monitoring and controlling various parameters in offshore drilling operations.
Industrial Automation: For high-precision positioning and speed control in manufacturing plants.
Related Model Recommendations
TRICONEX 3351: A digital output module suitable for advanced control systems.
TRICONEX 2401: A digital output base plate for expanding control systems.
TRICONEX 4119: An input module for precise signal processing.
TRICONEX 3701: A temperature card for accurate temperature monitoring.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation location meets the specified temperature and humidity requirements. Mount the module securely on a grounded conductive mounting plate in the cabinet. Use shielded cables for connections to minimize electrical interference.
Maintenance Suggestions: Perform regular visual inspections to check for dust accumulation, wear, or damage. Clean ventilation openings to ensure proper airflow and prevent overheating. Monitor diagnostic indicators for any abnormal conditions or warning messages.
Service and Guarantee Commitment
The Rolls-Royce RRAIO16 is backed by comprehensive support and quality assurance. The module comes with a 12-month warranty that ensures protection against manufacturing defects. Rolls-Royce’s global technical support network offers 24/7 assistance with guaranteed response times, ensuring minimal downtime and maximum efficiency.
