Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product model | ROCKWELL 1336-BDB-SP31D |
| Manufacturer | Rockwell Automation |
| Product category | Industrial Drive Module |
| Input voltage range | 200-240 VAC, 3-phase, 50/60 Hz |
| Output voltage | 0-240 VAC, variable frequency (0-400 Hz) |
| Output current | 3.1 A |
| Power rating | 1.5 kW |
| Operating temperature | -10°C to +50°C |
| Storage temperature | -40°C to +70°C |
| Humidity | 5% to 95% non-condensing |
| Protection class | IP20 |
| Dimensions | 170 mm x 100 mm x 50 mm |
| Weight | 1.5 kg |
| Certifications | CE, UL, RoHS compliant |

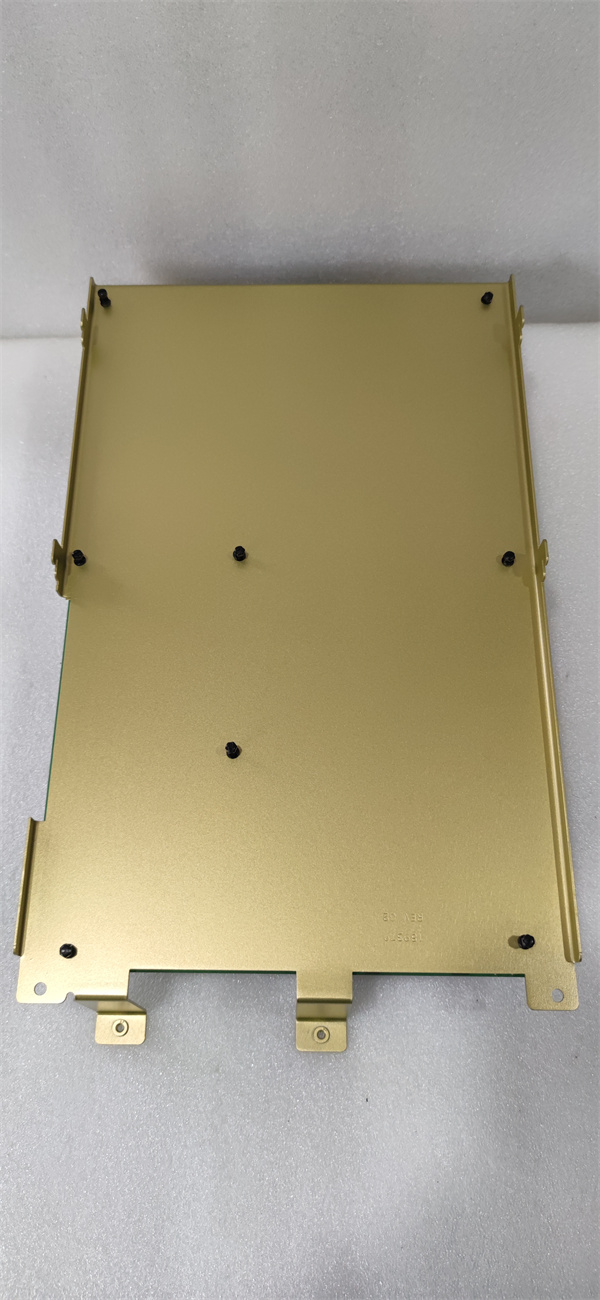

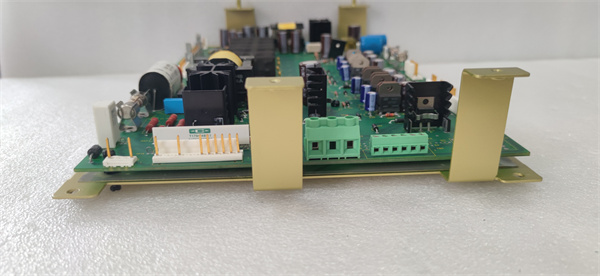

ROCKWELL 1336-BDB-SP31D
Product Introduction
The ROCKWELL 1336-BDB-SP31D is a high-performance industrial drive module designed for precise control of AC motors in various industrial applications. It is part of Rockwell Automation’s extensive lineup of industrial control solutions, known for their reliability and advanced technology. This module is suitable for applications requiring precise speed and torque control.
Core Advantages and Technical Highlights
High Precision Control: The 1336-BDB-SP31D provides high precision in controlling AC motors, ensuring dynamic performance and accurate control.
Robust Design: The module features a robust construction, ensuring reliable performance even in harsh industrial environments.
Advanced Protection Features: It includes overvoltage protection, overcurrent protection, short circuit protection, and thermal overload protection, ensuring safe and stable operation.
Wide Operating Range: The 1336-BDB-SP31D operates reliably within a wide temperature range of -10°C to +50°C and a storage temperature range of -40°C to +70°C.
User-Friendly Interface: The module features an intuitive interface and supports various programming tools, making it easy for operators and technicians to configure and program the drive.

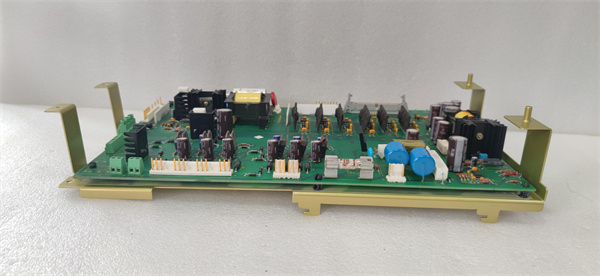

ROCKWELL 1336-BDB-SP31D
Typical Application Scenarios
The ROCKWELL 1336-BDB-SP31D is widely used in various industrial sectors, including:
Manufacturing: Controlling conveyor belts, robotic arms, and assembly line machinery.
Material Handling: Managing conveyor systems and material transport equipment.
Automotive Assembly: Ensuring precise control of robotic arms and assembly line equipment.
Energy: Controlling pumps, fans, and other equipment in power generation facilities.
Related Model Recommendations
ROCKWELL 1336-BDB-SP31A: A related model with similar control capabilities.
ROCKWELL 1336-BDB-SP31B: Another model suitable for similar applications.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ROCKWELL 1336-BDB-SP31D, ensure that the environment meets the specified requirements, including an operating temperature range of -10°C to +50°C. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard DIN rail or panel mount for secure installation.
Maintenance Suggestions
To maintain the ROCKWELL 1336-BDB-SP31D, perform regular inspections of the unit and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance.
