Description
Product Overview
The Bosch Rexroth VT-HNC100-1-23/W-08-P-0 R00958999 is a highly advanced and sophisticated digital axis controller, belonging to the renowned VT-HNC100 series by Bosch Rexroth. This product serves as a central control unit in industrial automation systems, offering unparalleled precision and control capabilities for a wide range of applications. It is designed to manage and regulate the motion of hydraulic and electric drives with utmost accuracy, making it an essential component in modern manufacturing and production lines.
As a key offering from Bosch Rexroth, the VT-HNC100-1-23/W-08-P-0 R00958999 combines cutting-edge technology with robust engineering. It can handle complex control tasks, such as precise positioning, velocity control, and torque regulation, ensuring smooth and efficient operation of machinery. Whether integrated into large-scale factory automation networks or specialized production equipment, this controller enhances the overall productivity, quality, and reliability of industrial processes. Its advanced features and high-performance capabilities make it a preferred choice for industries seeking to optimize their automation systems and stay competitive in the global market.
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | VT-HNC100-1-23/W-08-P-0 R00958999 |
| Manufacturer | Bosch Rexroth |
| Product Type | Digital Axis Controller |
| Processor | 16/32-bit MC68376 |
| Operating Voltage | 18 – 36VDC |
| Power Consumption | 8W |
| Memory | 1MB flash eeprom, 8KB eeprom, 256KB ram |
| Analog Inputs | 4 current inputs (4 – 20mA), 4 voltage inputs (±10V, differential type) |
| Communication Bus | PROFIBUS DP |
| Digital I/O | 8 digital inputs/outputs (configurable to 8, 16, or 24) |
| Measuring System Support | Incremental or absolute (SSI) |
| Number of Controlled Axes | Up to 8 axes |
| Control Modes | Position control, velocity control, torque control |
| Operating Temperature Range | -10°C – 55°C |
| Protection Class | IP20 |
| Dimensions | 263×58×28mm |
| Weight | Approximately 4.3kg |

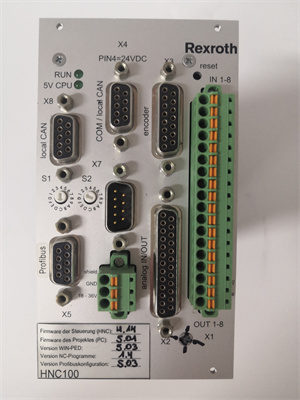

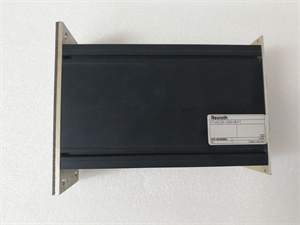

REXRTOH VT-HNC100-1-23/W-08-P-0 R00958999
Main Features and Advantages
Exceptional Precision and Control
The Bosch Rexroth VT-HNC100-1-23/W-08-P-0 R00958999 offers exceptional precision in controlling the motion of drives. Its advanced control algorithms and high-speed processing capabilities enable it to execute complex motion profiles with pinpoint accuracy. In applications such as CNC machining, it can precisely control the movement of axes, ensuring the production of high-precision components. The ability to accurately regulate speed, position, and torque reduces errors and improves the quality of the final product, making it ideal for industries with strict quality requirements.
Versatile Communication and Integration
Equipped with support for the PROFIBUS DP communication protocol, the VT-HNC100-1-23/W-08-P-0 R00958999 can seamlessly integrate into existing industrial automation networks. It can communicate effectively with other devices such as PLCs, sensors, and actuators, enabling real-time data exchange and coordinated operation. This versatility allows for easy integration into a variety of automation systems, whether in new installations or retrofitting existing equipment. It also supports different types of measuring systems, providing flexibility in sensor selection and system configuration.
Robust and Reliable Operation
Built with high-quality components and Bosch Rexroth’s proven engineering expertise, the VT-HNC100-1-23/W-08-P-0 R00958999 is designed to operate reliably in harsh industrial environments. It has a wide operating temperature range and is protected against dust and limited contact with the IP20 protection class. The controller’s robust design ensures stable performance over long periods, reducing the risk of breakdowns and unplanned downtime. Additionally, its built-in diagnostic functions can quickly detect and report faults, facilitating timely maintenance and minimizing production disruptions.
User-Friendly Programming and Configuration
The Bosch Rexroth VT-HNC100-1-23/W-08-P-0 R00958999 features a user-friendly programming interface that simplifies the configuration and operation process. It supports common programming languages, making it accessible to a wide range of engineers and technicians. The intuitive software tools provided by Bosch Rexroth allow users to easily program motion sequences, set control parameters, and monitor system performance. This ease of use reduces the time and effort required for installation, commissioning, and maintenance, enhancing the overall efficiency of the automation system.

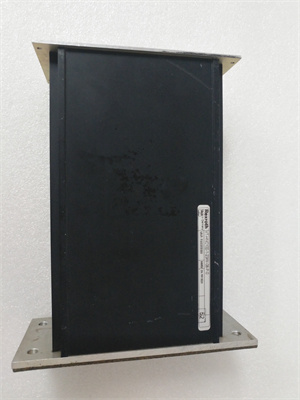

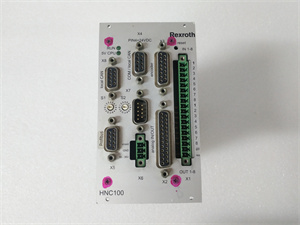

REXRTOH VT-HNC100-1-23/W-08-P-0 R00958999
Application Field
The Bosch Rexroth VT-HNC100-1-23/W-08-P-0 R00958999 finds extensive applications across various industries. In the automotive manufacturing industry, it is used to control the movement of robotic arms in assembly lines, ensuring accurate and efficient installation of components such as engines, transmissions, and body panels. Its high precision and reliability are crucial for maintaining the quality and productivity of automotive production.
In the aerospace industry, this controller plays a vital role in CNC machining of high-precision aerospace components. It enables the precise control of complex motion profiles required for the fabrication of parts with tight tolerances, ensuring the safety and performance of aerospace vehicles.
In the electronics manufacturing sector, the VT-HNC100-1-23/W-08-P-0 R00958999 is used to manage the movement of pick-and-place machines, enabling the accurate placement of tiny electronic components on circuit boards. Its fast response and precise control capabilities are essential for the high-speed and high-precision requirements of electronics production.
It is also widely applied in industries such as machinery manufacturing, woodworking, and plastic processing, where precise control of motion is required for the production of high-quality products.
Related Products
- Bosch Rexroth VT-HNC80-1-20/W-06-0-0: A lower-performance variant of the VT-HNC100-1-23/W-08-P-0 R00958999, with fewer controlled axes and less memory capacity. It is suitable for smaller-scale or less complex automation applications, offering a more cost-effective solution for basic motion control needs.
- Bosch Rexroth VT-HNC120-1-25/W-10-0-0: An upgraded model with enhanced processing power, more axis control capabilities, and larger memory. It is designed for extremely complex multi-axis motion control applications, such as large-scale 5-axis CNC machining centers, where high-speed and high-precision control are critical.
- Bosch Rexroth VT-HNC100-1-23/W-08-P-0 R00958998: A variant with a slightly different configuration or firmware version, potentially offering minor improvements or adaptations for specific application requirements.
- Bosch Rexroth VT-HNC100-2-23/W-08-P-0 R00958999: This model may have additional features or modified functionality compared to the VT-HNC100-1-23/W-08-P-0 R00958999, such as enhanced communication capabilities or more advanced control algorithms, tailored for specific industrial applications.
- Bosch Rexroth VT-HNC100-1-23/W-08-P-1 R00958999: A version with a different input/output configuration or software options, providing flexibility for integration into diverse automation systems and meeting the unique needs of different customers.
Installation and Maintenance
Pre-installation preparation: Before installing the Bosch Rexroth VT-HNC100-1-23/W-08-P-0 R00958999, carefully read and understand the product manual. Ensure that the installation environment meets the specified temperature, humidity, and electrical requirements. Verify the compatibility of the controller with other components in the automation system, including motors, sensors, and communication devices. Prepare all the necessary tools and mounting hardware, and ensure that the mounting surface is clean, flat, and properly grounded. Connect the power cables, communication cables, and signal cables according to the provided wiring diagrams, making sure all connections are secure and correctly wired.
Maintenance recommendations: Regularly inspect the VT-HNC100-1-23/W-08-P-0 R00958999 for any signs of abnormal operation, such as unusual noises, overheating, or error messages. Check the tightness of all cable connections and the integrity of the communication interfaces. Periodically update the controller’s firmware to benefit from the latest features, performance improvements, and security patches. Use the built-in diagnostic tools to monitor the health of the unit and detect any potential issues early. In case of a malfunction, refer to the product manual for troubleshooting steps or contact Bosch Rexroth’s technical support team for assistance. Keep detailed records of all maintenance activities, including inspection dates, firmware updates, and component replacements, for future reference.
Product Guarantee
Bosch Rexroth stands firmly behind the quality of the Bosch Rexroth VT-HNC100-1-23/W-08-P-0 R00958999. The product undergoes rigorous quality control procedures during manufacturing to meet the highest industry standards. Bosch Rexroth typically offers a [X]-year warranty on this product. During the warranty period, if any quality issues arise due to manufacturing defects, Bosch Rexroth will provide free repair or replacement services. Additionally, Bosch Rexroth’s professional technical support team is available 24/7 to assist customers with installation, operation, and maintenance questions. Whether it’s helping with system integration, resolving technical problems, or providing advice on optimizing performance, the support team ensures that customers can use the VT-HNC100-1-23/W-08-P-0 R00958999 with confidence, maximizing the value and reliability of their industrial automation systems.
