Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product model | REXROTH VT-HNC100-1-23/W-08-0-0 |
| Manufacturer | Bosch Rexroth |
| Product category | Digital Axis Controller |
| Operating Voltage | 18 to 36 VDC |
| Processor | 16/32-bit MC68376 |
| Input/Output | 8 digital I/O, 4 analog current inputs (4-20 mA) |
| Memory | 1 MB Flash EPROM, 8 KB EEPROM, 256 KB RAM |
| Communication Interfaces | PROFIBUS DP (12 Mbps), RS232 |
| Operating temperature | 0 to 50°C |
| Weight | Approximately 4.3 kg |
| Certifications | EC compliant, CE marking |

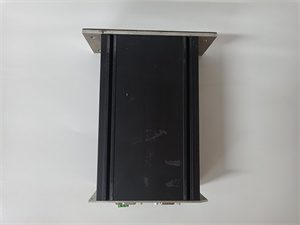

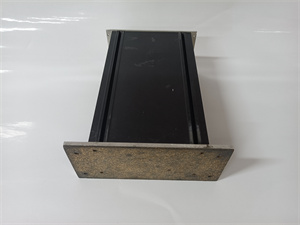

REXROTH VT-HNC100-1-23/W-08-0-0
Product Introduction
The REXROTH VT-HNC100-1-23/W-08-0-0 is a high-performance digital axis controller designed for precise control of hydraulic and electric drives in industrial automation applications. It is part of the VT-HNC100 series and is known for its reliability and precision in controlling motion.
Core Advantages and Technical Highlights
High Precision Control: The VT-HNC100-1-23/W-08-0-0 provides extremely high levels of precision in control, with an accuracy of up to ±0.01 mm in applications such as CNC machining centers.
Robust Construction: Built with high-quality industrial-grade components, this controller is highly reliable with a Mean Time Between Failures (MTBF) of over 50,000 hours, ensuring continuous and stable operation.
Energy Efficiency: The controller is designed to be energy-efficient, reducing power consumption and operating costs. It can reduce energy consumption by up to 20% compared to traditional controllers.
Ease of Programming: It supports Windows-based programming tools, making it easy for operators and technicians to configure and program the controller.
Versatile Applications: The VT-HNC100-1-23/W-08-0-0 is widely used in manufacturing, automation, and energy sectors for tasks such as controlling presses, transfer lines, robotic systems, and hydraulic systems in power generation equipment.

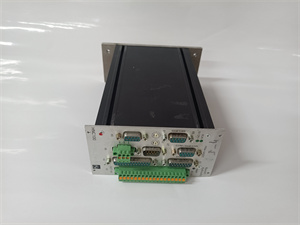

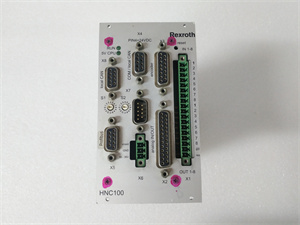

REXROTH VT-HNC100-1-23/W-08-0-0
Typical Application Scenarios
Manufacturing: Used in presses, transfer lines, and robotic systems to improve the quality and efficiency of production processes.
Automation: Controls the movement of conveyors, manipulators, and other automated equipment in production lines.
Energy: Applied to control hydraulic systems in power generation equipment, ensuring stable and efficient operation.
Related Model Recommendations
REXROTH VT-HNC100-1-23/W-08-P-0: A similar model with additional features and capabilities.
REXROTH VT3002-2X/32 Card Holder: A compatible card holder for the VT-HNC100 series.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the REXROTH VT-HNC100-1-23/W-08-0-0, ensure that the environment meets the specified requirements, including an operating temperature range of 0 to 50°C. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard panel mount for secure installation.
Maintenance Suggestions
To maintain the REXROTH VT-HNC100-1-23/W-08-0-0, perform regular inspections of the unit and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance.
