Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product model | REXROTH VM310 |
| Manufacturer | Bosch Rexroth |
| Product category | Industrial Motor |
| Input voltage range | 24V DC to 240V AC |
| Operating frequency | 50/60 Hz |
| Output voltage | +5V, +15V, -15V, +24V regulated DC |
| Number of input channels | 8 digital inputs (opto-isolated) |
| Number of output channels | 4 relay outputs (normally open/closed configurable) |
| Communication protocols | Modbus, Profibus |
| Interface | Standard Ethernet |
| Operating temperature | -20°C to +60°C |
| Storage temperature | -30°C to +80°C |
| Humidity | 10 to 90% RH, non-condensing |
| Protection class | IP65 |
| Dimensions | 14.7 cm x 5.15 cm x 11.4 cm |
| Weight | 0.6 kg |
| Certifications | CE, RoHS compliant |

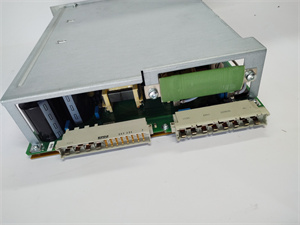

REXROTH VM310
Product Introduction
The REXROTH VM310 is a high-performance industrial motor designed for efficient and reliable control systems in manufacturing environments. It offers precise control and monitoring capabilities essential for industrial automation processes.
Core Advantages and Technical Highlights
Robust Construction: The VM310 is built to withstand harsh industrial environments, ensuring long-term reliable operation.
Wide Input Voltage Range: The motor supports a wide input voltage range (24V DC to 240V AC), making it suitable for diverse industrial environments.
Advanced Communication Protocols: It supports multiple communication protocols, including Modbus and Profibus, facilitating seamless integration with existing industrial networks.
High-Speed Processing: The VM310 features high-speed processing capabilities and precision control, ensuring efficient operation and enhanced system reliability.
Compact Design: With dimensions of 14.7 cm x 5.15 cm x 11.4 cm and a weight of 0.6 kg, the motor is compact and lightweight, facilitating easy installation and integration into existing systems.

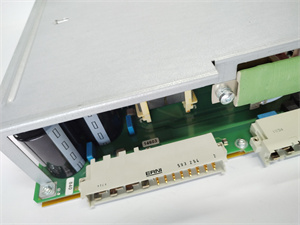

REXROTH VM310
Typical Application Scenarios
The REXROTH VM310 is widely used in various industrial sectors, including:
Power Generation Plants: Used to control and monitor energy production, ensuring optimal efficiency and reliability.
Petrochemical Refineries: Enables precise automation of chemical processes, enhancing safety and productivity.
General Automation Processes: Provides versatile functionality to streamline operations and improve overall performance.
Related Model Recommendations
REXROTH VM320: A related motor with similar control capabilities.
REXROTH VM330: Another motor suitable for similar applications.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the REXROTH VM310, ensure that the environment meets the specified requirements, including an operating temperature range of -20°C to +60°C. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard 483 mm (19-in.) cabinet for secure installation.
Maintenance Suggestions
To maintain the REXROTH VM310, perform regular inspections of the unit and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance.
