Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product model | REXROTH MSK030C-0900-NN-M1-UG1-NNNN R911308684 |
| Manufacturer | Bosch Rexroth |
| Product category | Synchronous Servo Motor |
| Operating Voltage | 115 V or 170 V |
| Rated Speed | Up to 9,000 rpm |
| Continuous Torque at Standstill | 0.9 Nm |
| Peak Torque | 1.5 Nm |
| Rated Power | 0.88 kW |
| Thermal Time Constant | 45 minutes |
| Protection Rating | IP65 |
| Weight | 1.9 kg |
| Shaft Type | Plain Shaft |
| Encoder Type | Optical Encoder with 128 Signal Periods |
| Holding Brake Torque | 1 Nm |
| Insulation Class | Class F |
| Housing Color | Black (RAL 9005) |
| Maximum Setup Height | Up to 1000 meters above sea level |

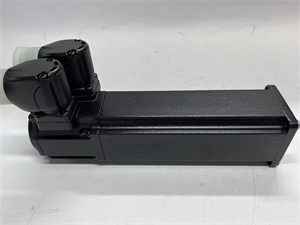

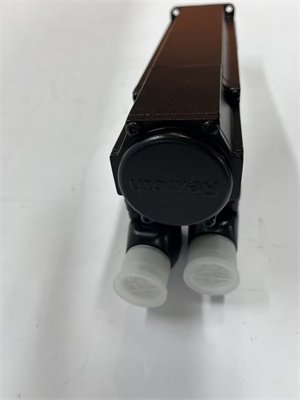

Rexroth MSK030C-0900-NN-M1-UG1-NNNN R911308684
Product Introduction
The REXROTH MSK030C-0900-NN-M1-UG1-NNNN R911308684 is a high-performance synchronous servo motor designed for precise motion control in industrial automation systems. It is part of the IndraDyn S series and is known for its high torque density, IP65 protection, and durable RAL 9005 housing. This motor is suitable for applications requiring consistent torque and position accuracy.
Core Advantages and Technical Highlights
High Precision and Reliability:
The REXROTH MSK030C-0900-NN-M1-UG1-NNNN R911308684 offers high-precision motion control with an integrated multiturn absolute encoder, ensuring reliable performance in demanding industrial environments.
Robust Industrial Design:
The motor features an IP65 protection rating, safeguarding it from dust and low-pressure water jets. This ensures durability in harsh industrial conditions.
Versatile Applications:
The REXROTH MSK030C-0900-NN-M1-UG1-NNNN R911308684 is suitable for a wide range of applications, including manufacturing, energy, material handling, and robotics.
Easy Integration:
The motor features industry-standard communication protocols and interfaces, ensuring seamless integration with existing systems.
Advanced Safety Features:
The motor includes a resolver feedback system with integrated multiturn absolute encoder, ensuring enhanced safety and ease of troubleshooting.

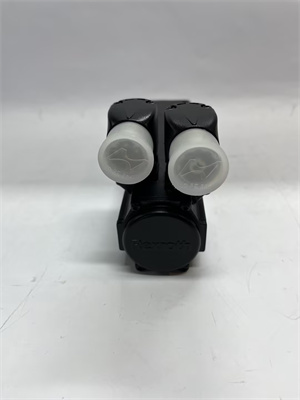

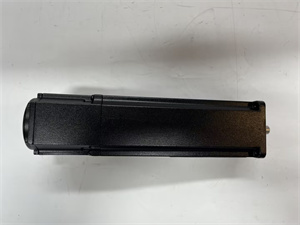

Rexroth MSK030C-0900-NN-M1-UG1-NNNN R911308684
Typical Application Scenarios
The REXROTH MSK030C-0900-NN-M1-UG1-NNNN R911308684 is widely used in various industrial sectors:
Manufacturing: For precise control in assembly lines and machine tools.
Energy: For pump control in water treatment plants.
Material Handling: For conveyor speed control in automotive assembly lines.
Food and Beverage Production: For controlling motion equipment on production lines.
Related Model Recommendations
REXROTH MSK030C-0900-NN-M1-UP1-NSNN: A similar model with a different encoder type, suitable for applications requiring higher precision.
REXROTH MSK071B-061-KG1-KN: A model with higher power capacity, suitable for applications requiring higher torque.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation:
Ensure the installation environment meets the specified temperature and humidity requirements. The motor should be installed in a location with adequate ventilation to dissipate heat. Verify that the power supply voltage is within the specified range (115 V or 170 V) to avoid damage to the motor.
Maintenance Suggestions:
Regularly inspect the installation to ensure the motor is securely mounted and all connections are tight. Monitor the operational status of the motor to detect any signs of malfunction early. Conduct functional testing on the motor at least once a year to ensure optimal performance.
Service and Guarantee Commitment
Bosch Rexroth provides comprehensive support for the REXROTH MSK030C-0900-NN-M1-UG1-NNNN R911308684, including a robust warranty that ensures product quality and reliability. The company offers extensive after-sales services such as technical support, repair services, and spare part supply. Bosch Rexroth’s global network of service centers ensures prompt assistance and expert guidance, demonstrating the company’s commitment to customer satisfaction and product excellence.
