Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product model | REXROTH CDB02.1B-ET-EC-EC-NN-NN-NN-NN-NN-FW |
| Manufacturer | Bosch Rexroth |
| Product category | Drive Controller |
| Operating Voltage | ±15 V |
| Operating Temperature Range | 0°C to 55°C |
| Storage Temperature Range | -40°C to 70°C |
| Dimensions (W x H x D) | 114 mm x 76 mm x 38 mm |
| Weight | 0.55 kg |
| Certifications | CE, UL |
| Input Impedance | 50 Ω |
| Communication Interface | Multi-Ethernet |
| Firmware Required | FWA-INDRV*-MPx-18VRS or higher |

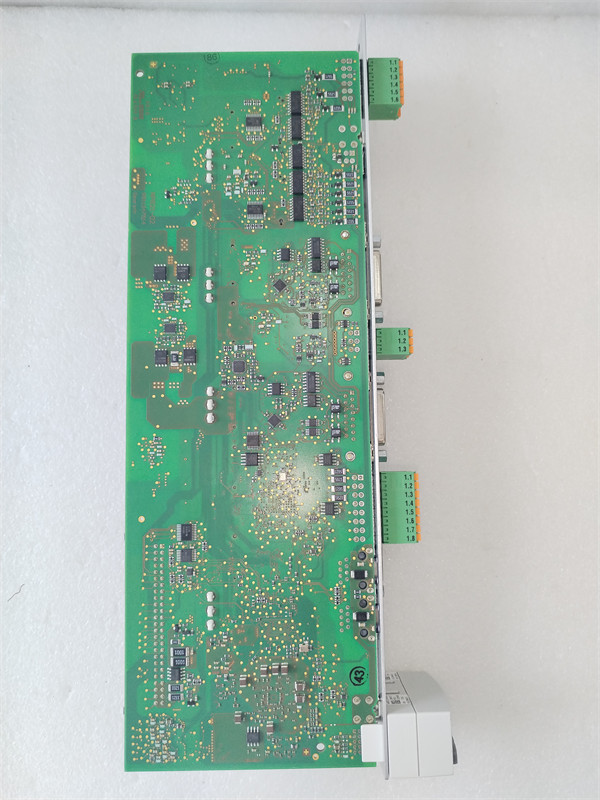

REXROTH CDB02.1B-ET-EC-EC-NN-NN-NN-NN-NN-FW
Product Introduction
The REXROTH CDB02.1B-ET-EC-EC-NN-NN-NN-NN-NN-FW is a high-performance drive controller designed for use in various industrial applications. It is part of the CDB02 series and features a double-axis design with an extended scope. This controller is compatible with HMD01 power sections and is designed for integration into machine tools, handling equipment, industrial robotics, food processing machines, and other applications .
Core Advantages and Technical Highlights
High Precision and Reliability:
The REXROTH CDB02.1B-ET-EC-EC-NN-NN-NN-NN-NN-FW offers high-precision control and reliable performance, making it suitable for demanding industrial environments.
Robust Industrial Design:
The controller is designed to operate reliably within a wide temperature range (0°C to 55°C) and can withstand harsh industrial conditions.
Versatile Applications:
The controller is suitable for a wide range of applications, including machine tools, handling equipment, industrial robotics, and food processing machines.
Easy Integration:
The controller features Multi-Ethernet communication and a multi-encoder interface, ensuring seamless integration with existing systems.
Advanced Safety Features:
The controller includes two safe motion interfaces and uses cables with a maximum length of 2,500 meters, ensuring enhanced safety in industrial environments .

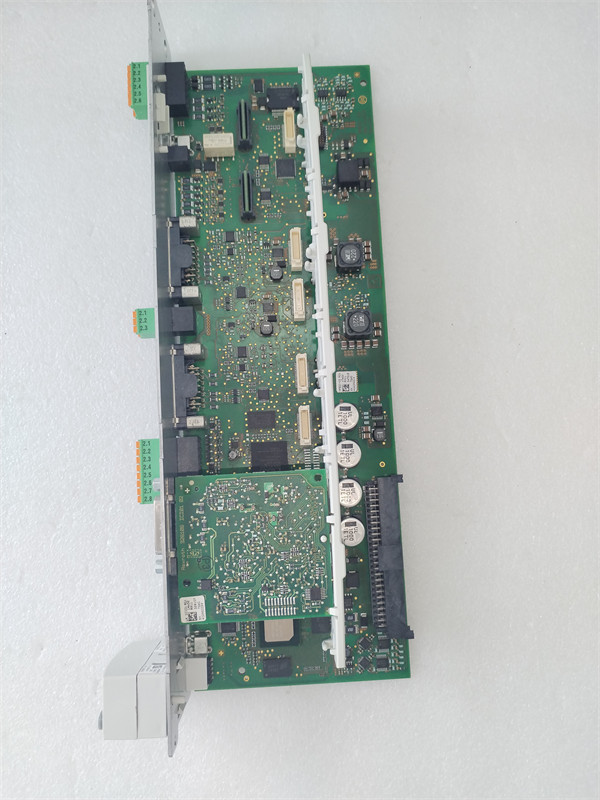

REXROTH CDB02.1B-ET-EC-EC-NN-NN-NN-NN-NN-FW
Typical Application Scenarios
The REXROTH CDB02.1B-ET-EC-EC-NN-NN-NN-NN-NN-FW is widely used in various industrial sectors:
Manufacturing: For precise control in assembly lines and machine tools.
Automotive: For control and monitoring in vehicle manufacturing and maintenance.
Aerospace: For reliable control in aircraft manufacturing and maintenance.
Food Processing: For precise control in food processing machines.
Related Model Recommendations
REXROTH CDB02.1B-ET-EC-EC-NN-S4-S4-NN-NN-FW: A similar model with additional features and capabilities .
REXROTH CDB02.1B-ET-EC-EC-NN-SB-SB-NN-NN-FW: Another model in the series, offering different configuration options .
REXROTH CDB02.1B-ET-EC-EC-EC-S4-S4-EC-NN-FW: A variant with additional communication interfaces .
Installation, Commissioning, and Maintenance Instructions
Installation Preparation:
Ensure the installation environment meets the specified temperature and humidity requirements. The controller should be installed in a location with adequate ventilation to dissipate heat. Verify that the power supply voltage is within the specified range (±15 V) to avoid damage to the controller .
Maintenance Suggestions:
Regularly inspect the installation to ensure the controller is securely mounted and all connections are tight. Monitor the operational status of the controller to detect any signs of malfunction early. Conduct functional testing on the controller at least once a year to ensure optimal performance .
Service and Guarantee Commitment
Bosch Rexroth provides comprehensive support for the REXROTH CDB02.1B-ET-EC-EC-NN-NN-NN-NN-NN-FW, including a robust warranty that ensures product quality and reliability. The company offers extensive after-sales services such as technical support, repair services, and spare part supply. Bosch Rexroth’s global network of service centers ensures prompt assistance and expert guidance, demonstrating the company’s commitment to customer satisfaction and product excellence .
