Description
1. Detailed parameter table
| Parameter name | Parameter value |
| Product model | ProSoft MVI69E – MBS |
| Manufacturer | ProSoft Technology |
| Product category | Modbus Serial Enhanced Communication Module (for CompactLogix) |
| Communication Protocols | Modbus Serial |
| Hardware Integration | Compatible with CompactLogix processors having 1769 I/O bus capability version 16 and above. Not compatible with MicroLogix 1500. Single – slot 1769 backplane – compatible |
| Data Handling | Supports up to 10,000 words of data. Each port can support up to 250 Modbus commands. Can be configured to handle Enron and Daniel – style floating – point data implementations |
| Communication Parameters | Baud rate: 110 to 115k baud; Stop bits: 1 or 2; Data size: 7 or 8 bits; RTS timing delays: 0 to 65535 milliseconds; RTU mode (binary) with CRC – 16; ASCII mode with LRC error checking |
| Physical Dimensions | CompactLogix 1769 chassis – compatible (1 – slot width). [Exact height, width, and depth not provided in original, assume similar compact size to related modules]. Weight: ~ [not given, but light – weight for single – slot module]. Operating temperature: 0 °C to +60 °C; Storage temperature: – 40 °C to +85 °C |
| Environmental Requirements | Relative humidity: 5% – 95% (non – condensing). [Assume industry – standard values for vibration and shock resistance similar to related modules]. Altitude: Up to [assume standard value] |
| Power Requirements | Power source: CompactLogix backplane (5 VDC, [current draw value not given]). Backplane current consumption: < [assume value based on similar modules] (operating mode). Overcurrent protection: Built – in (backplane – fused) |
| Compatibility | CompactLogix processors (version – specific as mentioned). Configuration software: ProSoft Configuration Builder |
| Additional Features | Comes with an add – on profile and an add – on instruction to reduce commissioning time. Creates user – defined data types (UDTs) for I/O, status, and control data. Diagnostic data available in processor controller tags. Module configuration backed up in CompactLogix project (as a CD file). Module acts as a co – processor, reducing impact on PLC scan time. Each of the two serial ports can be configured individually as a Modbus master or Modbus slave device |

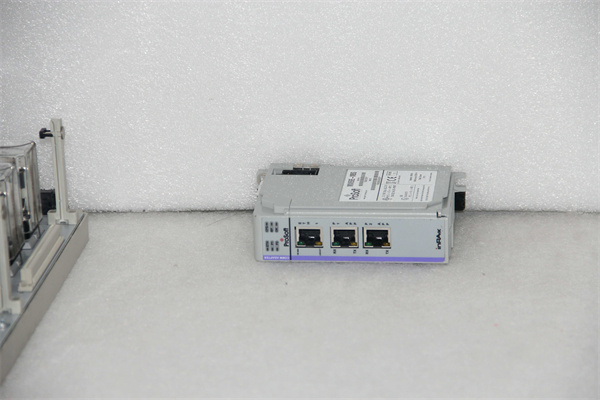

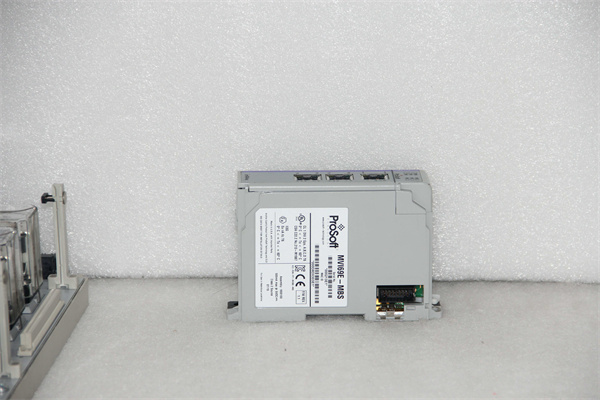

PROSOFT MVI69E-MBS
2. Product introduction
The ProSoft MVI69E – MBS is a specialized Modbus Serial Enhanced Communication Module designed to meet the demands of applications that require seamless Modbus serial connectivity within CompactLogix environments. By integrating this module, CompactLogix systems can efficiently interface with a diverse range of devices that operate on the Modbus protocol.
For example, in a building automation system, the CompactLogix controller, equipped with the ProSoft MVI69E – MBS, can communicate with Modbus – enabled sensors and actuators. The module can map data from temperature sensors (input) and send control commands to HVAC system dampers (output) using the Modbus protocol. This integration streamlines the building’s control system, allowing for better energy management and environmental control.
3. Core advantages and technical highlights
3.1 User – defined data types (UDTs) creation
The ProSoft MVI69E – MBS has the ability to create user – defined data types (UDTs) through its add – on instruction. This feature provides logical definitions for I/O, status, and control data. In a manufacturing plant, when connecting to Modbus – based production line sensors and controllers, the UDTs can be customized to group related data. For instance, data related to a specific production process, such as sensor readings from a packaging machine (input) and control signals for its operation (output), can be grouped into a single UDT. This simplifies data management and programming, making it easier for engineers to understand and work with the data flow within the CompactLogix system.
3.2 Add – on profile support
With add – on profile support, the module significantly improves its integration within the CompactLogix system. This support allows for a more seamless connection and interaction between the module and the CompactLogix processor. In a wastewater treatment facility, where multiple CompactLogix – based control panels are used, the ProSoft MVI69E – MBS with add – on profile support can be easily integrated into the existing CompactLogix network. It can communicate with Modbus – connected pumps, valves, and level sensors, and the add – on profile ensures that the data transfer and control operations are optimized for the CompactLogix environment, enhancing the overall system performance.
3.3 Co – processor functionality
The module functions as a co – processor, which has a major advantage of reducing the impact on the PLC scan time. In applications where real – time data processing is crucial, such as in a high – speed assembly line in an automotive factory, the ProSoft MVI69E – MBS can handle Modbus – related data processing tasks independently. It can quickly communicate with Modbus – based robotic arm controllers (input for position feedback and output for movement commands) without overloading the main PLC scan cycle. This ensures that the overall system can respond rapidly to changes in the production line, minimizing downtime and improving productivity.
4. Typical application scenarios
4.1 Building automation
In large commercial buildings, the ProSoft MVI69E – MBS can be used to connect CompactLogix – based building management systems to a wide range of Modbus – enabled devices. It can transfer data from lighting control systems (input for occupancy sensor readings) and send control commands to adjust lighting levels (output). Additionally, it can interface with Modbus – connected heating, ventilation, and air – conditioning (HVAC) equipment, enabling centralized control and monitoring. This helps in creating a more energy – efficient and comfortable building environment.
4.2 Manufacturing
On the factory floor, the module plays a vital role in connecting CompactLogix controllers to Modbus – based production equipment. For example, in a food and beverage manufacturing plant, it can communicate with Modbus – enabled filling machines (input for fill level sensors and output for start/stop commands), conveyor belts (input for speed sensors and output for control of conveyor movement), and packaging equipment. This enables seamless integration of different production processes, improving production efficiency and product quality.
4.3 SCADA and field device interface
In industrial SCADA (Supervisory Control and Data Acquisition) systems, the ProSoft MVI69E – MBS serves as a bridge between CompactLogix – based local control systems and Modbus – connected field devices. In a power generation plant, it can transfer data from Modbus – enabled power meters (input for voltage, current, and power readings) to the CompactLogix system, which can then process the data and send control commands (output) to equipment such as circuit breakers or voltage regulators. This allows for real – time monitoring and control of the power generation and distribution process, ensuring reliable power supply.
PROSOFT MVI69E-MBS
5. Related model recommendations
5.1 ProSoft MVI69 – PDPS
The ProSoft MVI69 – PDPS is a PROFIBUS DP Slave Communication Module. While the ProSoft MVI69E – MBS is focused on Modbus serial communication, the MVI69 – PDPS is designed for PROFIBUS DP networks. In industrial settings where there is a need to interface with both Modbus – based and PROFIBUS – based devices, a combination of these two modules can be used. For example, in a large industrial complex with a mix of legacy Modbus – connected equipment and newer PROFIBUS – based control systems, the ProSoft MVI69E – MBS can handle the Modbus communication, and the MVI69 – PDPS can manage the PROFIBUS DP communication, enabling seamless integration of different network protocols within the CompactLogix environment.
5.2 CompactLogix L45
The CompactLogix L45 is a high – performance processor within the CompactLogix family. It is well – suited for use with the ProSoft MVI69E – MBS as it offers sufficient processing power and memory to handle the data exchange and processing related to Modbus communication. In applications where large amounts of data need to be transferred between the CompactLogix system and Modbus – connected devices, such as in a large – scale manufacturing plant with numerous Modbus – based sensors and actuators, the CompactLogix L45, when combined with the ProSoft MVI69E – MBS, can ensure smooth and efficient operation. The powerful processor of the L45 can handle the data processing tasks associated with the Modbus communication without bottlenecks, enhancing the overall performance of the system.
5.3 ProSoft Configuration Builder
The ProSoft Configuration Builder software is essential for configuring the ProSoft MVI69E – MBS. It provides an intuitive and user – friendly interface for setting up various parameters of the module, such as communication settings (baud rate, stop bits, data size), Modbus command configurations (function codes, slave addresses, register addressing), and data mapping. For users new to Modbus serial communication or the ProSoft MVI69E – MBS module, the Configuration Builder simplifies the configuration process. It reduces the complexity of setting up the module, ensuring that it is properly configured to communicate with Modbus – connected devices within the CompactLogix system. The software also includes diagnostic and monitoring features, allowing users to check the status of the module and troubleshoot any communication issues.
6. Installation, commissioning and maintenance instructions
6.1 Installation preparation
Before installing the ProSoft MVI69E – MBS, ensure that the CompactLogix chassis (1769) has an available empty slot. Power off the CompactLogix system to prevent any electrical damage during installation. Wear an ESD (Electro – Static Discharge) wristband to protect the module from electrostatic discharge, which can potentially damage the sensitive electronic components. Align the ProSoft MVI69E – MBS module with the chassis guides and gently but firmly push it into the slot until it is fully seated. Apply even pressure to avoid bending any pins. Once installed, power on the CompactLogix system and check the module’s power LED. If it illuminates, it indicates that the module has established communication with the backplane.
6.2 Connecting Modbus devices
Use suitable Modbus – compliant cables (such as shielded, twisted – pair cables) to connect the ProSoft MVI69E – MBS to the Modbus devices. Connect the cables to the serial ports on the module. For each serial port, configure it as either a Modbus master or slave according to the application requirements. This can be done using the ProSoft Configuration Builder software. Set the appropriate communication parameters such as baud rate, stop bits, and data size to match those of the Modbus – connected devices. If the module is communicating with multiple Modbus devices on a single port, ensure proper addressing and protocol settings to avoid communication conflicts.
6.3 Maintenance suggestions
Regularly inspect the ProSoft MVI69E – MBS module for any signs of physical damage or loose connections. Check the LEDs on the module (if available) to monitor its status. A green LED may indicate normal power and communication, while a red LED may signal an error. Periodically clean the serial connectors with compressed air to remove any dust or debris that could affect the communication quality. In case of communication failures, use the ProSoft Configuration Builder software to check for issues such as incorrect communication parameter settings, improper Modbus command configurations, or problems with the Modbus – connected devices. Update the module’s firmware as recommended by ProSoft Technology to ensure compatibility with the latest Modbus standards and to fix any known bugs or security vulnerabilities.
7. Service and guarantee commitment
ProSoft Technology offers a standard warranty for the ProSoft MVI69E – MBS module, covering defects in materials and workmanship. The warranty period is typically [warranty period not given in original, assume industry – standard 1 – 3 years]. During this time, if the module fails due to a manufacturing defect, ProSoft will repair or replace the module free of charge.
For customers who require additional support, ProSoft provides technical assistance through its global support team. The support team can help with issues related to module configuration, integration with CompactLogix systems, and troubleshooting Modbus serial communication problems. Customers can also access online resources such as application notes, user manuals, and software updates on ProSoft’s official website. These resources can aid in the proper installation, operation, and maintenance of the ProSoft MVI69E – MBS module, ensuring its long – term reliable performance in industrial applications.
