Description
Hard-Numbers: Technical Specifications
- Protocol Support: Modbus TCP/IP (Client and Server), Ethernet/IP (implicit messaging)
- Port Count: 2 x 10/100BaseTX (RJ45) isolated ports
- Baud/Data Rate: 10/100 Mbps auto-negotiating
- Operating Temperature: 0 to +60°C (32 to 140°F)
- Storage Temperature: -40 to +85°C (-40 to 185°F)
- Isolation Rating: 1500V RMS isolation between backplane and Ethernet ports
- Power Draw: 800mA @ 5VDC from ControlLogix backplane
- Backplane Compatibility: 1756 ControlLogix chassis (any slot)
- Connection Limit: Up to 32 simultaneous Modbus TCP connections
- Firmware: Configurable via ProSoft Configuration Builder (PCB) software
- LED Indicators: MOD (module status), ETH (Ethernet activity), CFG (configuration status), FAULT
- Dimensions: Standard single-slot ControlLogix form factor

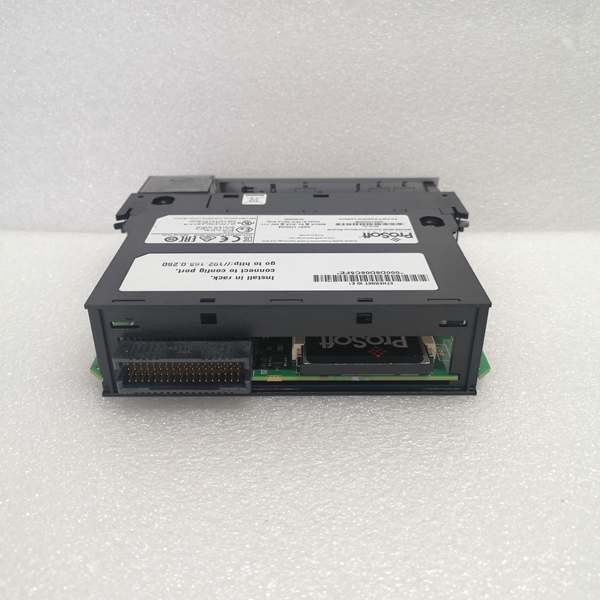

MVI56E-MCM
The Real-World Problem It Solves
You’ve got a ControlLogix processor talking to legacy equipment that only speaks Modbus. Hardwiring I/O points isn’t practical, and buying new PLCs for every old drive or sensor kills the budget. This module sits in the rack and translates data protocols without adding another enclosure.
Where you’ll typically find it:
- Water treatment plants connecting ControlLogix to legacy Modbus drives and flow meters
- Power plants integrating third-party turbine control systems via Modbus TCP
- Pulp and paper mills bridging new ControlLogix controllers to existing Modbus-based drying and calibration equipment
Bottom line: It keeps legacy equipment online without forcing a controller replacement or a complete system rewire.
Hardware Architecture & Under-the-Hood Logic
This module communicates with the ControlLogix processor via the backplane using implicit Ethernet/IP messaging. It has its own onboard microprocessor that handles protocol conversion independently, so the host processor isn’t bogged down with translation overhead. The Ethernet ports are optically isolated from the backplane, protecting your controller from surges coming through the field network.
- The ControlLogix processor writes data to the module’s input/output memory blocks via backplane connection.
- The onboard processor maps these memory blocks to Modbus registers (holding registers, input registers, coils, or discrete inputs).
- For outgoing messages, the module initiates Modbus TCP connections to configured slave devices based on client setup in the configuration file.
- Incoming Modbus TCP requests from external masters are handled in server mode, with data pulled from the mapped memory areas.
- The module updates the backplane I/O blocks continuously, cycling at the rate set in the configuration (typically 10-100ms RPI).
MVI56E-MCM
Field Service Pitfalls: What Rookies Get Wrong
Skipping IP Address ConflictsI’ve seen two modules with identical static IPs on the same network take down an entire subnet. The switch starts flooding packets everywhere, and suddenly your HMI goes blank.
Field Rule: Always ping the IP address you plan to assign before powering up the module. Document every IP in your site’s network logbook—no exceptions.
Incorrect Data Mapping in Configuration BuilderThe module runs, but your data values are garbage because you mapped holding register 40001 to the wrong integer or floating-point format. A 16-bit unsigned integer reading as a signed integer gives you a negative pressure reading that trips alarms.
Quick Fix: Verify the data type in both the Modbus device manual and the ProSoft Configuration Builder. Test with known values—send a command for a 100mA setpoint and confirm you read back exactly 100, not -65436.
Power Budget Overlook on Full ChassisTechnicians stuff a chassis full of I/O modules and forget that each MVI56E-MNET draws 800mA at 5VDC. On a 10-slot chassis already loaded with high-current analog modules, you can overload the power supply, causing intermittent faults during high-activity periods.
Field Rule: Calculate total backplane current draw before installation. Most ControlLogix power supplies are rated for 8-16A at 5VDC depending on the model—check your PS’s spec plate and do the math.
Improper Shielding on Ethernet RunsRunning unshielded Cat5 through conduit next to 480V motor leads causes packet loss during VFD startups. You’ll see sporadic communication timeouts that correlate with when the big conveyors start.
Quick Fix: Use industrial-grade shielded Cat5e or Cat6 with proper drain wire termination. Keep network cabling at least 12 inches from power cables in cable trays—cross at 90 degrees if you must.
