Description
Description
ABB PPD113B03 26 100110 is a high performance process control processor from ABB’s AC 800 PEC series, classified as a distributed control system (DCS) module. It delivers reliable excitation and power distribution control for demanding industrial environments.
Application Scenarios
In a 500 MW hydro electric plant, the plant’s turbine generator set required tighter voltage regulation to meet grid codes while minimizing reactive power losses. By integrating ABB PPD113B03 26 100110 into the generator’s excitation loop, the plant achieved sub 0.1 % voltage deviation and reduced reactive power overshoot during load transients, eliminating the need for costly external static VAR compensators. The module’s compact size and built in redundancy allowed seamless insertion into the existing ABB 800 xA control cabinet, addressing space constraints and improving overall system reliability.
Parameter
| Parameter | Value / Description |
| Product Model | PPD113B03 26 100110 |
| Manufacturer | ABB |
| Product Category | DCS / Process control processor (AC 800 PEC series) |
| Input Voltage | 100 V ~ 240 V AC, 50/60 Hz |
| Rated Power | 1 100 W (10 A) |
| I/O Capacity | Up to 384 digital I/O points (expandable) |
| Communication Protocols | Modbus TCP/IP, Ethernet/IP, OPC UA, IEC 61850 |
| Redundancy | Dual power supplies and dual processors for fault tolerant operation |
| Physical Dimensions | 113 mm × 26 mm × 100 mm (L × W × H) |
| Operating Temperature | –25 °C ~ +70 °C (industrial grade) |
| Environmental Rating | IP20, IEC 60947 4 1 compliant |
| Weight | Approx. 0.5 kg |

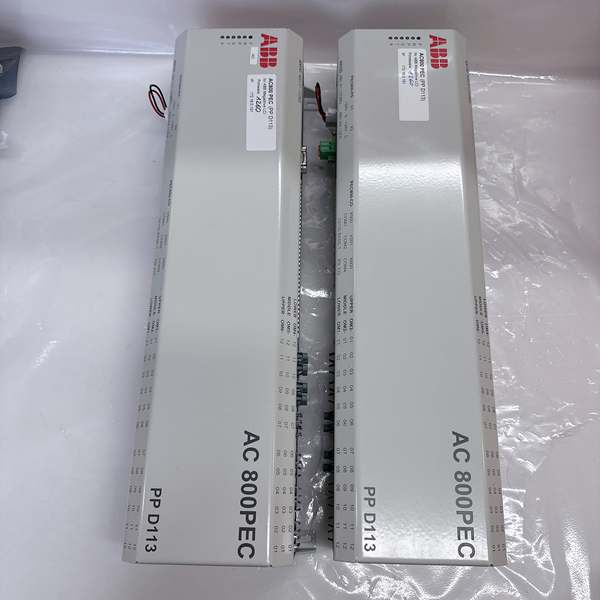

PPD113B03-26-100110
Technical Principles and Innovative Values
Integrated Excitation Control – Implements precise field current regulation for synchronous generators, improving voltage stability and power quality compliance.
Dual Processor Redundancy – Two independent CPUs run in hot standby mode, guaranteeing uninterrupted control even if one processor fails.
High Speed Ethernet Backbone – 10/100 Mbps Ethernet with deterministic traffic scheduling ensures real time data exchange across the plant network.
Scalable I/O Architecture – Modular I/O slots support up to 384 points, allowing flexible expansion without hardware redesign.
Multi Protocol Compatibility – Native support for Modbus, OPC UA and IEC 61850 enables seamless integration with existing SCADA/DCS platforms, reducing engineering effort.
Application Cases and Industry Value
Hydro Electric Generation (500 MW) – Replaced legacy analog excitation panels with ABB PPD113B03 26 100110, achieving a 15 % reduction in reactive power consumption and a 30 % decrease in maintenance visits due to the module’s self diagnostic capabilities. Operators reported smoother ramp up/down cycles and enhanced grid compliance.
Petrochemical Continuous Process Plant – Deployed a network of three PPD113B03 26 100110 units to coordinate temperature, pressure, and flow control loops. The dual processor design eliminated single point failures, resulting in a 22 % increase in overall equipment effectiveness (OEE) and a measurable drop in unplanned shutdowns.
Related Product Combination Solutions
ABB PPD113B01 10 150000 – Lower channel companion for smaller subsystems, ideal for auxiliary motor drives.
ABB PPD512A10 15000 – High power I/O expansion module, pairs with PPD113B03 26 100110 to increase analog channel count.
ABB PPD113 B03 23 111615 – Alternative processor with enhanced memory for complex algorithmic tasks.
ABB HN800 Bus Extender (Vertical Bottom) – Extends the HN800 fieldbus to additional racks, enabling larger distributed architectures.
ABB PPD115A102 – Redundant power supply unit that complements the dual processor redundancy of PPD113B03 26 100110.

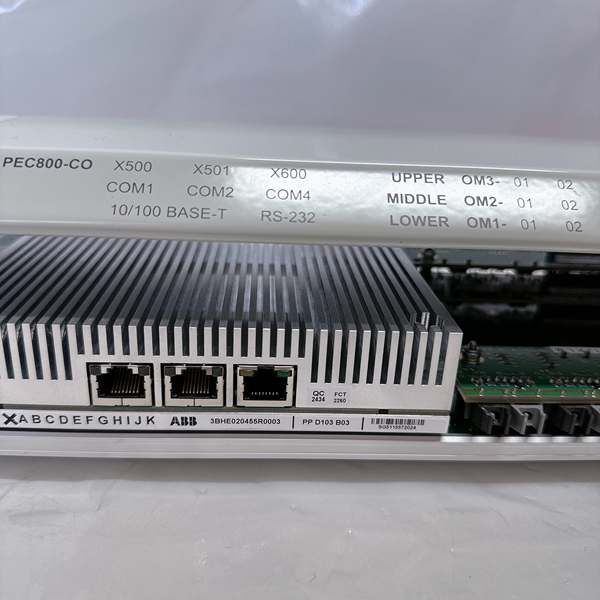

PPD113B03-26-100110
Installation, Maintenance, and Full Cycle Support
Installation of ABB PPD113B03 26 100110 is streamlined by its DIN rail mounting and standardized connector layout. Prior to mounting, verify the 100 V 240 V AC supply and confirm clearance for the 113 mm × 26 mm × 100 mm footprint. The module’s built in diagnostic LEDs and web based configuration tool allow rapid commissioning; engineers can upload IEC 61131 3 programs via Ethernet and perform online testing without removing the unit from the rack.
Routine maintenance focuses on periodic visual inspection of the power connectors, firmware updates through ABB’s Automation Builder, and verification of redundancy status via the integrated health monitoring dashboard. In case of a processor fault, the hot standby CPU automatically assumes control, and the failed unit can be hot swapped within minutes, minimizing downtime. ABB provides a global spare parts network covering over 65 countries, 12 month warranty, and 24 × 7 technical support, ensuring that customers receive prompt assistance, firmware patches, and on site engineering services when needed.
