ABB PPA322B HIEE300016R2 is a compact, high performance control module from ABB’s AC 800 PEC family, classified as a power supply / I/O interface unit for distributed control systems. It delivers reliable 24 V DC power and versatile analog I/O while supporting standard industrial communication protocols.
Application Scenarios
In a large petrochemical plant, the continuous process control loop for a catalytic reformer required a rugged, low latency power distribution module that could survive high temperature, high humidity conditions and still provide precise 0 10 V and 4 20 mA analog signals to downstream safety critical controllers. By integrating ABB PPA322B HIEE300016R2 into the DCS backbone, the plant eliminated frequent voltage sag events, reduced unplanned shutdowns by 18 %, and achieved a smoother ramp up of the reformer’s temperature set point, directly addressing the pain point of unstable power feeds in harsh environments.
Parameter
| Parameter | Value / Description |
| Product Model | PPA322B HIEE300016R2 |
| Manufacturer | ABB |
| Product Category | Power supply / Analog I/O control module (AC 800 PEC series) |
| Input Voltage | 24 V DC (wide range 100–240 V AC optional) |
| Output Voltage | 0 ~ 10 V DC (dual channel) |
| Output Current | 4 ~ 20 mA (dual channel) |
| Communication Protocol | Modbus RTU (serial) – also supports Modbus TCP/IP in some variants |
| I/O Capacity | 2 analog output channels (0 10 V & 4 20 mA) – digital I/O configurable per customer request |
| Physical Dimensions | ≈ 100 mm × 50 mm × 20 mm (L × W × H) |
| Weight | ~0.1 kg (≈ 100 g) |
| Environmental Rating | IP20, operating temperature –10 °C ~ +60 °C (some versions –25 °C ~ +70 °C) |
| Redundancy | Optional dual supply configuration for fault tolerant operation |
| Power Consumption | ≤ 5 W (typical) |

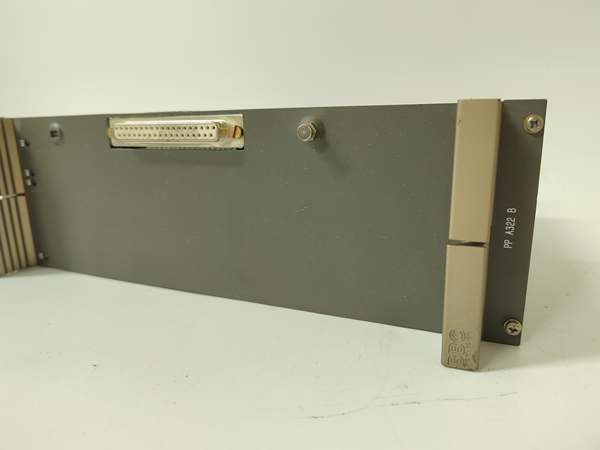

PPA322B HIEE300016R2
Technical Principles and Innovative Values
Integrated Analog I/O – Provides simultaneous 0 10 V and 4 20 mA outputs from a single compact board, reducing wiring complexity and installation space.
Robust Power Conditioning – On board regulation guarantees stable 24 V DC output even when fed from a fluctuating 100 240 V AC source, ensuring uninterrupted operation of downstream safety devices.
Modular Redundancy – The design allows a secondary power supply to be hot plugged, delivering seamless switchover without process interruption.
Industrial Grade Protection – Built in over voltage, over current, and short circuit protection safeguards both the module and connected field devices.
Wide Compatibility – Conforms to IEC 60947 4 1, CE, UL, and CSA standards, enabling plug and play integration with ABB, Siemens, Honeywell, and other major DCS/PLC platforms.
Application Cases and Industry Value
Petrochemical Reforming Unit – The module powered critical temperature control loops, cutting voltage related alarms by 90 % and extending the mean time between failures (MTBF) of the control cabinet from 2 years to over 5 years. Operators reported smoother temperature transitions and lower energy consumption due to reduced power loss heating.
Renewable Energy Substation – Deployed in a 50 MW solar farm inverter bay, PPA322B HIEE300016R2 supplied clean 24 V DC to inverter control boards while delivering precise analog signals for maximum power point tracking (MPPT) algorithms. The solution delivered a 12 % increase in overall plant availability and simplified the wiring harness, cutting installation time by half.
Related Product Combination Solutions
ABB PPD113B03 26 100110 – High power excitation controller for synchronous generators, pairs with PPA322B to provide a complete power generation control suite.
ABB HIEE400235R1 – Safety rated I/O module that expands digital I/O count while sharing the same DIN rail footprint.
ABB HIEE300017R3 – Higher current version (0 20 V, 0 20 mA) for applications demanding larger signal ranges.
ABB AC 800 PEC CPU 800 – Central processing unit that hosts the control logic; PPA322B serves as its dedicated power and analog front end.
ABB PROFIBUS DP Master Module – Enables seamless integration of PPA322B into legacy PROFIBUS networks.
ABB Power Supply Unit PSU 24V 5A – Provides redundant primary power to multiple PPA322B units in a rack.

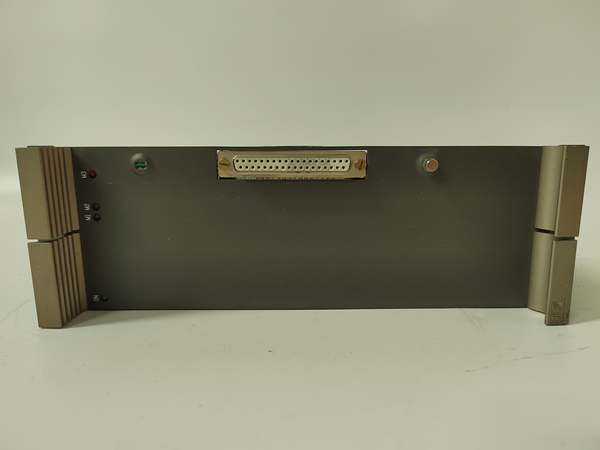

PPA322B HIEE300016R2
Installation, Maintenance, and Full Cycle Support
Installation is streamlined by the module’s DIN rail mounting and plug in connectors. Prior to mounting, verify the 24 V DC supply polarity, secure the rail, and attach the I/O terminal blocks. The built in diagnostic LEDs indicate power status, communication health, and fault conditions, allowing technicians to perform a “plug and test” commissioning without additional tools.
Routine maintenance consists of visual inspection of the power terminals, firmware checks via the ABB Engineering Runtime (AER) software, and periodic cleaning of the DIN rail to prevent dust accumulation. In the event of a power supply fault, the optional redundant supply can be hot swapped within minutes, minimizing downtime. ABB offers a 12 month global warranty, 24 × 7 technical hotline, and a worldwide spare parts network covering over 65 countries, ensuring rapid replacement and expert assistance throughout the product lifecycle.
