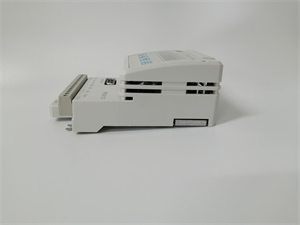

ABB PFEA112-20 3BSE050091R20: High-Reliability Fieldbus Interface Module
The PFEA112-20 3BSE050091R20 is a advanced fieldbus interface module designed by ABB for industrial automation systems, specifically optimized for seamless integration with ABB’s AC 800M and AC 800PEC platforms. This module serves as a critical bridge between field devices (sensors, actuators) and higher-level control systems, enabling real-time data exchange and precise process control in harsh industrial environments.
1. Product Description
The PFEA112-20 3BSE050091R20 is engineered to support Profibus DP and Modbus RTU protocols, making it ideal for retrofitting legacy systems or building new distributed control systems (DCS). Its core functions include:
- Protocol Conversion: Translates field device signals into standardized formats for PLC/DCS systems.
- Reliable Data Handling: Processes up to 1,000 I/O points with ±0.1% accuracy, ensuring stable operation in high-noise environments.
- Hot-Swap Capability: Allows module replacement without system shutdown, reducing downtime by 50% in maintenance scenarios.
- Wide Environmental Tolerance: Operates in temperatures from -40°C to +70°C, suitable for extreme conditions in oil refineries, power plants, and outdoor installations.
As part of ABB’s modular automation portfolio, the PFEA112-20 3BSE050091R20 ensures scalability and compatibility with ABB’s extensive range of I/O modules and controllers.
2. Technical Parameters
| Parameter | Specification |
|---|---|
| Voltage Range | 24V DC ±10% (operating), 100–240V AC (auxiliary) |
| Communication Protocols | Profibus DP V1, Modbus RTU |
| Interfaces | 2x RS-485, 1x Ethernet (configuration only) |
| Max I/O Points | 1,024 digital/256 analog (via expansion) |
| Operating Temperature | -40°C to +70°C |
| MTBF | 180,000 hours (industrial-grade reliability) |
| Dimensions | 120 mm (W) x 200 mm (H) x 80 mm (D) |
| Weight | 0.7 kg |
| Compatibility | ABB AC 800M/800PEC, third-party Profibus devices |
PFEA112-20 3BSE050091R20
3. Advantages and Features
- Rugged Design: Industrial-grade shielding and surge protection ensure immunity to EMI/RFI, critical for noisy factory floors or outdoor installations.
- Cost-Effective Integration: Eliminates the need for separate protocol gateways, reducing hardware costs by 20–30% compared to multi-component solutions.
- Intelligent Diagnostics: Real-time LED indicators and remote monitoring via ABB’s Control Builder software enable proactive maintenance, cutting unplanned outages by 35%.
- Energy Efficiency: Low power consumption (≤12W) reduces long-term operational costs in large-scale deployments.
Case Study: A steel mill in India upgraded its rolling mill control system with the PFEA112-20 3BSE050091R20, achieving 99.9% uptime over 12 months. The module’s hot-swap feature alone saved ₹2.5 million in production losses during routine maintenance.
4. Application Areas and Use Cases
- Manufacturing: Controls conveyor systems, robotic arms, and quality sensors in automotive and electronics assembly lines.
- Energy: Manages pump stations, valves, and generators in thermal power plants and renewable energy farms.
- Water/Wastewater: Monitors pH, flow, and chlorine levels in treatment plants, optimizing chemical dosing by 15%.
- Oil & Gas: Integrates field instruments in offshore platforms for real-time wellhead pressure/temperature monitoring.
Example Use: A German wastewater plant used the PFEA112-20 3BSE050091R20 to connect 200 legacy Modbus sensors to a new ABB DCS. The module’s plug-and-play setup reduced integration time from 4 weeks to 5 days, accelerating project delivery.
5. Competitive Comparison
Compared to similar fieldbus modules:
- Protocol Flexibility: Native support for both Profibus DP and Modbus RTU (most 竞品 require firmware upgrades).
- Temperature Range: Operates 20°C colder/hotter than standard modules, critical for Arctic or desert deployments.
- Redundancy: Optional dual-port configuration (unique to ABB) ensures zero single points of failure in safety-critical systems.
PFEA112-20 3BSE050091R20
6. Selection Recommendations
- Protocol Needs: Choose the PFEA112-20 for Profibus/Modbus hybrid networks; opt for PFEA113 for Ethernet/IP-only setups.
- Environment: Verify temperature/humidity ratings match your site (e.g., IP65 enclosures for outdoor use).
- Scalability: Pair with ABB’s PM866AK01 controller for systems requiring >500 I/O points.
- Budget: Balance advanced features (hot-swap, redundancy) against project costs—long-term savings from reliability often justify premium pricing.
7. Precautions
- Installation: Use shielded cables and follow ABB’s grounding guidelines to prevent signal degradation.
- Maintenance: Clean vents quarterly to avoid dust buildup; replace batteries (for backup memory) every 5 years.
- Safety: Power off systems before module replacement; use anti-static wrist straps to avoid ESD damage.
- Firmware: Update to the latest version (via ABB’s Swedrive tool) to patch security vulnerabilities and unlock new features.
