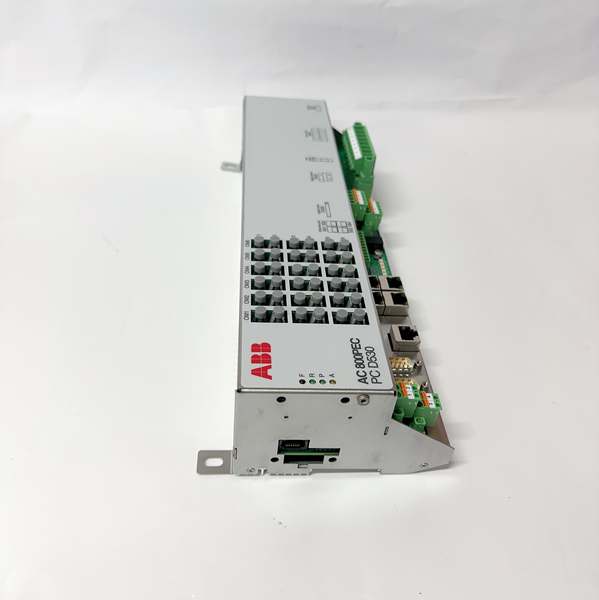

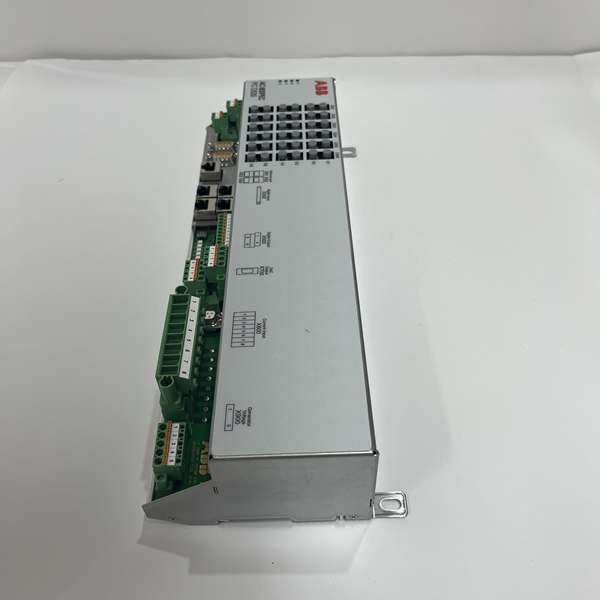

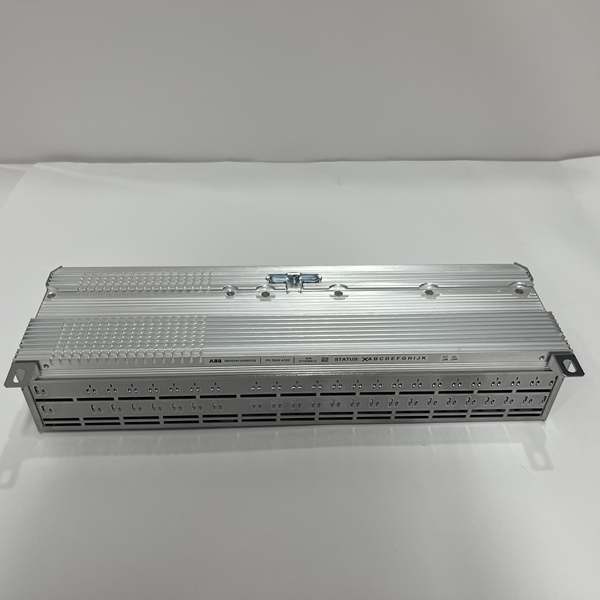

PCD530A102 3BHE041343R0102

Description

Product Overview

The ABB PCD530A102 is a highperformance industrial control module designed for demanding automation environments. As part of ABB’s AC 800 PCE series, the ABB PCD530A102 integrates a 32bit processor, 128 MB of memory and a flexible I/O architecture, delivering fast, deterministic control for complex processes such as material handling, packaging, printing, and conveyor systems. Its compact, DINrailmountable chassis (approximately 100 mm × 100 mm × 90 mm) combines power, communication and I/O modules into a single unit, enabling streamlined wiring and reduced panel space. The controller supports a wide range of industrial protocols—including Ethernet/IP, Modbus TCP, Profibus and OPC UA—facilitating seamless integration into SCADA, DCS and IEC 61850based networks. Built for reliability, the ABB PCD530A102 operates from a 24 V DC supply, tolerates temperatures from –25 °C to +70 °C and meets IEC 6094741 standards for electromagnetic compatibility, making it suitable for harsh plant conditions while ensuring continuous, faulttolerant operation.

Technical Specifications

PCD530A102 3BHE041343R0102

Main Features and Advantages

The ABB PCD530A102 delivers a blend of processing power and modular flexibility that distinguishes it from conventional PLCs. Its 32bit CPU and 128 MB memory enable rapid execution of IEC 611313 programs, complex motion control algorithms and realtime data logging, while the builtin Ethernet and USB ports provide highspeed connectivity for remote monitoring and firmware updates. The module’s extensive I/O capacity—up to 512 digital points—allows a single controller to manage large plant sections, reducing the need for distributed cabinets and simplifying maintenance. Robust industrialgrade design ensures immunity to electromagnetic interference and reliable operation across a wide temperature range, meeting the stringent demands of sectors such as petrochemical, foodbeverage and pharmaceuticals. Moreover, the ABB PCD530A102 supports multiple communication standards (Modbus TCP, Profibus, OPC UA, Ethernet/IP), enabling seamless integration with existing SCADA/DCS infrastructures and facilitating a smooth transition to Industry 4.0 architectures. Its compact DINrail form factor and lightweight construction further reduce installation costs and space requirements, while the selfdiagnosis and faultalarm functions provide proactive health monitoring, minimizing unexpected downtime.

Application Field

The ABB PCD530A102 is ideally suited for mediumscale automation projects where high reliability and extensive I/O are required. In the manufacturing sector, it controls robotic cells, conveyor belts and packaging lines, delivering precise synchronization and rapid response to sensor inputs. Within process industries such as chemicals and petrochemicals, the controller manages batch sequencing, safety interlocks and realtime monitoring of critical parameters, ensuring compliance with stringent safety standards. In foodbeverage and pharmaceutical facilities, the ABB PCD530A102 handles hygienicgrade equipment, providing deterministic control of mixers, fillers and sterilizers while maintaining traceability through its communication interfaces. Powergeneration plants employ the module as an excitation control unit for generators, leveraging its highprecision pulse output and monitoring capabilities to stabilize voltage and reactive power. Across all these applications, the ABB PCD530A102 enhances operational efficiency by consolidating control, I/O and communication into a single, rugged package, thereby reducing wiring complexity, lowering total cost of ownership and supporting predictive maintenance strategies.

Related Products

ABB PCD530A101 – a lowerchannel variant of the same series, offering 256 I/O points for smaller machines.
ABB PCD530A103 – an upgraded model with 1 GHz processor and 256 MB memory, targeting highspeed motion control.
ABB PCD540A102 – a sister product featuring analog I/O expansion for processcontrol loops.
ABB PCD530A102EX – an excitationcontrol specific version with dedicated 24 V DC winding drive outputs.
ABB PCD530A102IO – a modular I/O extension kit providing additional digital and analog channels.

Installation and Maintenance

Preinstallation preparation: Verify that the installation environment meets the –25 °C to +70 °C operating range and that a clean, dustfree panel is available for DINrail mounting. Confirm the 24 V DC power supply is stable and that all required communication cables (Ethernet, RS485) are rated for industrial use. Perform a visual inspection of the module’s connectors, secure the DINrail brackets, and program the initial PLC logic using ABB’s Automation Builder before energizing the unit.

Maintenance recommendations: After commissioning, schedule periodic selfdiagnosis checks via the builtin diagnostic screen and update firmware annually to incorporate the latest security patches. Clean the enclosure to prevent dust accumulation, verify the integrity of I/O terminal blocks, and inspect Ethernet ports for corrosion. Keep a spare ABB PCD530A102 on hand for rapid field replacement, and maintain a log of any fault alarms to support predictive maintenance programs.

PCD530A102 3BHE041343R0102

Product Guarantee

ABB stands behind the ABB PCD530A102 with a comprehensive twoyear warranty covering manufacturing defects and free firmware upgrades throughout the warranty period. The company provides 24 × 7 technical support through its global service network, offering onsite assistance, remote diagnostics and training resources to ensure optimal performance. ABB’s rigorous qualitycontrol processes and extensive field experience guarantee that the ABB PCD530A102 delivers reliable, highprecision control for critical industrial applications, reinforcing customers’ confidence in longterm operational stability.
