Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 5X00070G04 |
| Manufacturer | Emerson (formerly Westinghouse) |
| Product Category | Analog Input Module |
| Input Channels | 8 channels (differential) / 16 channels (single-ended) |
| Input Ranges | ±20 mV, ±50 mV, ±100 mV |
| Resolution | 14-bit ADC |
| Accuracy | ±0.1% of full scale |
| Sampling Rate | Configurable (up to 500 Hz per channel) |
| Operating Temperature Range | -40°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (L×W×H) | 130 mm × 100 mm × 70 mm |
| Weight | 0.5 kg |
| Communication Protocol | Ovation DCS backplane |
| Certifications | CE, UL, RoHS compliant |

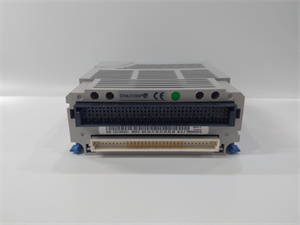

OVATION 5X00070G04
Product Introduction
The Emerson Ovation 5X00070G04 is a high-performance analog input module designed for industrial automation and control systems. It is part of the Ovation™ DCS (Distributed Control System) and is engineered to provide precise and reliable signal acquisition in demanding industrial environments. This module is ideal for applications requiring high-precision measurement and control, such as power plants, manufacturing facilities, and process control systems.
Core Advantages and Technical Highlights
High-Precision Signal Acquisition: The 5X00070G04 features 8 differential (or 16 single-ended) input channels with selectable input ranges of ±20 mV, ±50 mV, and ±100 mV. It offers a high-resolution 14-bit ADC and ±0.1% accuracy, ensuring reliable and precise signal capture.
Fast Sampling Rate: With a configurable sampling rate of up to 500 Hz per channel, the module can capture fast-changing signals in real-time, making it suitable for high-speed control applications.
Robust Design: The module is designed to operate reliably in harsh industrial conditions, with an operating temperature range of -40°C to +70°C and humidity range of 5% to 95% non-condensing. It also features channel-to-channel and system isolation to reduce noise interference.
User-Friendly Diagnostics: The 5X00070G04 includes LED status lights for per-channel health indication (OK, Fault, Activity) and self-diagnostics capabilities, such as open-circuit detection and over-range/under-range alerts.
Hot-Swappable: The module supports online replacement without interrupting system operation, ensuring minimal downtime.

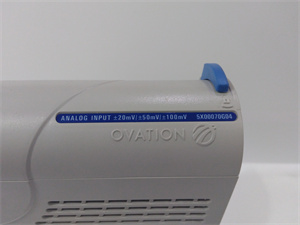

OVATION 5X00070G04
Typical Application Scenarios
The Emerson Ovation 5X00070G04 is widely used in power plants, manufacturing facilities, and process control systems. In power plants, it monitors critical parameters such as temperature and pressure, ensuring safe and efficient operation. In manufacturing facilities, the module integrates into automated production lines to optimize energy efficiency and equipment status monitoring. Its ability to handle multiple signal types and provide precise control makes it essential for high-precision process control applications.
Related Model Recommendations
-
5X00070G03: A related analog input module with similar features, suitable for applications requiring high precision.
-
1C31125G02: A digital output module with similar communication capabilities, suitable for precise control of actuators and other devices.
-
1C31124G01: A digital input/output module providing versatile control options for industrial automation.
-
1C31116G04: An analog input module with high accuracy and multiple input ranges, suitable for precise measurement.
-
1B30023H02: An I/O bus terminator module ensuring signal integrity and reliable communication in Ovation systems.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Before installing the Emerson Ovation 5X00070G04, ensure the environment meets the specified temperature and humidity requirements. Prepare the necessary tools, such as a screwdriver and multimeter, and ensure the installation area is free from dust and moisture. Follow the provided installation manual carefully to ensure proper grounding and connection of the module. Always disconnect the power source before starting the installation process to avoid electrical shock.
Maintenance Suggestions: Regularly inspect the 5X00070G04 for signs of damage or wear, such as loose connections or corrosion. Clean the module periodically to remove dust and debris, which can affect performance and longevity. If any issues are detected, such as signal errors or communication failures, consult the troubleshooting guide or contact a professional for assistance. Replace any damaged components promptly to maintain optimal performance and reliability.
Service and Guarantee Commitment
The Emerson Ovation 5X00070G04 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. The module comes with a standard one-year warranty, covering any manufacturing defects. Emerson offers 24/7 technical support to assist with installation, troubleshooting, and maintenance. Our commitment to quality and customer service ensures that the 5X00070G04 will deliver reliable performance for years to come.
