NI USB-6003

Description

Product Overview

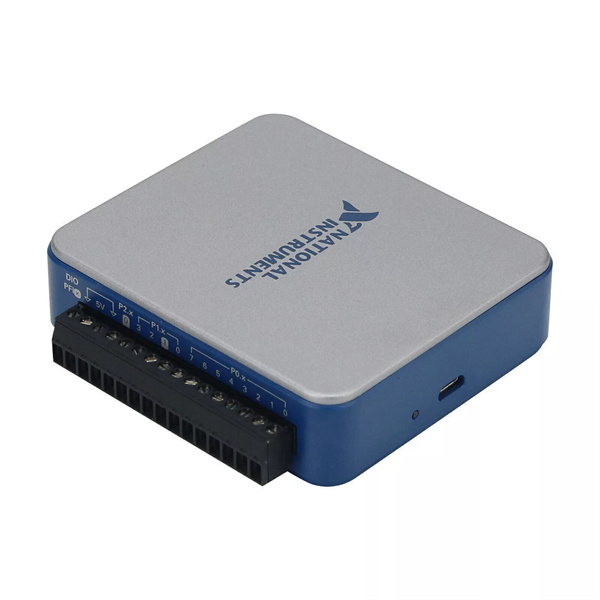

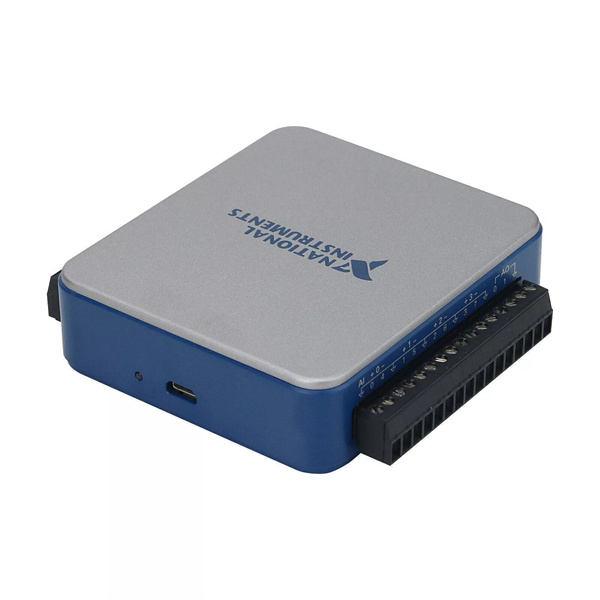

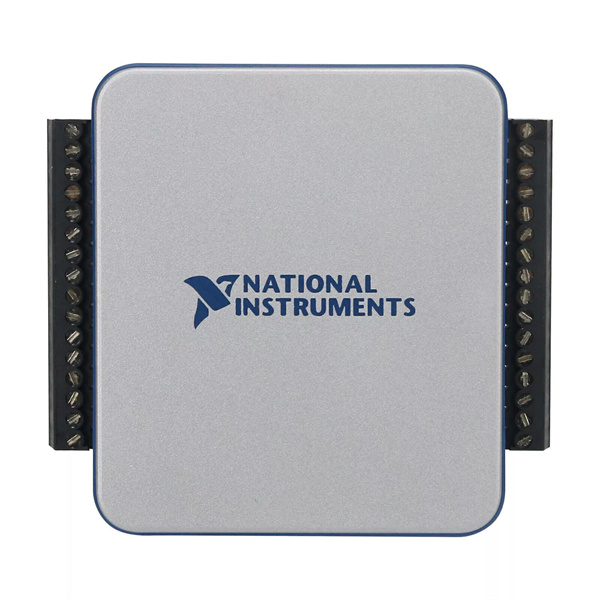

The NI USB-6003 is a low-cost, multifunction DAQ device from National Instruments. It is designed to provide basic functionality for applications such as simple data logging, portable measurements, and academic lab experiments. This device offers a combination of analog I/O, digital I/O, and a 32-bit counter, making it a versatile tool for various measurement and control tasks. With 8 single-ended (or 4 differential) analog input channels and a maximum sample rate of 100 kS/s, the NI USB-6003 ensures precise and efficient data acquisition. Additionally, it features 2 analog outputs with a maximum update rate of 5 kS/s per channel, providing flexibility in signal generation. The device’s USB full-speed interface allows for easy connectivity and data transfer, making it suitable for use with a wide range of computing platforms. Its compact size and lightweight design, weighing only 83 g (2.93 oz) without the screw terminal plugs and 105 g (3.70 oz) with them, further enhance its portability. Overall, the NI USB-6003 is an ideal choice for users seeking a reliable and affordable DAQ solution for their measurement and control needs.

Technical Specifications

Main Features and Advantages

The NI USB-6003 is a highly versatile and cost-effective DAQ device that offers a comprehensive set of features for various measurement and control applications. Its 8 single-ended (or 4 differential) analog input channels, combined with a maximum sample rate of 100 kS/s, enable precise and efficient data acquisition. The device also features 2 analog outputs with a maximum update rate of 5 kS/s per channel, providing flexibility in signal generation. With 13 digital I/O lines divided into 3 ports, the NI USB-6003 can handle a wide range of digital signal processing tasks. The built-in 32-bit counter further enhances its functionality, allowing for accurate measurement of frequency, period, and other time-based signals. The USB full-speed interface ensures reliable and fast data transfer, making it easy to connect the device to a computer. Additionally, the NI USB-6003 offers overvoltage protection of ±30 V (powered on) and ±20 V (powered off), safeguarding both the device and connected equipment from potential damage. Its compact size and lightweight design, weighing only 83 g (2.93 oz) without the screw terminal plugs and 105 g (3.70 oz) with them, make it highly portable and suitable for use in various environments. Overall, the NI USB-6003 is an excellent choice for users seeking a reliable, affordable, and versatile DAQ solution for their measurement and control needs.

Application Field

The NI USB-6003 is widely used in various fields due to its versatility and affordability. In the field of industrial automation, it can be used for process control, equipment monitoring, and data acquisition. For example, it can monitor the operating status of machinery and equipment in real-time, providing data support for production optimization and equipment maintenance. In the research and development field, the NI USB-6003 can be used for experimental data acquisition and analysis. It can collect various physical quantities such as voltage, current, and temperature, providing accurate data for scientific research and product development. In the education field, the NI USB-6003 can be used as a teaching tool for students to learn about data acquisition and control systems. Its easy-to-use interface and rich functionality make it suitable for both basic and advanced experiments. Additionally, the device’s portability and ease of use make it ideal for portable measurement applications, such as field testing and remote data logging.

Related Products

NI USB-6001: This model is a more basic version of the NI USB-6003, offering fewer analog input channels and a lower maximum sample rate. It is suitable for simpler data acquisition tasks.

NI USB-6002: This device provides more analog input channels compared to the NI USB-6003, making it ideal for applications that require a higher number of input signals.

NI USB-6210: This model is a higher-end DAQ device that offers more advanced features, such as a higher maximum sample rate and more digital I/O lines. It is suitable for more complex measurement and control applications.

NI USB-6211: This device is similar to the NI USB-6210, but it features a different combination of analog input channels and digital I/O lines, providing more flexibility in signal acquisition and processing.

NI USB-6212: This model offers a higher maximum sample rate and more digital I/O lines compared to the NI USB-6003, making it suitable for high-speed data acquisition and complex control tasks.

Installation and Maintenance

Pre-installation preparation: Before installing the NI USB-6003, ensure that the device is in good condition and that all necessary accessories are available. Check the USB port on the computer to ensure it is functioning properly. Install the latest version of the NI-DAQmx driver on the computer to ensure compatibility and optimal performance. Maintenance recommendations: To maintain the NI USB-6003, regularly check the device for any signs of wear or damage. Keep the device clean and dry, and avoid exposing it to excessive humidity or temperature changes. Periodically update the NI-DAQmx driver to ensure the device functions properly and takes advantage of any new features or improvements. If any issues arise during use, consult the user manual or contact National Instruments technical support for assistance.

Product Guarantee

The NI USB-6003 is backed by a two-year warranty, demonstrating National Instruments’ confidence in the product’s quality and reliability. National Instruments also provides comprehensive after-sales service and technical support. If any issues arise during the warranty period, customers can contact National Instruments technical support for prompt assistance. This ensures that customers can use the product with confidence, knowing that they have the support of a reputable company.
