Description
Product Overview

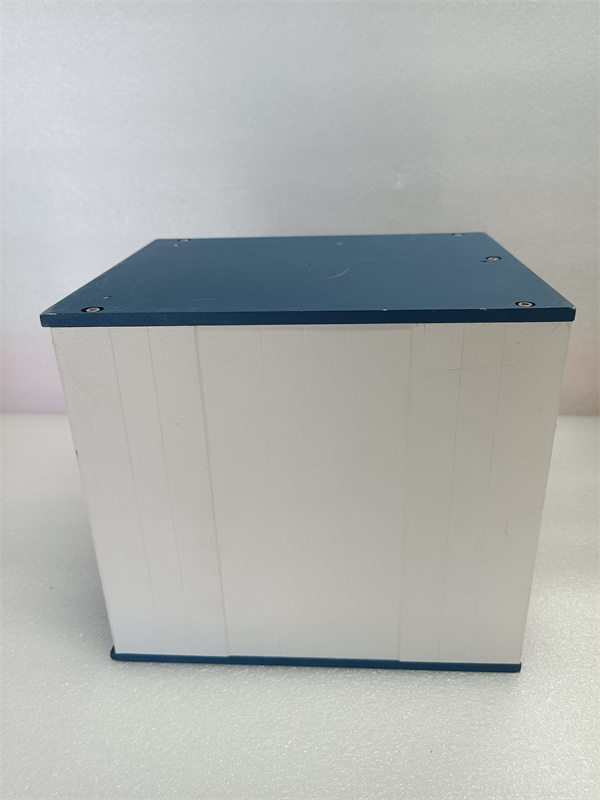

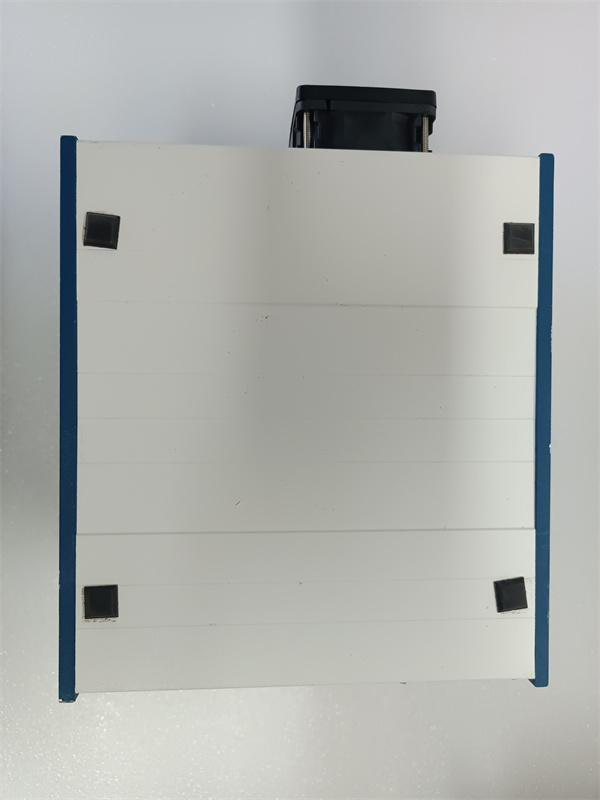

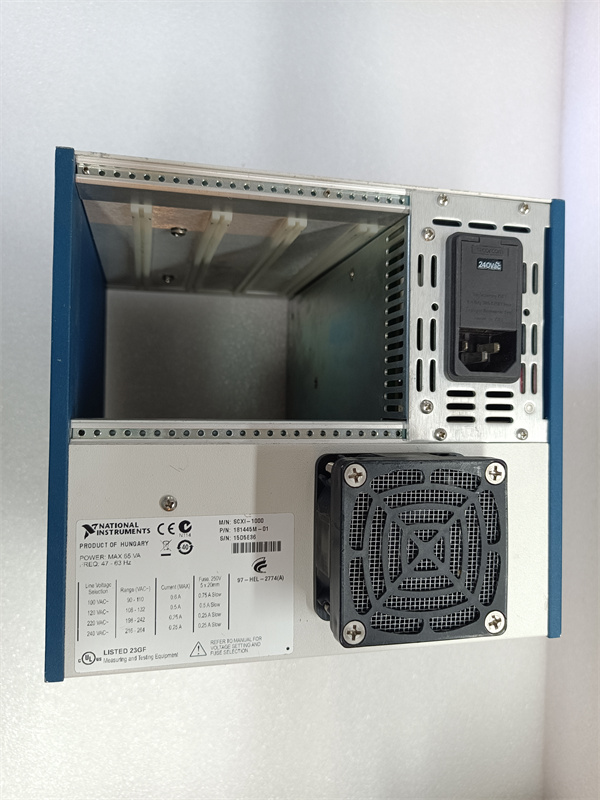

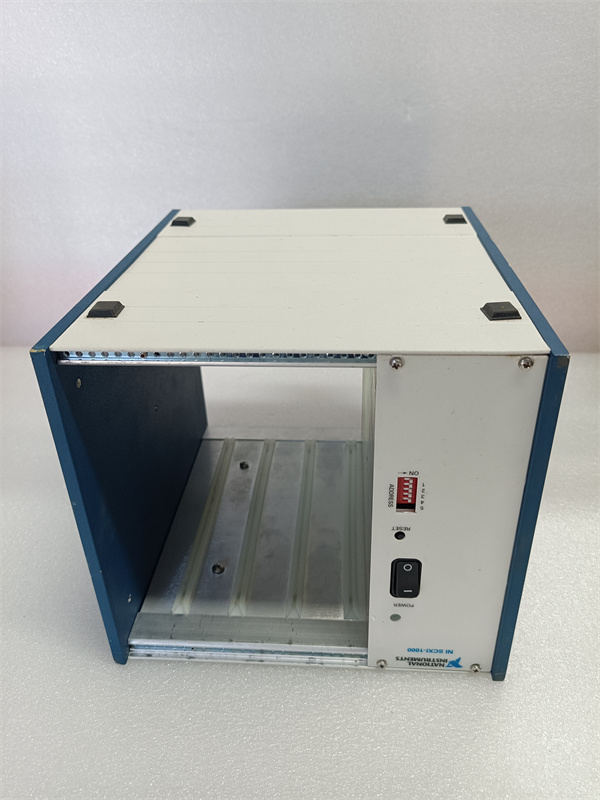

The NI SCXI-1000 is a rugged, low-noise, 4-slot chassis designed by National Instruments for use in SCXI systems. It is ideal for single-chassis or low-channel count applications and can be daisy-chained with up to eight SCXI-1000 chassis for larger systems or future expansion. This chassis powers SCXI modules and handles all timing, triggering, and signal routing between modules. It offers seven different power options to meet various national electrical requirements and can be reconfigured for use in different countries.
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | NI SCXI-1000 |
| Manufacturer | National Instruments |
| Product Type | 4-Slot AC Chassis |
| Slots | 4 |
| Power Dissipation | 7 W per slot |
| Dimensions | 9.8 in. × 7.7 in. × 7.0 in. (24.9 cm × 19.6 cm × 17.8 cm) |
| Weight | 8 lb 10 oz (3.9 kg) |
| Operating Temperature Range | 0 °C to 50 °C |
| Storage Temperature Range | -20 °C to 70 °C |
| Relative Humidity | 10% to 90% noncondensing |
| Certifications | IEC 61010-1, EN 61010-1, UL 1244, CAN/CSA-C22.2 No.61010-1 |
Main Features and Advantages
The NI SCXI-1000 chassis is designed to provide a robust and low-noise environment for SCXI modules. Its ability to handle timing, triggering, and signal routing makes it a versatile component for various measurement and control applications. The chassis can be daisy-chained with up to eight SCXI-1000 units, allowing for scalable and expandable systems. It also offers multiple power options to accommodate different national electrical standards. The NI SCXI-1000 is designed to meet stringent safety and electromagnetic compatibility standards, ensuring reliable operation in various environments.
Application Field
The NI SCXI-1000 is widely used in industrial automation, data acquisition systems, and laboratory testing environments where precise signal conditioning and control are required. It is suitable for applications ranging from simple single-chassis setups to more complex, multi-chassis systems that require high channel counts and expandability. The chassis’s low-noise design and robust construction make it ideal for environments where signal integrity and reliability are critical.
Related Products
SCXI-1104C: A 32-channel differential voltage input module that can be used with the NI SCXI-1000 for signal conditioning.
SCXI-1163R: A 32-channel relay switch module that can be integrated with the NI SCXI-1000 for high-voltage signal switching.
SCXI-1326: A shielded terminal block that provides easy signal attachment to SCXI modules, including those installed in the NI SCXI-1000.
PXI-4021: A switch controller that can be used with the NI SCXI-1000 for enhanced control and automation.
LabVIEW: A graphical programming environment that can be used to control the NI SCXI-1000 and develop data acquisition and control applications.
Installation and Maintenance
Pre-installation preparation: Before installing the NI SCXI-1000, ensure you have the chassis, SCXI modules, and appropriate cables. Turn off the power and unplug the chassis. Connect the modules to the chassis and ensure all connections are secure. Maintenance recommendations: Regularly inspect the connections for wear or damage. Clean the chassis using a soft, non-metallic brush to remove dust and ensure the device is completely dry before reusing it. Store the chassis in a dry place with relative humidity between 10% and 90% noncondensing.
Product Guarantee
The NI SCXI-1000 is backed by a three-year warranty from National Instruments, ensuring the quality and reliability of the product. National Instruments also provides comprehensive after-sales service and technical support to assist customers with any issues or inquiries related to the product. This ensures that customers can use the chassis with confidence, knowing that they have access to reliable support and service from a reputable company.
