Description
Product Overview
The NI PXIe-8135 is a high-performance embedded controller designed for PXI Express systems, offering robust processing capabilities and extensive I/O options. It features an Intel Core i7 quad-core processor with a base frequency of 2.3 GHz and a single-core Turbo mode frequency of 3.3 GHz. The controller is equipped with dual-channel DDR3 RAM, supporting up to 16 GB of memory, and a 250 GB or larger Serial ATA hard drive. It also includes a variety of I/O ports, such as two DisplayPort video ports, one RS-232 serial port, a parallel port, four high-speed USB 2.0 ports, two high-speed USB 3.0 ports, a PCI-based GPIB controller, and two Gigabit Ethernet connectors. This controller is ideal for applications requiring high-speed data processing and precise synchronization, such as RF, modular instrumentation, and data acquisition.
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | NI PXIe-8135 |
| Manufacturer | National Instruments |
| Product Type | PXI Express Controller |
| Processor | Intel Core i7 3610 QE |
| CPU Frequency | 2.3 GHz (base), 3.3 GHz (single-core Turbo mode) |
| Cache | 256 KB L2 cache per core |
| RAM | Dual-channel DDR3, 4 GB standard, 16 GB maximum |
| Storage | 250 GB or larger Serial ATA hard drive |
| Video | 2 DisplayPort ports |
| Ethernet | 2 Gigabit Ethernet ports (10/100/1000BASE-TX) |
| USB 2.0 Ports | 4 |
| USB 3.0 Ports | 2 |
| GPIB | Yes |
| Serial Port | 1 RS-232 |
| Parallel Port | 1 |
| Operating System | Windows 7 Professional, Windows XP Professional SP3 for Embedded Systems |
| Dimensions | Four-wide 3U PXI Express module |
| Weight | 1.30 kg (2.87 lb) typical |
| Operating Temperature Range | 5 °C to 50 °C (standard), 0 °C to 55 °C (extended) |
| Storage Temperature Range | -40 °C to 65 °C (standard), -40 °C to 71 °C (extended) |
| Relative Humidity | 10% to 90% noncondensing |

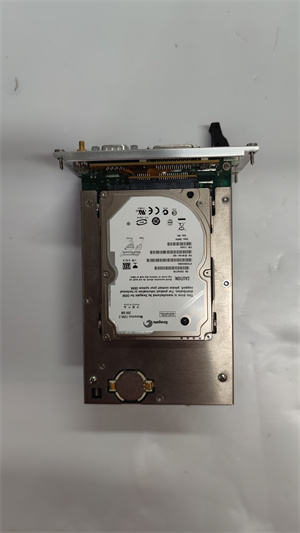

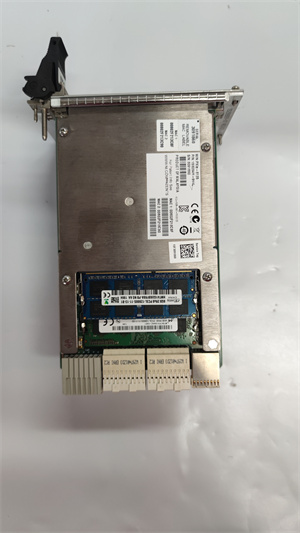

NI PXIE-8135
Main Features and Advantages
The NI PXIe-8135 offers several key features and advantages that make it a reliable choice for high-speed digital signal handling applications. Its quad-core processor provides robust processing power, essential for handling processor-intensive tasks. The controller’s comprehensive set of peripheral I/O ports ensures versatile connectivity options, making it suitable for a wide range of applications. The user-accessible RAM allows for memory upgrades, enhancing the controller’s flexibility and adaptability. The integrated 100 MHz reference clock and three differential star trigger buses provide precise synchronization and timing, crucial for logging and instrumentation systems. Additionally, the NI PXIe-8135 is designed to meet stringent safety and electromagnetic compatibility standards, ensuring reliable operation in various environments.
Application Field
The NI PXIe-8135 is widely used in various industrial and research applications where precise digital signal handling is required. In industrial automation, it can be used for monitoring and controlling digital equipment, ensuring reliable operation and safety. In research and development, the controller facilitates accurate generation and analysis of digital signal curves, providing valuable data for scientific research and product development. Its compatibility with various digital systems and high-speed data transfer capabilities make it suitable for applications ranging from simple data logging to advanced process control.

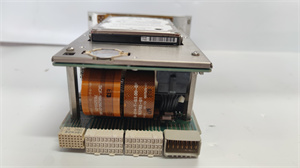

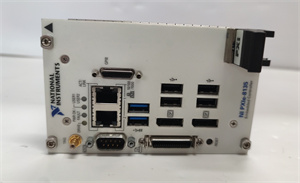

NI PXIE-8135
Related Products
NI PXIe-1085: A compatible PXI Express chassis that can be used with the NI PXIe-8135 for high-bandwidth data transfer and control.
NI PXIe-6544: A high-speed digital I/O module that can be used with the NI PXIe-8135 for precise signal generation and analysis.
LabVIEW: A graphical programming environment that can be used to control the NI PXIe-8135 and develop data acquisition and control applications.
NI-DAQmx: Software for data acquisition and control, providing programming interfaces for LabVIEW, LabWindows/CVI, and Measurement Studio.
Installation and Maintenance
Pre-installation preparation: Before installing the NI PXIe-8135, ensure you have the controller, PXI Express chassis, and appropriate cables. Turn off the power and unplug the chassis. Install the controller in the chassis and secure it with the provided screws. Connect the necessary cables and ensure all connections are secure. Maintenance recommendations: Regularly inspect the connections for wear or damage. Clean the controller using a soft, non-metallic brush to remove dust and ensure the device is completely dry before reusing it. Store the controller in a dry place with relative humidity between 10% and 90% noncondensing.
Product Guarantee
The NI PXIe-8135 is backed by a three-year warranty from National Instruments, ensuring the quality and reliability of the product. National Instruments also provides comprehensive after-sales service and technical support to assist customers with any issues or inquiries related to the product. This ensures that customers can use the controller with confidence, knowing that they have access to reliable support and service from a reputable company.
