Description
Product Overview
The NI PXIe-4142 is a high-performance, four-channel source measure unit (SMU) designed for precise electrical measurement and sourcing within a PXIe (PCI eXtensions for Instrumentation Express) system. This SMU is tailored for applications that require high accuracy, flexibility, and speed in both sourcing and measurement. It features four-quadrant operation, allowing for sourcing and sinking of voltage and current, and integrated remote (4-wire) sensing for accurate measurements.
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | NI PXIe-4142 |
| Manufacturer | National Instruments |
| Product Type | PXI Source Measure Unit |
| SMU Channels | 4 |
| Voltage Range | ±24 V |
| Current Range | ±150 mA |
| Sampling Rate | Up to 600 kS/s |
| Source-Measure Rate | Up to 15 kS/s |
| Voltage Measurement Sensitivity | 200 µV |
| Current Measurement Sensitivity | 100 pA |
| Interface | PXIe x4 (Gen2) |
| Operating Temperature Range | 0 °C to 55 °C |
| Storage Temperature Range | -40 °C to 70 °C |
| Relative Humidity | 10% to 70% noncondensing |
| Dimensions | 0.8 x 5.1 x 8.5 in. (2.0 cm x 13.0 cm x 21.6 cm) |
| Weight | 14.53 oz. (412 g) |

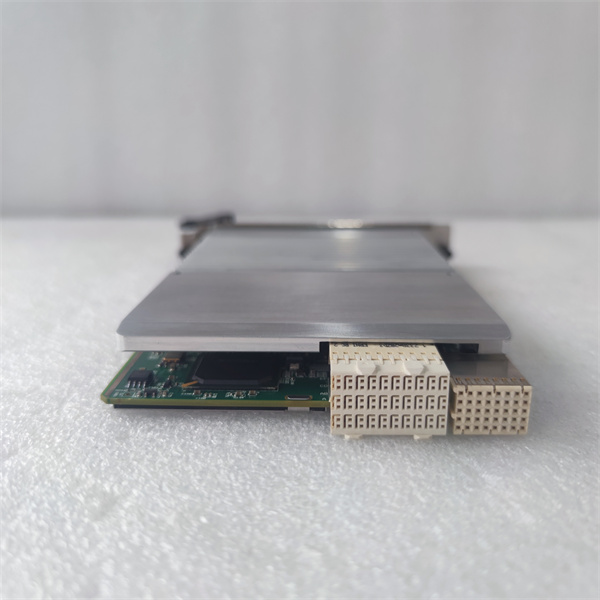

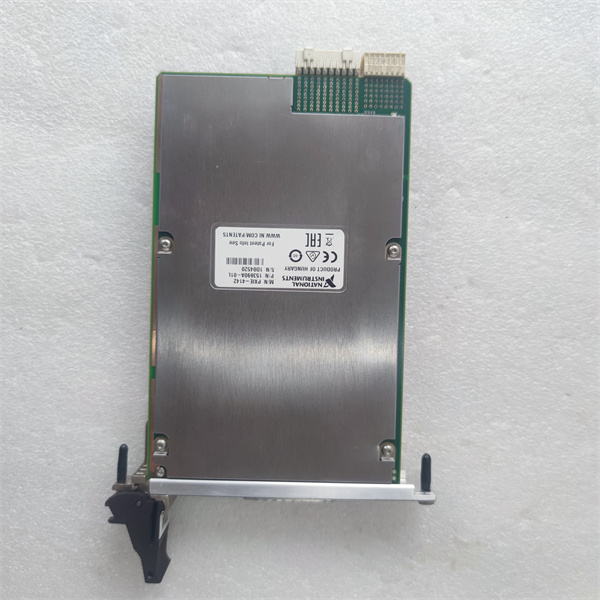

NI PXIE-4142
Main Features and Advantages
The NI PXIe-4142 offers several key features and advantages that make it a reliable choice for high-speed digital signal handling applications. Its four-channel, four-quadrant SMU design allows for versatile sourcing and measurement capabilities. The module’s high sampling rate of up to 600 kS/s and maximum source-measure rate of 15 kS/s enable fast and precise measurements, crucial for characterizing devices under test (DUT). The NI PXIe-4142 also features integrated remote (4-wire) sensing capabilities, ensuring accurate measurements by compensating for lead resistance.
Application Field
The NI PXIe-4142 is widely used in various industrial and research applications where precise voltage and current sourcing and measurement are required. In semiconductor testing, it can be used for characterizing high pin-count devices, ensuring reliable operation and safety. In research and development, the SMU facilitates accurate generation and analysis of voltage and current curves, providing valuable data for scientific research and product development. Its compatibility with various digital systems and high-speed data transfer capabilities make it suitable for applications ranging from simple data logging to advanced process control.

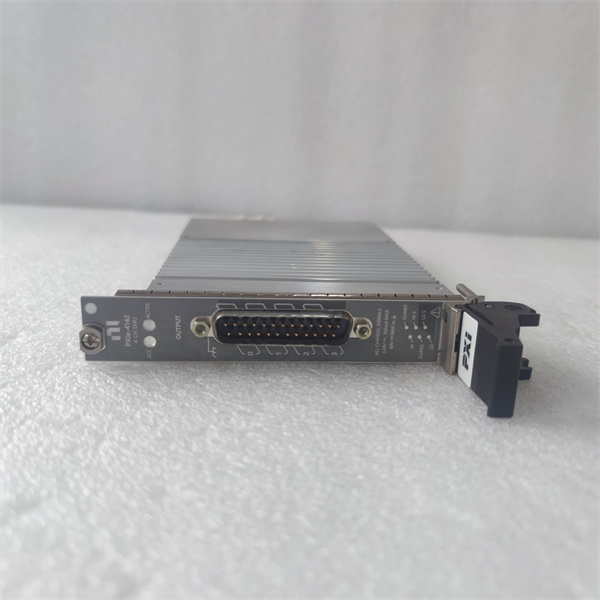

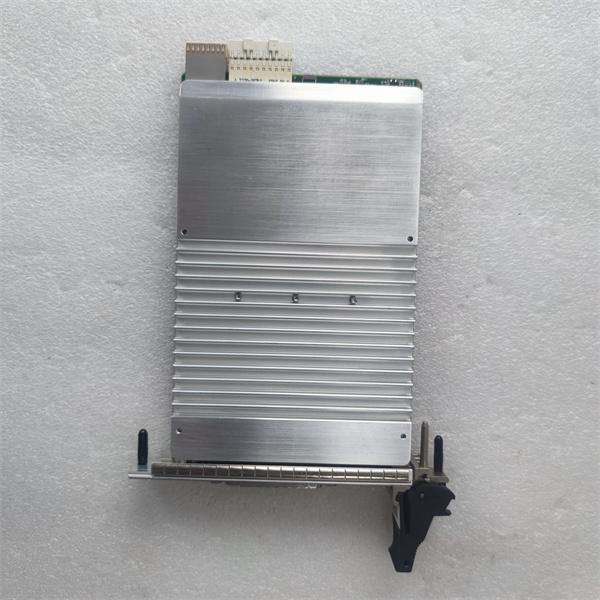

NI PXIE-4142
Related Products
NI PXIe-1085: A compatible PXI Express chassis that can be used with the NI PXIe-4142 for high-bandwidth data transfer and control.
NI PXIe-6544: A high-speed digital I/O module that can be used with the NI PXIe-4142 for precise signal generation and analysis.
LabVIEW: A graphical programming environment that can be used to control the NI PXIe-4142 and develop data acquisition and control applications.
NI-DCPower: Software for power supplies and SMUs, providing programming interfaces for LabVIEW, LabWindows/CVI, and Measurement Studio.
Installation and Maintenance
Pre-installation preparation: Before installing the NI PXIe-4142, ensure you have the module, PXI Express chassis, and appropriate cables. Turn off the power and unplug the chassis. Install the module in the chassis and secure it with the provided screws. Connect the necessary cables and ensure all connections are secure. Maintenance recommendations: Regularly inspect the connections for wear or damage. Clean the module using a soft, non-metallic brush to remove dust and ensure the device is completely dry before reusing it. Store the module in a dry place with relative humidity between 10% and 70% noncondensing.
