Description
Product Overview
The NI PCIe-1427 is a high-performance Camera Link image acquisition device designed for scientific and machine vision applications that require high-resolution digital images and simple cabling。It supports base-configuration Camera Link-compatible cameras and offers real-time digital image acquisition with direct system memory transfer。This versatile device features onboard programmable region of interest, image binarization, and isolated digital I/O for easy integration with any base-configuration Camera Link camera。
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | NI PCIe-1427 |
| Manufacturer | National Instruments |
| Product Type | Frame Grabber Device |
| Camera Interface | Camera Link |
| Camera Compatibility | Sony, Basler, and others |
| Pixel Clock Frequency Range | 20 to 80 MHz |
| Onboard Memory | 0 |
| External Trigger I/O Lines | 4 (ISO/TTL) |
| I/O Connector | 15-pin D-SUB |
| Bandwidth | 225 MB/s |
| Power Requirements | +3.3 VDC, +12 VDC — 1.5 A, 250 mA |
| Dimensions | 4.4 in. by 6.6 in. |
| Weight | 0.30 lb. |
| Software Driver | Vision Acquisition |

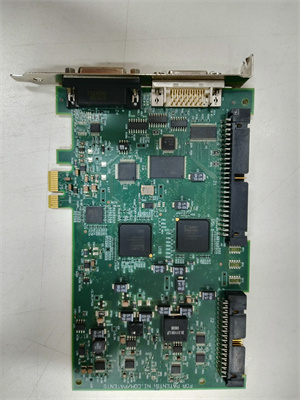

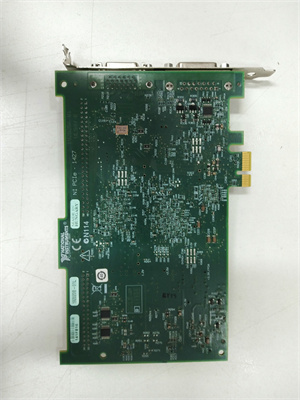

NI PCIE-1427
Main Features and Advantages
High-Speed Data Transfer: Supports pixel clock frequencies up to 80 MHz, enabling high-speed image acquisition。
Direct System Memory Transfer: Allows for efficient data handling without the need for onboard memory。
Programmable Region of Interest: Enhances flexibility in image acquisition。
Image Binarization: Provides additional image processing capabilities。
Isolated Digital I/O: Ensures reliable operation in various environments。

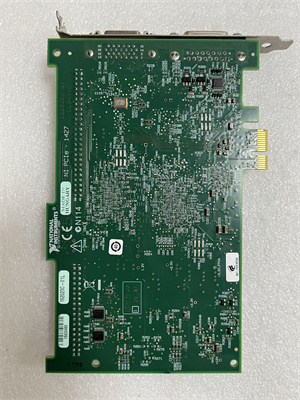

NI PCIE-1427
Application Field
The NI PCIe-1427 is ideal for applications in scientific research, industrial automation, and machine vision where high-resolution and high-speed image acquisition are critical。It is particularly suited for environments that require precise control and synchronization of imaging processes。
Related Products
NI Vision Acquisition Software: Includes the NI-IMAQ driver software for easy control and configuration。
NI Camera Link I/O Extension Board: Provides additional triggering and isolated digital I/O options。
LabVIEW: A graphical programming environment for developing custom applications。
Installation and Maintenance
Pre-installation preparation: Ensure you have the NI PCIe-1427 device, a compatible Camera Link camera, an MDR 26-pin Camera Link cable, and a computer with an available PCIe slot running Microsoft Windows。Install the NI Vision Acquisition Software, which includes the NI-IMAQ driver software。
Maintenance recommendations: Regularly inspect the connections for wear or damage. Clean the device using a soft, non-metallic brush to remove dust and ensure the device is completely dry before reusing it。
Product Guarantee
The NI PCIe-1427 is backed by a three-year warranty from National Instruments, ensuring the quality and reliability of the product。National Instruments also provides comprehensive after-sales service and technical support to assist customers with any issues or inquiries related to the product。
