Description
Product Overview
The NI PCI-6230 is a multifunction data acquisition (DAQ) device from the M Series by National Instruments. It is designed for applications requiring high accuracy and fast sample rates. This device offers a combination of analog and digital I/O capabilities, making it suitable for a wide range of industrial and research applications。
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | NI PCI-6230 |
| Manufacturer | National Instruments |
| Product Type | Multifunction DAQ Board |
| Analog Input Channels | 8 single-ended or 4 differential (16-bit, 250 kS/s) |
| Analog Output Channels | 4 (16-bit, 500 kS/s) |
| Digital I/O Lines | 10 (6 inputs, 4 outputs) |
| Counter/Timers | 2 (32-bit, 80 MHz) |
| I/O Connector | 37-pin D-SUB |
| Power Requirements | +5 V, +12 V — 0.5 A, 20 mA |
| Dimensions | 3.8 in. × 6.1 in |
| Weight | 0.24 lb. |
| Operating Temperature Range | 0 °C to 55 °C |
| Storage Temperature Range | -20 °C to 70 °C |
| Relative Humidity | 10% to 90% noncondensing |
| Warranty | Three Year Warranty |

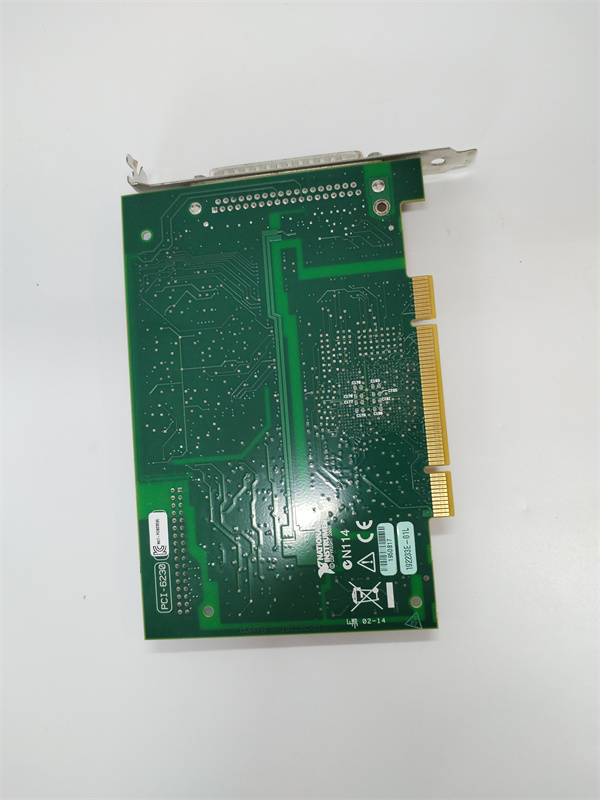

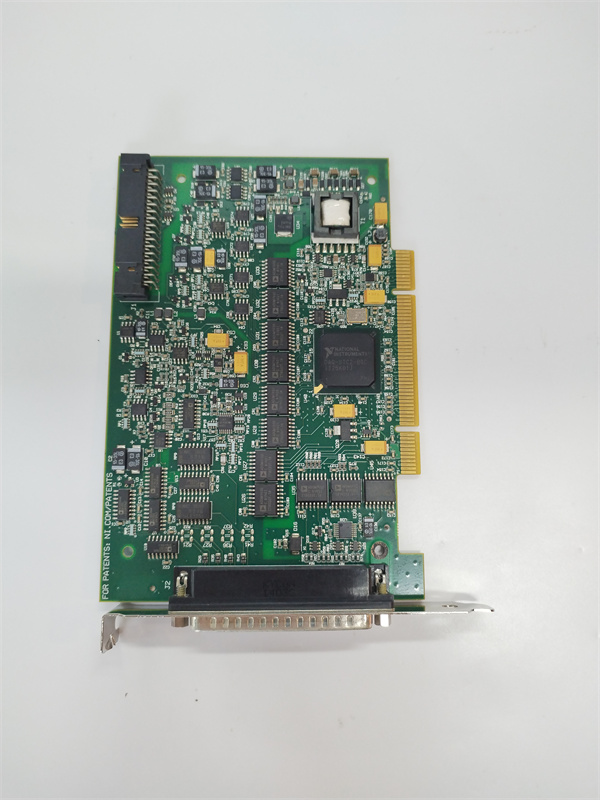

NI PCI-6230
Main Features and Advantages
High-Speed Data Acquisition: Capable of acquiring data at up to 250 kS/s per channel。
High-Precision Measurements: 16-bit ADC resolution ensures accurate analog input measurements。
Flexible Channel Configuration: Supports both differential and single-ended analog input configurations。
Analog Output Capability: Features four 16-bit DAC channels with a maximum update rate of 500 kS/s。
Digital I/O and Counters: Equipped with 10 digital I/O lines and two 32-bit counters for additional control and measurement capabilities。
Overvoltage Protection: Provides ±25 V overvoltage protection for up to four AI pins when the device is on。
Wide Input Range: Supports input ranges from ±0.1 V to ±10 V。
Low Crosstalk: Ensures minimal interference between channels with crosstalk levels as low as -95 dB for non-adjacent channels。

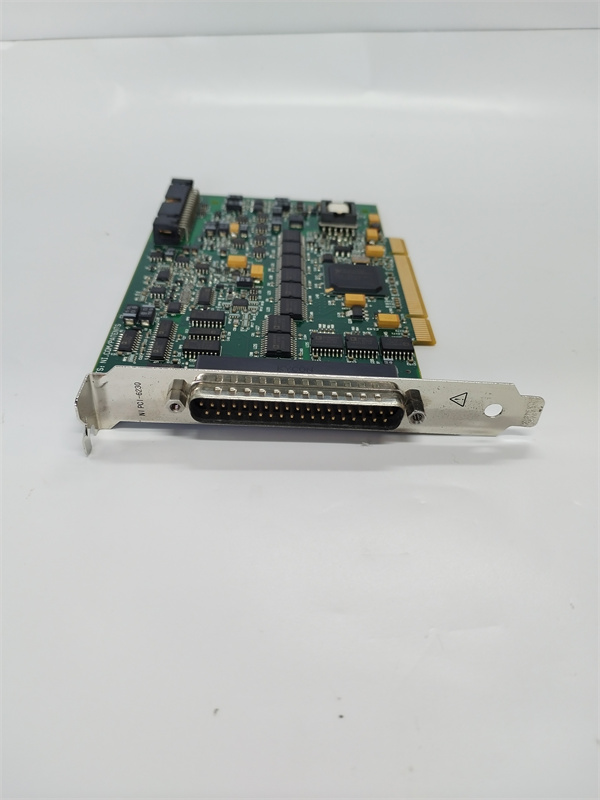

NI PCI-6230
Application Field
The NI PCI-6230 is widely used in various fields due to its versatility and high performance. It is ideal for applications in:
Scientific Research: For precise measurement and control in laboratory settings。
Industrial Automation: For real-time monitoring and control of industrial processes。
Medical Diagnostics: For acquiring physiological signals such as ECG and EEG。
Environmental Monitoring: For measuring environmental parameters like air quality and water quality。
Mechanical Manufacturing: For building machine vision and motion control systems。
Related Products
NI-DAQmx: Software for data acquisition and control, providing programming interfaces for LabVIEW, LabWindows/CVI, and Measurement Studio。
LabVIEW: A graphical programming environment for developing custom applications。
SCC or SCXI Signal Conditioning Modules: For high-voltage and sensor measurements。
Installation and Maintenance
Pre-installation preparation: Ensure you have the NI PCI-6230 device, a compatible PCI slot, and appropriate cables. Turn off the power and unplug the system. Install the device in the PCI slot and secure it with the provided screws. Connect the necessary cables and ensure all connections are secure。
Maintenance recommendations: Regularly inspect the connections for wear or damage. Clean the device using a soft, non-metallic brush to remove dust and ensure the device is completely dry before reusing it. Store the device in a dry place with relative humidity between 10% and 90% noncondensing。
Product Guarantee
The NI PCI-6230 is backed by a three-year warranty from National Instruments, ensuring the quality and reliability of the product。
