Description
Product Overview
The NI PCI-6110 is a multifunction I/O device designed for a wide range of measurement and control applications. It features four differential analog input channels with a 12-bit resolution and a maximum sampling rate of 5 MS/s per channel. The device also includes two 16-bit analog output channels with a maximum update rate of 4 MS/s for single-channel operation. Additionally, it offers eight digital I/O lines and two 24-bit counters/timers for precise control and measurement。
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | NI PCI-6110 |
| Manufacturer | National Instruments |
| Product Type | Multifunction I/O Device |
| Analog Input Channels | 4 differential (12-bit, 5 MS/s) |
| Analog Output Channels | 2 (16-bit, 4 MS/s) |
| Digital I/O Lines | 8 (5 V/TTL compatible) |
| Counter/Timers | 2 (24-bit, 20 MHz) |
| I/O Connector | 68-pin male SCSI II type |
| Power Requirements | +5 VDC – 2.5 A |
| Dimensions | 12.3 in. × 4.2 in. |
| Operating Temperature Range | 0 °C to 45 °C |
| Storage Temperature Range | -20 °C to 70 °C |
| Relative Humidity | 5% to 90% noncondensing |
| Software | NI-DAQmx, Measurement & Automation Explorer configuration utility, VI Logger Lite data-logging software |
| Warranty | Three Year Warranty |

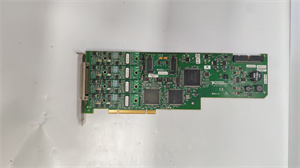

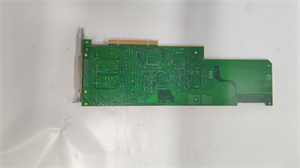

NI PCI-6110
Main Features and Advantages
High-Speed Data Acquisition: Capable of acquiring data at up to 5 MS/s per channel。
High-Precision Measurements: 12-bit ADC resolution ensures accurate analog input measurements。
Analog Output Capability: Features two 16-bit DAC channels with a maximum update rate of 4 MS/s for single-channel operation。
Digital I/O and Counters: Equipped with eight digital I/O lines and two 24-bit counters for additional control and measurement capabilities。
Overvoltage Protection: Provides ±42 V overvoltage protection。
Wide Input Range: Supports input ranges from -10 V to +10 V。
Low Crosstalk: Ensures minimal interference between channels。

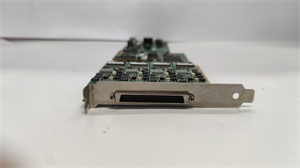

NI PCI-6110
Application Field
The NI PCI-6110 is well-suited for applications in various fields, including:
Radar, Sonar, and Ultrasound Technologies: For high-speed data acquisition and control。
Industrial Automation: For real-time monitoring and control of industrial processes。
Research Projects: For precise measurement and control in laboratory settings。
Lab Automation and Design Verification: For automated testing and verification of designs。
Related Products
NI-DAQmx: Software for data acquisition and control, providing programming interfaces for LabVIEW, LabWindows/CVI, and Measurement Studio。
LabVIEW: A graphical programming environment for developing custom applications。
SCB-68A: A noise-rejecting, shielded I/O connector block that can be used with the NI PCI-6110。
Installation and Maintenance
Pre-installation preparation: Ensure you have the NI PCI-6110 device, a compatible PCI slot, and appropriate cables. Turn off the power and unplug the system. Install the device in the PCI slot and secure it with the provided screws. Connect the necessary cables and ensure all connections are secure。
Maintenance recommendations: Regularly inspect the connections for wear or damage. Clean the device using a soft, non-metallic brush to remove dust and ensure the device is completely dry before reusing it. Store the device in a dry place with relative humidity between 5% and 90% noncondensing。
Product Guarantee
The NI PCI-6110 is backed by a three-year warranty from National Instruments, ensuring the quality and reliability of the product。
