Description
Product Overview
The NI PCI-6071E is a high-performance multifunction data acquisition (DAQ) device designed for precision and versatility in industrial automation, research, and design verification/test applications。It features 64 single-ended or 32 differential analog input channels with 12-bit resolution and a maximum sampling rate of 1.25 MS/s per channel。The device also includes two 12-bit analog output channels with a maximum update rate of 1 MS/s for single-channel operation。Additionally, it offers eight digital I/O lines and two 24-bit counters/timers for precise control and measurement。
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | NI PCI-6071E |
| Manufacturer | National Instruments |
| Product Type | Multifunction DAQ Board |
| Analog Input Channels | 64 single-ended or 32 differential |
| ADC Resolution | 12 bits |
| Maximum Sample Rate | 1.25 MS/s per channel |
| Analog Output Channels | 2 |
| DAC Resolution | 12 bits |
| Maximum Update Rate | 1 MS/s (single channel) |
| Digital I/O Lines | 8 (5 V/TTL compatible) |
| Counter/Timers | 2 (24-bit, 20 MHz) |
| I/O Connector | 100-pin female 0.050 D-type |
| Power Requirements | +5 VDC – 1.1 A |
| Dimensions | 6.9 in. × 4.2 in. |
| Weight | 4.1 oz. |
| Operating Temperature Range | 0 °C to 55 °C |
| Storage Temperature Range | -20 °C to 70 °C |
| Relative Humidity | 10% to 90% noncondensing |
| Warranty | Three Year Warranty |

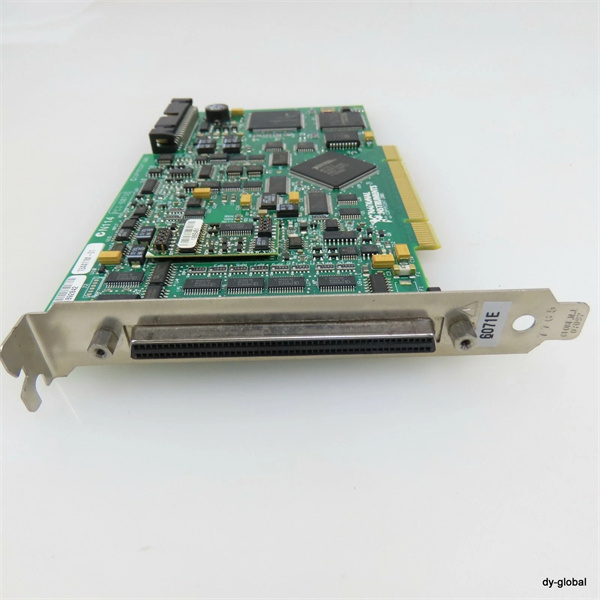

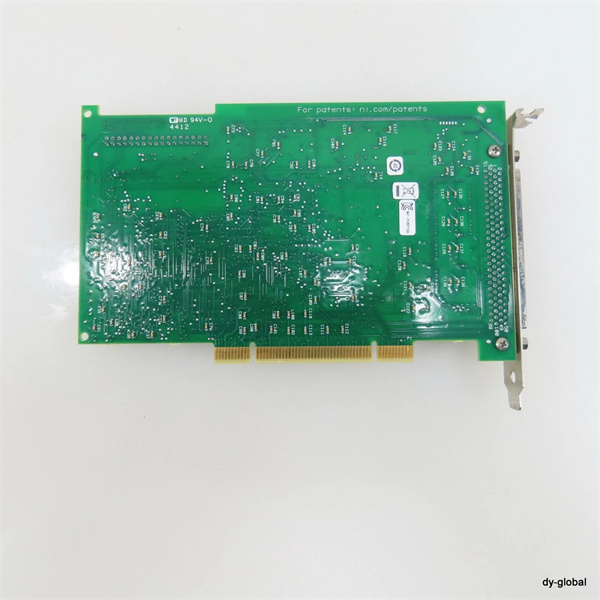

NI PCI-6071E
Main Features and Advantages
High-Speed Data Acquisition: Capable of acquiring data at up to 1.25 MS/s per channel。
High-Precision Measurements: 12-bit ADC resolution ensures accurate analog input measurements。
Analog Output Capability: Features two 12-bit DAC channels with a maximum update rate of 1 MS/s for single-channel operation。
Digital I/O and Counters: Equipped with eight digital I/O lines and two 24-bit counters for additional control and measurement capabilities。
Overvoltage Protection: Provides ±25 V overvoltage protection when powered on and ±15 V when powered off。
Wide Input Range: Supports input ranges from ±10 V to ±0.2 V。
Low Crosstalk: Ensures minimal interference between channels。
FIFO Buffer: 512 sample FIFO buffer for efficient data handling。

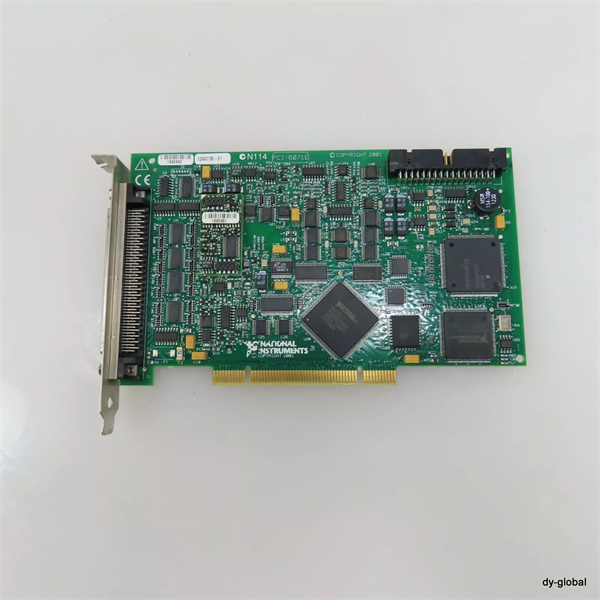

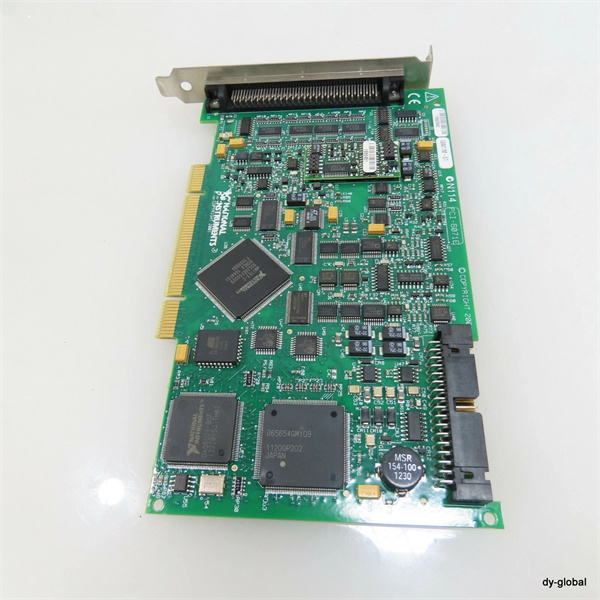

NI PCI-6071E
Application Field
The NI PCI-6071E is well-suited for applications in various fields, including:
Industrial Automation: For real-time monitoring and control of industrial processes。
Research Projects: For precise measurement and control in laboratory settings。
Design Verification and Test: For automated testing and verification of designs。
Power Industry: For high-speed data acquisition in power-related applications。
Petrochemical: For precise control and monitoring in petrochemical processes。
Related Products
NI-DAQmx: Software for data acquisition and control, providing programming interfaces for LabVIEW, LabWindows/CVI, and Measurement Studio。
LabVIEW: A graphical programming environment for developing custom applications。
SCXI Systems: For acquiring more than 3,000 analog signals from different sources。
Installation and Maintenance
Pre-installation preparation: Ensure you have the NI PCI-6071E device, a compatible PCI slot, and appropriate cables. Turn off the power and unplug the system. Install the device in the PCI slot and secure it with the provided screws. Connect the necessary cables and ensure all connections are secure。
Maintenance recommendations: Regularly inspect the connections for wear or damage. Clean the device using a soft, non-metallic brush to remove dust and ensure the device is completely dry before reusing it. Store the device in a dry place with relative humidity between 10% and 90% noncondensing。
Product Guarantee
The NI PCI-6071E is backed by a three-year warranty from National Instruments, ensuring the quality and reliability of the product。
